The entire Studio Economik's website is now priced in Canadian Dollars only.

$1255.00

Save 20.1%, MSRP $1570.00
Free shipping in Canada. Conditions

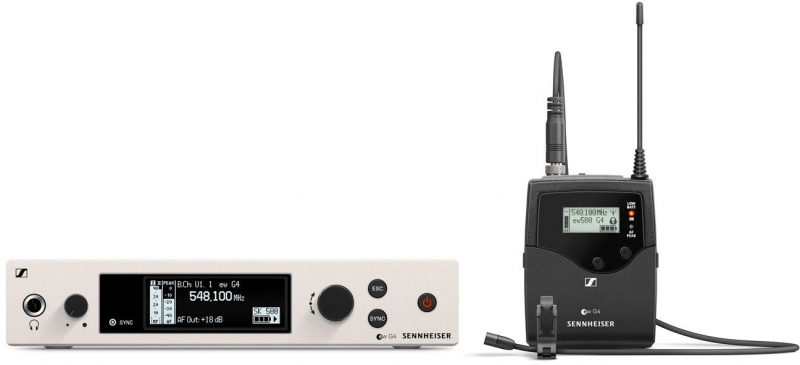

The pro's choice. Renowned sound engineers rely on ew 500 G4's flexibility, especially when handling multi channel settings on the world's music stages.



Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi channel setups.
The pro's choice for impressive presentations. The professional MKE 2 Gold omni-directional condenser microphone resists the test of time on any big live stage and ensures a high speech intelligibility on any stage, indoors and outdoors.

Features

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
  • Specifications

    EM 300-500 G4
    Frequency Range: Aw+: 470-558 MHz
    Dimensions: Approx. 202 x 212 x 43 mm
    Compander: Sennheiser HDX
    THD, total harmonic distortion: 0.9 %
    Weight: Approx. 980 g
    Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
    Signal-to-noise ratio: 115 dBA
    Switching bandwidth: up to 88 MHz
    Peak deviation: ±48 kHz
    Nominal deviation: ±24 kHz
    Modulation: Wideband FM
    Power supply: 12 V DC
    Antenna connector: 2 BNC sockets
    Current consumption: 350 mA
    Adjacent channel rejection: Typically 75 dB
    Intermodulation attenuation: Typically 70 dB

    Receiving frequency
  • Max. 3520 receiving frequencies
  • adjustable in 25 kHz steps
  • 20 frequency banks
  • each with up to 32 factory-preset channels
  • no intermodulation
  • 6 frequency banks with up to 32 programmable channels

  • RF sensitivity: < 2.5 V for 52 dBA eff S/N
    Squelch: 5 to 25 dBV in steps of 2 dB

    Equalizer
  • Preset 1: Flat
  • Preset 2: Low Cut (-3 dB at 180 Hz)
  • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  • Preset 4: High Boost (+6 dB at 10 kHz)

  • Temperature Range: -10 °C to +55 °C
    Receiver Principle: True diversity
    Blocking: 75 dB

    SK 500 G4
    Frequency Range: Aw+: 470-558 MHz
    Dimensions: Approx. 82 x 64 x 24 mm
    Compander: Sennheiser HDX
    THD, total harmonic distortion: 0.9 %
    Weight: (incl. batteries) approx. 160 g
    Signal-to-noise ratio: 115 dBA

    RF output power (switchable)
  • Low: typ. 10 mW
  • Standard: typ. 30 mW
  • High: typ. 50 mW

  • Switching bandwidth: up to 88 MHz
    Peak deviation: ±48 kHz
    Nominal deviation: ±24 kHz
    Operating time: Typically 8 h
    Modulation: Wideband FM
    Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

    Current consumption
  • at nominal voltage: typ. 180 mA
  • with transmitter switched off: 25 µA

  • Input impedance: 40 k, unbalanced / 1 M
    Max. Input voltage: 3 Veff
    Powering: 3 V battery / 2.4 V rechargeable battery

    Transmission frequency
  • Max. 3520 frequencies
  • Adjustable in 25 kHz steps
  • 20 frequency banks
  • each with up to 32 factory-preset channels
  • No intermodulation
  • 6 frequency banks with up to 32 programmable channels

  • AF frequency response: Mic: 80 - 18,000 Hz, Line: 25 - 18,000 Hz
    Temperature Range: -10 °C to +55 °C
    Frequency stability: ±15 ppm

    MKE 2
    Connector: 3.5 mm jack
    Frequency response: 20 to 20.000 Hz ± 3 dB
    Max. sound pressure level: 142 dB
    Cable length: approx. 1.60 m
    Transducer principle: pre-polarized condensor microphone
    Pick-up pattern: omni-directional
    Sensitivity in free field, no load (1kHz): 5 mV/Pa, ± 3 dB
    Equivalent noise level: 26 dB
    Equivalent noise level weighted as per CCIR 468-3: 39 dB

    Reviews

    $1255.00

    Save 20.1%, MSRP $1570.00
    Free shipping in Canada. Conditions
