Sennheiser EW-DX 835-S SET (Q1-9: 470.2 - 550 MHz)
UPC/EAN #615104360747
MPN #509300
$3000.00
Save 15.5%, MSRP $3549.00
Digital wireless handheld set with a dual channel receiver and two handheld transmitters with 835 capsules and batteries
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options live productions benefit from a network-ready system that is designed to integrate seamlessly. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser?s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.
Truly simplified workflow
EW-DX takes the complexities out of wireless audio by employing sophisticated tools that streamline the setup and monitoring process. With the press of a button, Auto Scan automatically assigns channels using an equidistant tuning grid that allows you to pack more channels more reliably, without problematic intermodulation interference. Take control of the system from your mobile device via the Sennheiser Smart Assist app or utilize advanced software options like Sennheiser Control Cockpit and Wireless Systems Manager (WSM) for a detailed system view in complex, networked environments.
Ready to scale, ready to deliver
Evolution Wireless Digital is a system that evolves with you. Choose from multiple hardware options, including 2-channel half-rack (9,5") or 4-channel full-rack (19") receivers to right-size your needs today, while keeping expansion open for tomorrow. Dante network audio, Ethernet control ports, and AES-256 encryption allow EW-DX to be securely transmitted, allowing systems to be managed and flex as needs change. Activate Link Density Mode to pack even more channels in a dedicated space and take full advantage of interchangeable series components across the Evolution Wireless Digital line. A wide range of accessories to manage power and signal distribution give you the options you need to build a system you can count on.
Rock-solid digital audio throughout
Quality and reliability are standard with all Sennheiser products. With EW-DX, digital UHF transmission is augmented by wide, class-leading dynamic range and ultra-low latency. Sennheiser?s proprietary SePac audio codec and new conversion technology sum up to deliver outstanding audio transparency, from capsule input to system output. Intelligent Switching Diversity is an advancement in RF technology that enables the switching of antennas between audio frames to deliver a stable transmission without audible artifacts.
Features
All-in-one digital wireless handheld set for those who sing or speak - featuring Sennheiser's renowned e 835 capsule.134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledgeNetwork enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager and 3rd party media control systems via plug-inRemote control via Smart Assist App over Bluetooth Low Energy (BLE) at distances up to 25 metersSecure transmission of confidential content using AES 256 encryptionUp to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)Function buttons - control all the transmitter settings directly from the handheld including button lock functionPersistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteriesEquidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channelsUp to 88 MHz switching bandwidthLow latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)Digital audio trimTransmitters with charging contacts for in-device charging with CHG 70N charger (sold separately)Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging stationWorldwide usage (specific frequencies subject to local RF regulations)
Specifications
System
Audio link frequency ranges
Q1-9: 470.2 - 550 MHz
Bluetooth Low Energy (BLE) frequency range: 2405 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Total harmonic distortion (THD): ? -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range: 134 dB
System Latency: 1.9 ms
RF technology: Intelligent Switching Diversity
Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
Operating relative humidity: 5 - 95 % (non-condensing)
EW-DX EM 2 (Rack Receiver)
Input voltage range: 11 - 13 V " or PoE IEEE 802.3af Class 0
Input Current: ? 1A
Transmission power: BLE: max. 10 mW EIRP
Audio output power: 18 dBu max.
Ethernet:
RJ-45 socket, IEEE802.3
100Base-TX (half+full duplex)
10Base-T (half+full duplex)
(CAT5e or higher)
Dimensions: 212 x 44 x 189 mm
Weight: approx. 1000 g (without antennas and power supply)
EW-DX SKM (Handheld Transmitter)
Input voltage: 2.0 - 4.35 V
Input Current: ? 300 mA
Power supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power (radiated):
Audio link: 10 mW ERP
(Range Y1-3): 12 mW ERP
LD mode: 10 mw ERP
BLE: max. 10 mW EIRP
Dimensions: 50 x 268 mm (incl. MMD 835 microphone module)
Weight w/o batteries: approx. 304 g (incl. MMD 835 microphone module) approx. 195 g (without microphone module)
MMD 835 (Microphone Module)
Transducer principle: Dynamic
Sensitivity: 2,1 mV/Pa
Sound pressure level (SPL): 154 dB SPL

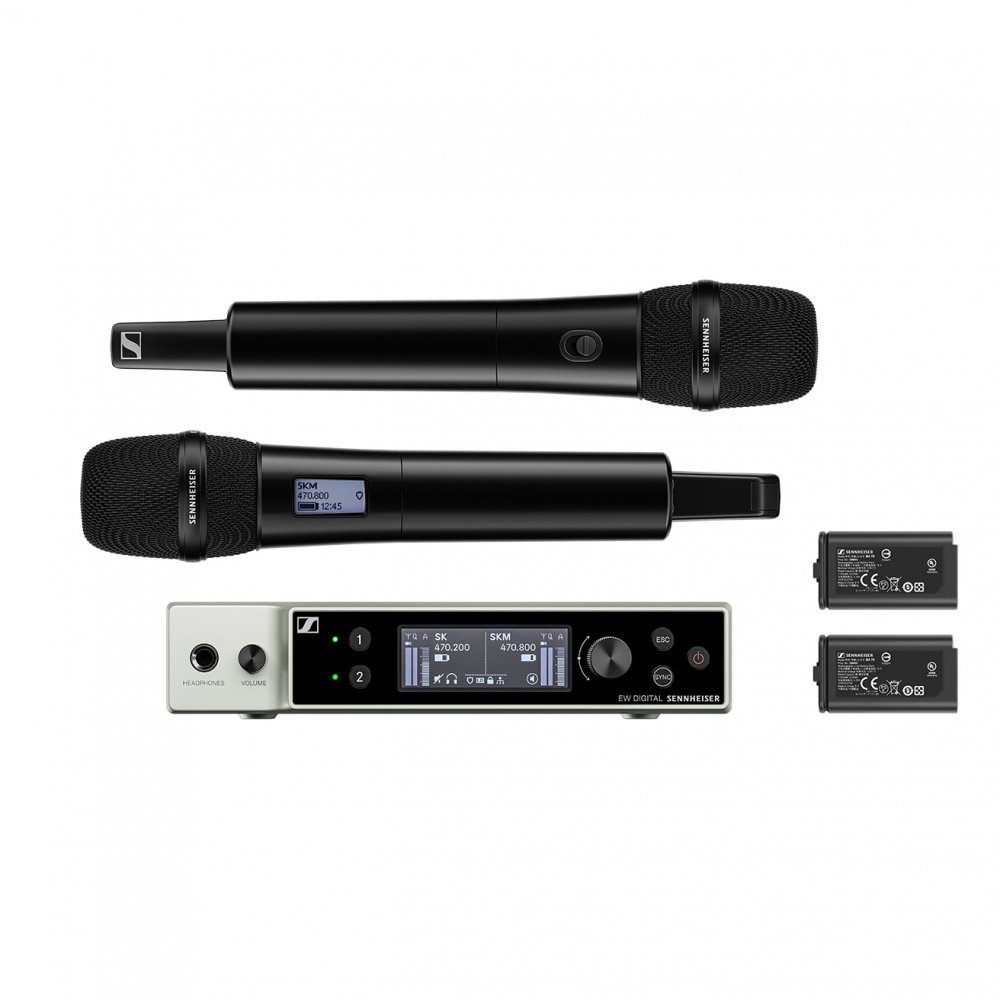

What's in the Box:
EW-DX EM 2 rack receiver
2 EW-DX SKM-S handheld transmitter
2 MMD 835 microphone module
EW-D Power Supply with country adapters
2 BA 70 rechargeable battery packs
2 MZQ 1 microphone clamp
2 rod antennas
GA 3 rack mount Kit
4 rubber feet
