The entire Studio Economik's website is now priced in Canadian Dollars only.

$1625.00

Save 20%, MSRP $2030.00
Free shipping in Canada. Conditions

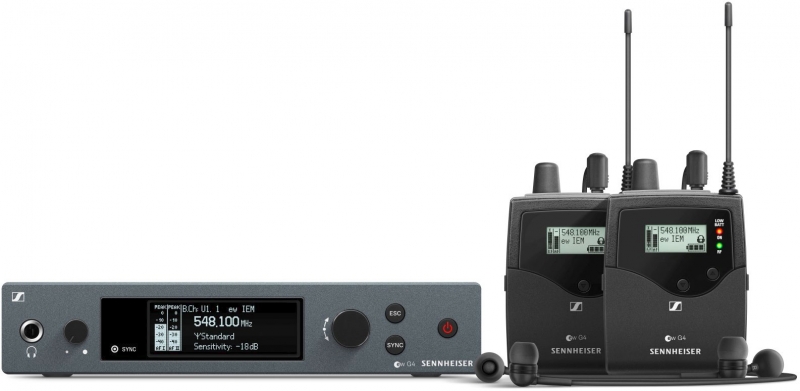

The EW IEM G4 TWIN In-Ear Monitoring Sets make your gig an extraordinary experience - not just for your audience, but also for you.



Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.

Features

  • Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
  • Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage

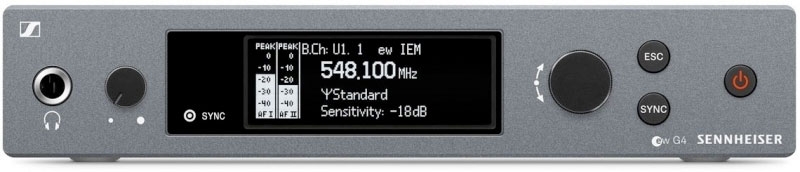

  • Half-rack stereo transmitter in a full-metal housing with OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Compatible with Sennheiser WSM control software for flexible frequency allocation
  • Up to 16 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 50 mW) depending on country regulations
  • Specifications

    SR IEM G4
    Frequency range: A1: 470 - 516 MHz
    Dimensions: Approx. 202 x 212 x 43 mm
    Compander: Sennheiser HDX
    THD, total harmonic distortion: < 0.9 %
    Weight: Approx. 980 g

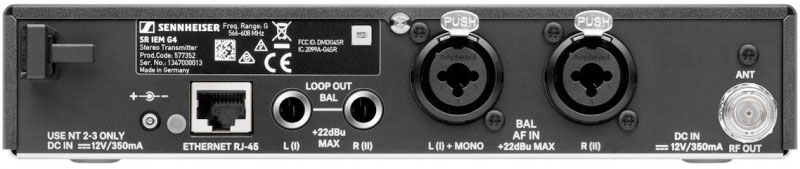

    Audio input: 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
    Audio output: ¼" (6.3 mm) stereo jack socket, balanced
    Signal-to-noise ratio: >90 dB

    RF output power (switchable)
  • Low: typ. 10 mW
  • Standard: typ. 30 mW
  • High: typ. 50 mW

  • Switching bandwidth: up to 42 MHz
    Peak deviation: ±48 kHz
    Nominal deviation: ±24 kHz
    Modulation: Wideband FM stereo (MPX pilot tone)
    Power supply: 12 V DC
    Current consumption: max. 350 mA
    Max. Input voltage: +22 dBu

    Transmission frequency
  • Max. 1680 frequencies
  • Adjustable in 25 kHz steps
  • 20 frequency banks
  • Each with up to 16 factory-preset channels
  • No intermodulation
  • 6 frequency banks with up to 16 programmable channels

  • AF frequency response: 25 Hz to 15 kHz
    Temperature Range: -10 °C to +55 °C
    Frequency stability: ±10 ppm
    Antenna Output: BNC socket, 50

    EK IEM G4
    Frequency range: A1: 470 - 516 MHz
    Dimensions: Approx. 82 x 64 x 24 mm
    Compander: Sennheiser HDX
    THD, total harmonic distortion: 0.9 %
    Weight (incl. batteries) : approx. 125 g
    Signal-to-noise ratio: approx. 90 dBA
    Switching bandwidth: up to 42 MHz
    Peak deviation: ±48 kHz
    Nominal deviation: ±24 kHz
    Operating time: approx. 4 to 6 hours (depending on volume level)
    Modulation: Wideband FM
    Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
    Current consumption: at nominal voltage: approx. 140 mA with transmitter switched off: 25 µA
    Adjacent channel rejection: Typically 65 dB
    Audio-Output-Power: 2 x 100 mW at 32
    Intermodulation attenuation: Typically 70 dB
    Limiter: -18 dB to -6 dB, adjustable in steps of 6 dB, can be switched off
    Powering: 3 V battery / 2.4 V rechargeable battery

    Receiving frequency
  • Max. 1680 frequencies
  • Adjustable in 25 kHz steps
  • 20 frequency banks
  • Each with up to 16 factory-preset channels
  • No intermodulation
  • 6 frequency banks with up to 16 programmable channels

  • RF sensitivity: < 4 V, typ. 1.6 V for 52 dBA rms S/N
    Squelch: 5 to 25 dBµV, adjustable in steps of 2 dB
    Bass Boost: +8 dB at 80 kHz
    Temperature Range: -10 °C to +55 °C
    Receiver Principle: Adaptive diversity
    Blocking: 80 dB
