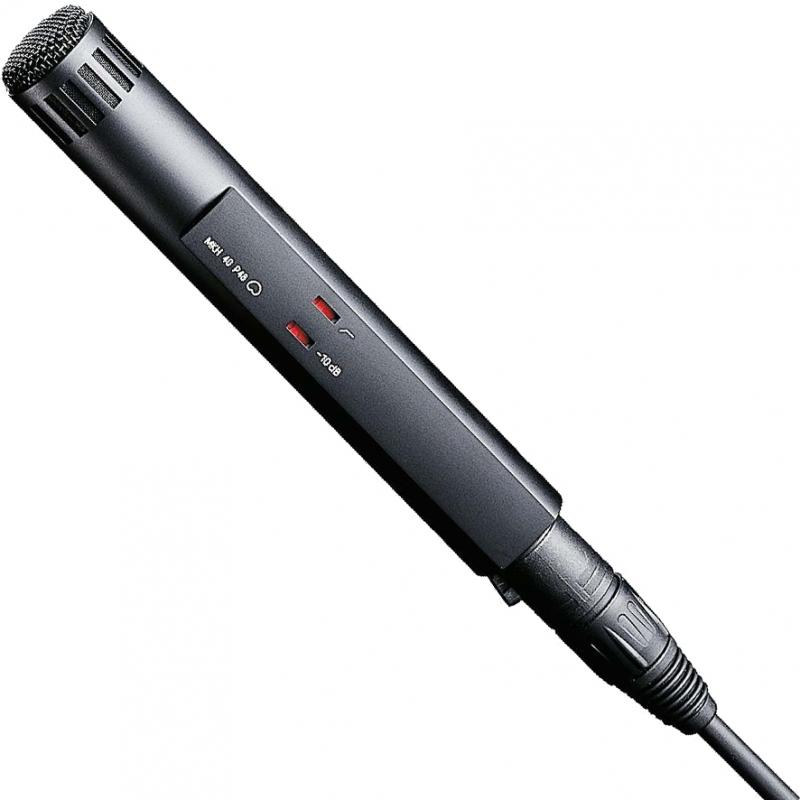

Cardioid RF condenser microphone. For a large number of applications, e. g. as a main microphone, especially in lightly reverberant or acoustically less perfect rooms.
The MKH 40 has a large number of applications, for example as a main microphone, especially in lightly reverberant or acoustically less perfect rooms, with instrumental groups or for speech applications. Its wide-angled, neutral directional characteristics and high level of reverse attenuation ensure an exceptionally balanced sound.
Pressure gradient microphone with cardioid pick-up patternMaximum front to back ratioExceptionally low inherent self-noiseHigh sensitivitySwitchable roll-off filter to compensate for proximity effects at a distance of approx. 0.5 mSwitchable pre-attenuation
Current Consumption : 2 mAPick Up Pattern : CardioidFrequency Response : 40 - 20,000 Hz (-3 dB)Sensitivity : 225mV/Pa (8mV/Pa +-1dB)Nominal Impedance : 150 ohmMin Terminating Impedance : 1000 ohmEquivalent Noise Level : 13 dB (18 dB) / 22 dB (27 dB)Max Spl : 134 dB (142 dB)Dimensions : 25mm x 174 mmWeight : 110 gTransducer Principle : Pressure gradient microphoneMax Output Voltage : 2.5V
