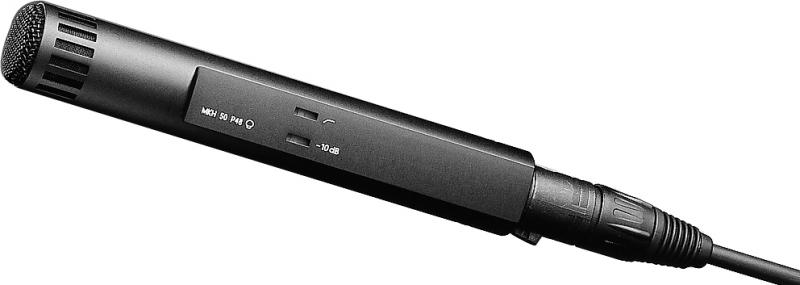

Super-cardioid microphone designed for use as a soloist's or spot microphone for applications requiring a high degree of side-borne sound muting and feedback rejection.
Frequency-independent directional characteristics. Pressure gradient microphone with super-cardioid pick-up pattern.
Features
Pressure gradient microphone with super-cardioid pick-up pattern
High rejection of lateral sounds
Constant directivity over the whole frequency range
Exceptionally low inherent self-noise
High sensitivity
Switchable roll-off filter to compensate for proximity effects at a distance of approx. 0.5m
Switchable pre-attenuation
Specifications
Current Consumption : 2 mA
Pick Up Pattern : Supercardioid
Frequency Response : 40 - 20,000 Hz (-3 dB)
Sensitivity : 225mV/Pa (8mV/Pa +-1dB)
Nominal Impedance : 150 ohm
Min Terminating Impedance : 1000 ohm
Equivalent Noise Level : 12 dB (18 dB) / 21 dB (27 dB)
