Robust bodypack transmitter with increased bandwidth and transmission power for evolution wireless G4 300 Series systems, delivering exceptional speech intelligibility in Business and Education.

Robust bodypack transmitter for use with any Sennheiser headmic or lavalier microphone (SL-HEADMIC1 1, ME 2 recommended)

Easy to use, fast setup time

Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software

Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment

Up to 88 MHz bandwidth, up to 32 channels

Increased RF output power (10/30/50 mW)

Transmission Range: up to 100 meters / 330 feet

Compatible with wireless speaker system LSP 500 PRO

RC (remote control) switch available for the bodypack transmitter

Frequency range: Aw+: 470-558 MHz
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight (incl. batteries): approx. 160 g
Signal-to-noise ratio: 115 dBA

RF output power (switchable)

Low: typ. 10 mW

Standard: typ. 30 mW

High: typ. 50 mW

Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption

At nominal voltage: typ. 180 mA

With transmitter switched off: 25 A

Input impedance: 40 k, unbalanced / 1 M
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery

Transmission frequency

Max. 3520 frequencies

Adjustable in 25 kHz steps

20 frequency banks

Each with up to 32 factory-preset channels

No intermodulation

6 frequency banks with up to 32 programmable channels

AF frequency response

Mic: 80 - 18,000 Hz

Line: 25 - 18,000 Hz

Temperature Range: -10 C to +55 C
Frequency stability: ±15 ppm

What's in the box

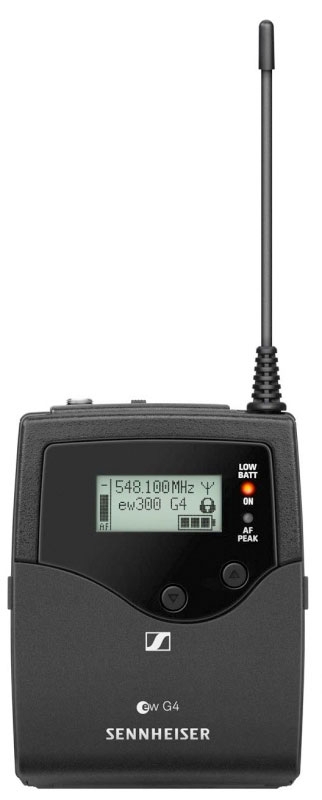

SK 300 G4-RC bodypack transmitter

2 AA batteries

pouch

quick guide

safety guide

manufacturer declaration sheet
