One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with XLR and 3.5mm (1/8") transmitters, this elegant solution makes capturing dialogue on a DSLR easier than ever before while maintaining a reliable connection.

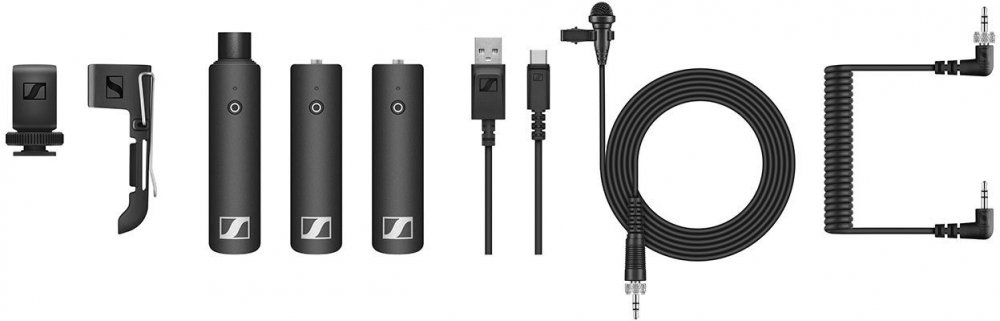

What's in the box

XSW-D 3.5mm (1/8") transmitter

XSW-D XLR Female transmitter

XSW-D 3.5mm (1/8") receiver

ME2-II clip-on lavalier mic

3.5mm (1/8") coiled cable

Cold shoe mount

Belt clip

USB-A to USB-C charging cable

One touch ease-of-use

2.4 GHz digital transmission for worldwide operation

75m range (250ft) in optimal conditions

Up to 5 hours battery life on a single charge

Switch between multiple transmitters linked to one receiver

Configure any combination of transmitters and receivers

Mute from either transmitter or receiver

Dimensions
XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm

THD, total harmonic distortion
< 0.1 %

Charging time
typ. 3 h

Audio output
max. 12 dBu

Operating temperature
-10 C to +55 C (14 F to 131 F)

Signal-to-noise ratio
106 dB

Operating time
up to 5 h

Modulation
GFSK with TDMA

Battery Specification
Li-Ion

Capacity
850 mAh

Codecs
aptX Live

Frequency range
2,400 - 2,483.5MHz

Max. Input voltage
typ. 5.0 V

Transmission power
max. 10 mW

Voltage
3.7 V

Operating relative humidity
95 % (non-condensing)

Latency
< 4 ms

Temperature Range
0 C - 60 C (32 F - 140 F)

Audio frequency response
3.5 mm Jack/XLR: 80 - 18,000 Hz
6.3 mm Jack: 10 - 18,000 Hz
