Shape Blackmagic Ursa Mini V-Lock Quick Release Baseplate
UPC/EAN #629266006375
MPN #URSABP
V-Lock quick release baseplate for Blackmagic Ursa Mini cameras with removable shoulder pad and rosette adapters for ARRI standard handles

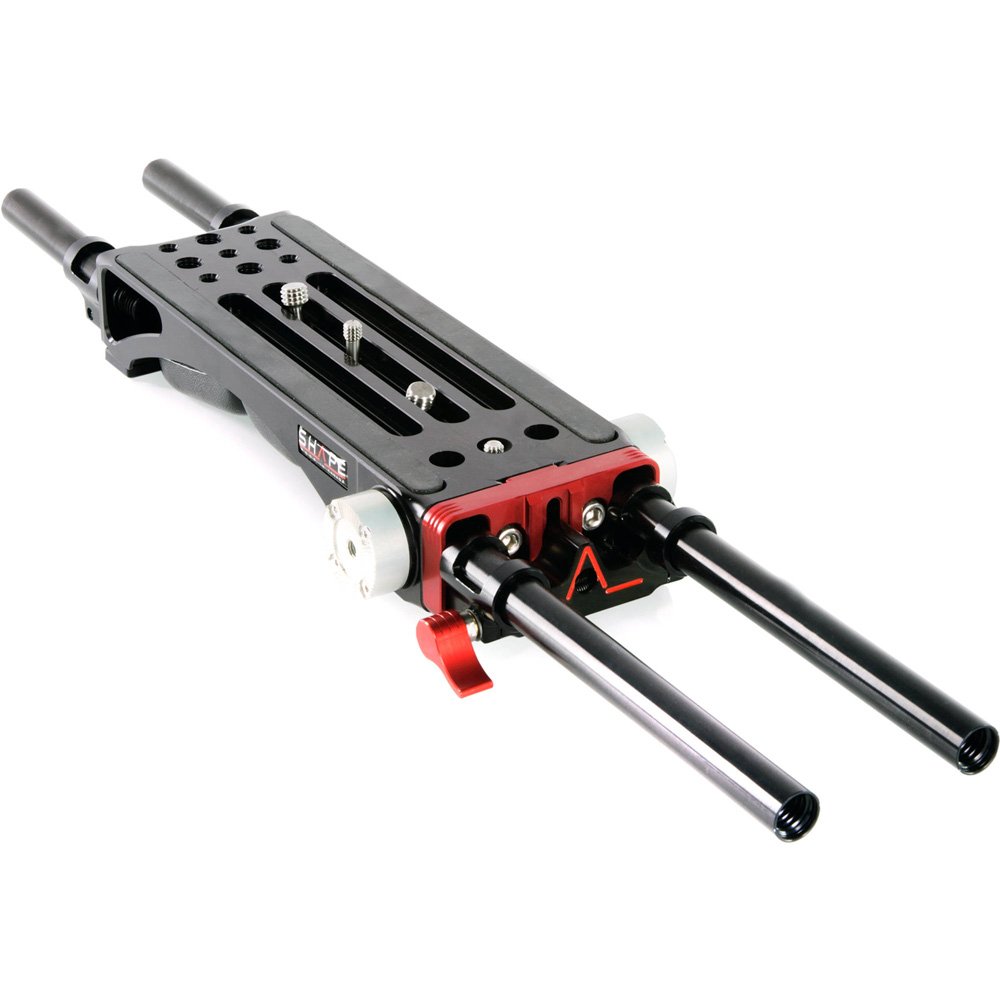

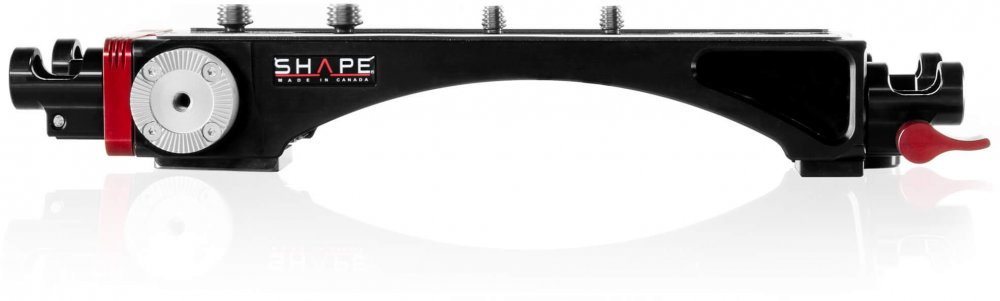

The SHAPE V-Lock Quick Release Baseplate is a long format baseplate compatible with the the Blackmagic Ursa Mini cameras. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters. It should be used with cameras with external viewfinders. The baseplate includes a removable shoulder pad and features rosette adapters for ARRI standard handles. It has 1/4?-20 and 3/8?-16 tripod mount threads and a V-lock delta adapter for attaching SHAPE VCT Tripod Plate (VCTSH) or any VCT-14 tripod plate.
SHAPE VCT universal baseplate Arri rosette (BPVCT)

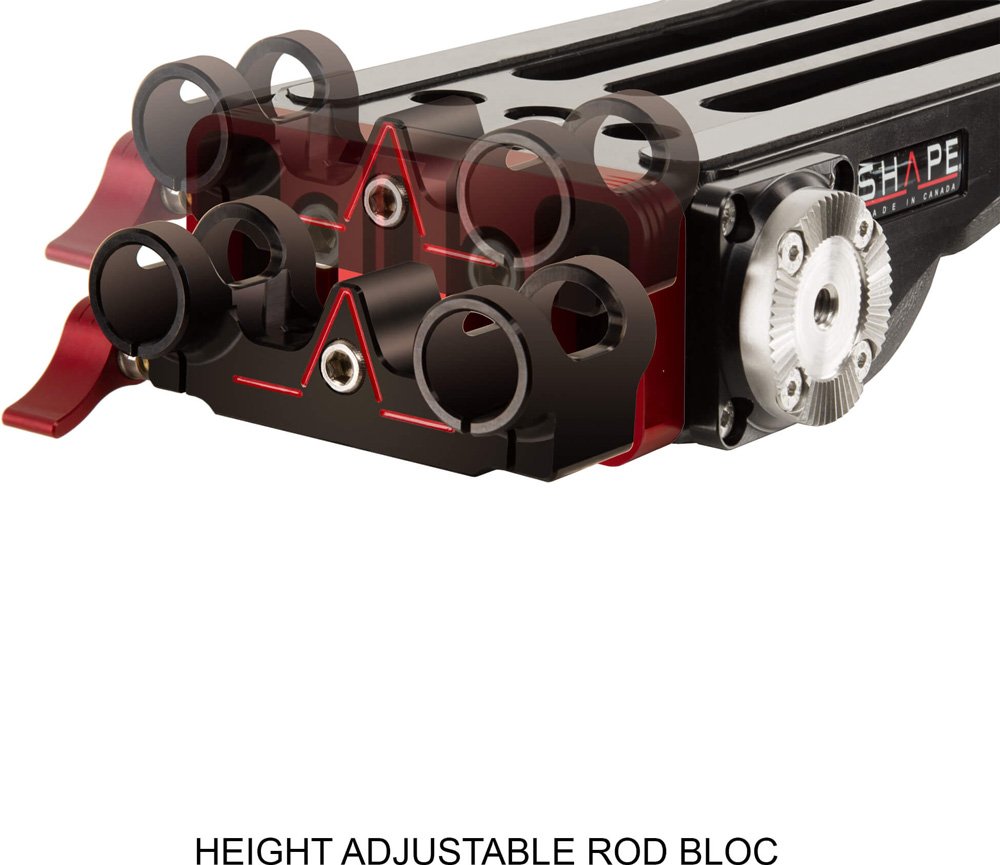

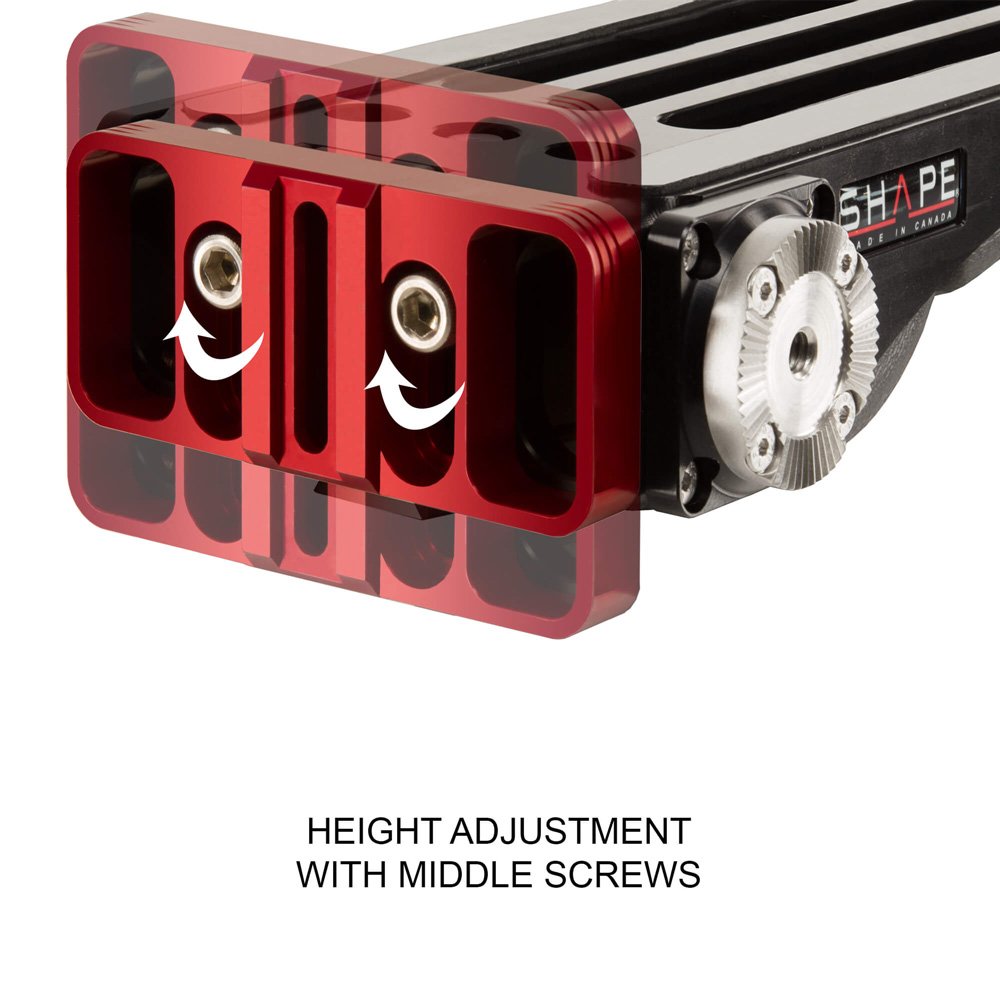

The SHAPE VCT universal baseplate Arri rosette (BPVCT) is a lighter version of the V-lock quick release baseplate (BP0008) without the rear rod bloc. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters. It should be used with cameras with external viewfinders. The baseplate includes a removable shoulder pad and features rosette adapters for ARRI standard handles. It has 1/4"-20 and 3/8"-16 tripod mount threads and a V-lock delta adapter for attaching SHAPE VCT Tripod Plate (VCTSH) or any VCT-14 tripod plate. The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. One pair of 15 mm 8" rods are included for the front. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15 mm Studio and 19 mm Studio adapters in place of the included one. The baseplate features three camera mount slots, all supporting 1/4"-20 and 3/8"-16 screws. The off-center slots allow you to mount your camera offset if you use a 15 mm Studio Adapter. Multiple 1/4"-20 and 3/8"-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4"-20 and two 3/8"-16 camera mount screws are included.
Spare pad for BP series (BP0050)
The V-Lock Replacement Pad from SHAPE is a replacement shoulder pad for the BP SERIES v-lock quick release baseplate (BP0008, BP8000, BP7000). The pad utilizes a hook-and-loop system which allows for easy attachment and removal. The additional padding provided by the strap increases user comfort and reduces strain on the shoulder.
Pair of rod 15 mm female-female rod (8 in) (2ROD15FF8)
The SHAPE pair of 15 mm 8" female-female rods are anodized aluminum rods with 1/2"-13 threaded female extremities. The rods are 8" (203mm) long and have a diameter of 0.59" (15 mm). It is compatible with 15 mm 4" or 6" male-female rods, rod bloc, and sliding rod Bloc.
Pair of rod 15 mm male-female rod (4") (2ROD15MF4)
This pair of 4" black 15 mm Extensions Rods features one male end and one female end, each with 1/2"-13 threading. The rods are composed of lightweight anodized aluminum for strength and durability. Standard 15 mm rod for a camera support system Lightweight anodized aluminum for strength and durability Both extremities of the rods are threaded (1/2"-13)
Features
Made of CNC Machined AluminumDesign to be shoulder or tripod mountedCompatible with cameras with external viewfindersCompatible with 15 mm lightweight and (15 or 19) mm LWS bracketsLet you adjust your rod height bloc to match your camera?s optical centerProtective rubber pads to protect your cameraDesigned with 2 standard Arri rosettes for handles mountDesigned with 3 camera mount slots1/4?-20 and 3/8?-16 accessory mount threadsRemovable velcro shoulder pad15mm female-female (8??) rods at the front and (4??) male-female at the backQuick release adapter plate compatible with VCT-14 tripod plate
Specifications
What's in the box
(1) V-LOCK QUICK RELEASE BASEPLATE WITH ARRI ROSETTE MOUNT
(1) ADJUSTABLE BRACKET
(1) REMOVABLE SHOULDER PAD
(1 pair) 15 MM FEMALE-FEMALE ROD 8? (2ROD15FF8)
(1 pair) 15 MM MALE-FEMALE ROD 4? (2ROD15MF4)
Weight:
2.15 lbs . 0.98 kg
Dimensions:
11.75 x 4.25 x 2.00 in
29.84 x 10.79 x 05.08 cm
