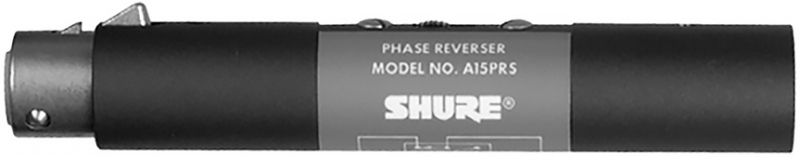

The Shure A15PRS is a Switchable Phase Reverser. Reverses the phase (polarity) of a balanced audio signal.
The Shure A15PRS reverses the phase (polarity) of a balanced audio signal. Typical use applications include correcting polarity reversal caused by a wiring error in a microphone cable; connecting an unbalanced high impedance microphone having the "hot" signal on pin 3 to the input of a mixer that requires the "hot" signal on pin 2; and reducing phase cancellation/comb filtering between two signals that are of opposite polarity.
An in-line switch permits instant selection of either normal or reversed polarity for comparison purposes.
Impedance: Input: any impedance, any level, Output: an impedance, any level
Connectors: Designed for connection to Cannon XL series, Switchcraft A3, Input: 3-socket, Output: 3-in, Completely reversable
Case: Full magnetic shield, steel with gray enamel finish
Dimensions: 19 mm (3/4 in.) diameter; 141 mm (5 17/32 in.) long
