Shure ANX4US-DC
MPN #ANX4US-DC
Scalable 1RU receiver with DC power, supports up to 16 Axient Digital or 24 ULX-D channels, modular license activation, Dante-ready, quad Ethernet and RF inputs.
The Shure ANX4US-DC is a high-density, rackmount wireless receiver designed for scalable deployments using either Axient Digital or ULX-D systems. Powered via DC, it's ideal for mobile, remote, or backup-powered applications. The receiver supports up to 16 channels of Axient Digital or 24 channels of ULX-D audio in just one rack space.
Channel licenses are purchased separately in single or four-channel increments and activated via ShureCloud, allowing for easy configuration and transfer between units. Featuring wide 174 MHz to 2 GHz tuning, dual Dante ports, streamlined RF and network connectivity, and full compatibility with Shure Wireless Workbench, the ANX4US-DC delivers flexible, high-performance wireless in a compact, power-efficient form.
Features
High-Density Wireless Receiver: Supports up to 16 Axient Digital or 24 ULX-D channels in just 1RU, perfect for large-scale audio setups.DC Power Input: Designed for mobile, remote, or redundant power applications-ideal for broadcast trucks, flypacks, and mission-critical systems.Scalable Channel Licensing: Activate only the wireless channels you need with modular license options (sold separately via ShureCloud). Add or transfer licenses between units as needed.Flexible System Mode: Choose to operate in either Axient Digital or ULX-D mode-whichever fits your setup (one system active at a time).Space & Cost Efficient: Consolidate your wireless channel count in fewer rack units-simplifies RF routing and reduces hardware footprint and weight.Advanced Monitoring Tools: Features a 6.6-inch front-panel color display, 5-segment channel quality meters, and a 1/4" headphone jack with Dante audio browsing.Streamlined Networking: Includes four Ethernet ports for network control and Dante/AES67 digital audio output-ideal for integrating into modern IP-based systems.Versatile Antenna Setup: Equipped with four coaxial RF inputs, supporting multiple frequency bands and optimized coverage.Integrate Software Control: Fully compatible with Shure Wireless Workbench, ShurePlus Channels app, and third-party control systems.
Specifications
General Specifications
Scalable digital wireless receiverSupports up to 16 channels of Axient Digital or 24 channels of ULX-D wireless audioChannel licenses required for operation, sold separatelyOperates in either Axient Digital or ULX-D mode, not simultaneouslyLicenses managed via ShureCloud user accountModel variant ANX4US-DC uses DC power for redundancy or portable setups
Power and Physical Design
DC power input option for applications requiring redundancy or alternative power setupsCompatible with external DC power supply modules1 rack unit height, 19 inch rackmountableLocking DC power connectorOptional AC-powered version available as ANX4US-AC
RF and Audio Capabilities
Wide tuning range from 174 megahertz to 2 gigahertzFour RF antenna input connectors (BNC)Digital audio output via Dante or AES67Channel licenses available in single or four channel increments

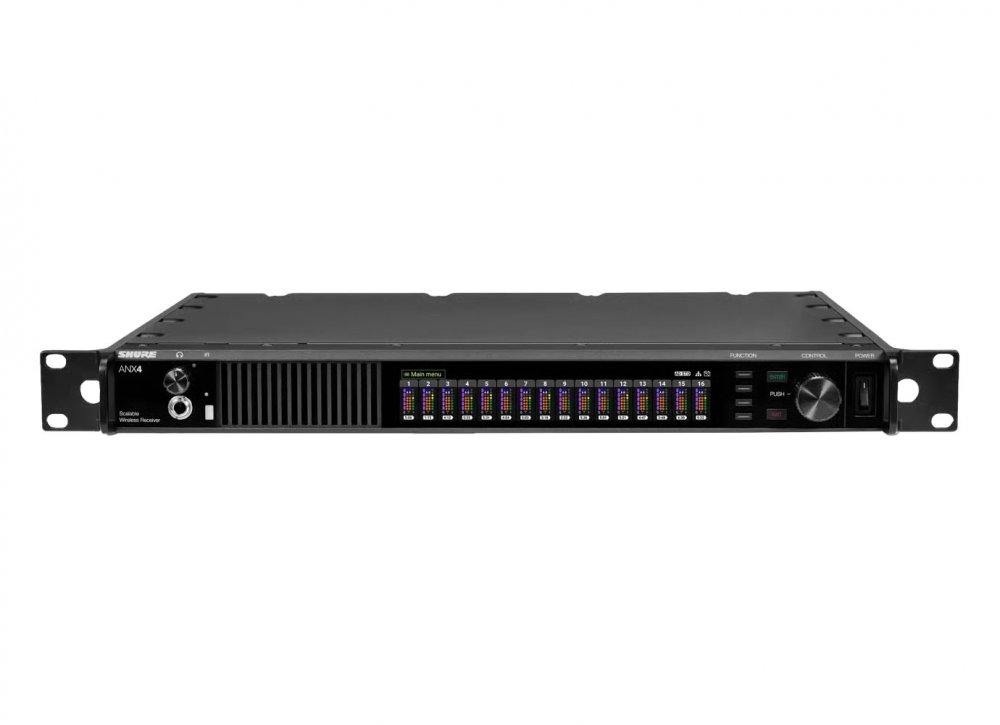

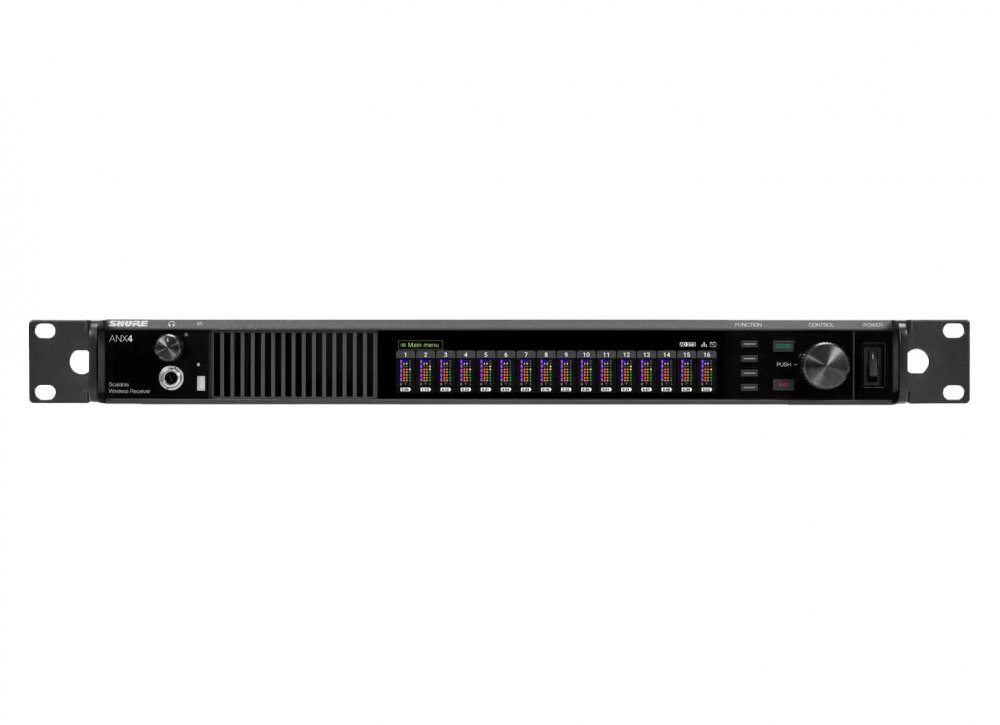

Front Panel Features
6.6 inch full color displayFive segment RF channel quality metersOne quarter inch headphone monitoring jackNavigation and menu controls

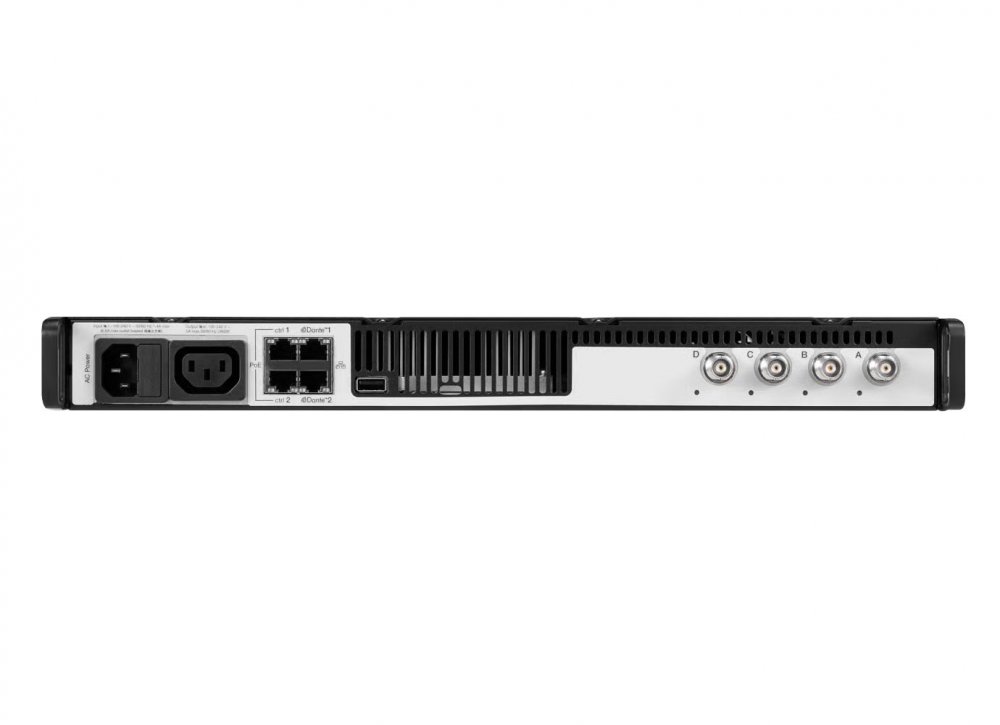

Rear Panel Features
Four BNC RF input connectorsFour RJ45 network ports for control and Dante audioTwo Dante digital audio output portsTwo control ports for Wireless Workbench and ShurePlus ChannelsAntenna cascade supported with included bulkhead adapters
Software and Control
Fully networkable with Shure Wireless WorkbenchCompatible with ShurePlus Channels mobile appDante Browse support for headphone audio monitoring
Included in the Box
One ANX4US-DC receiver unitRackmount kitOne short Ethernet cableOne long Ethernet cableTwo BNC cablesTwo BNC bulkhead adaptersDC power connector
Use Case Applications
Designed for high channel count wireless environments with alternative power needsSuitable for mobile broadcast, touring, OB trucks, and field applicationsEnables flexible license-based scaling across multiple ANX4 unitsProvides space and cost savings in dense RF deployments with DC redundancy
