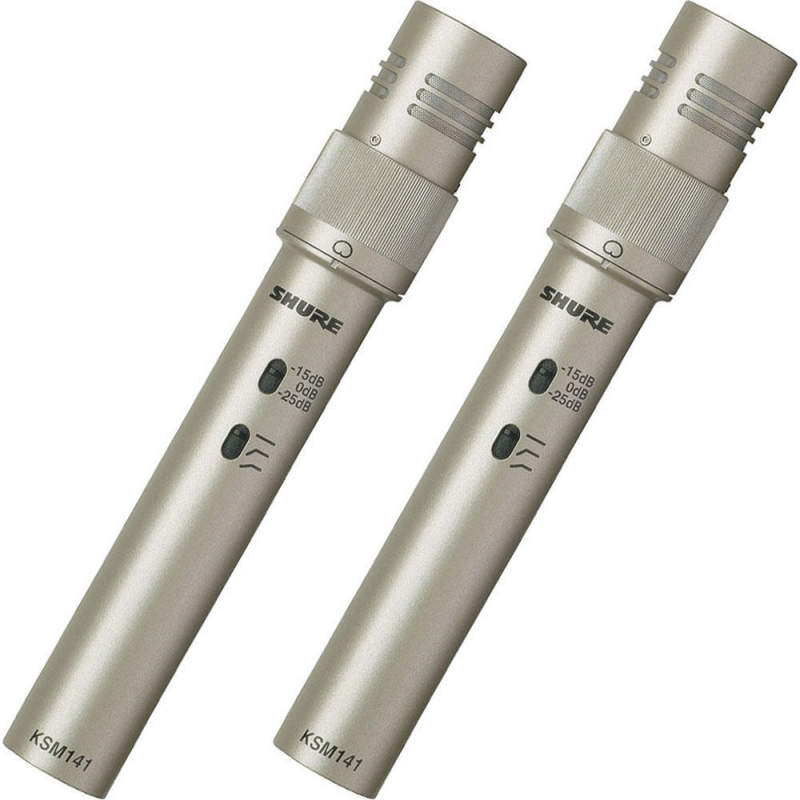

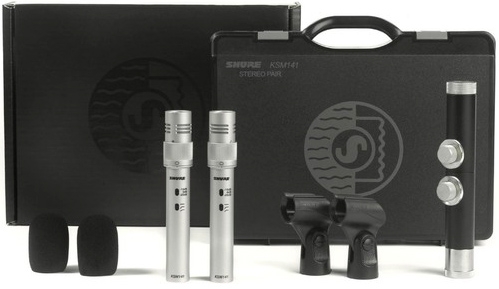

Matched Pair of KSM141 Dual-Pattern Instrument Microphone. End-address condenser microphone with mechanically switching dual polar patterns.
The KSM141 is a dual-pattern end-addressed condenser microphone with a rotating collar, allowing easy switching between a consistent cardioid or true omnidirectional polar pattern for smooth and extremely focused sound reproduction.
Designed for studio use, yet rugged enough for live applications, the KSM141 can withstand extremely high sound pressure levels (SPL). Its low self-noise and extended frequency response make it ideal for recording musical instruments.
A mechanical polar pattern switch for highly consistent cardioid and true omnidirectional polar patterns. Provides flexibility in a wide variety of recording applications
Ultra-thin, 2.5 micron, 24 karat gold-layered, low mass Mylar® diaphragm for superior transient response
Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, no crossover distortion, and minimal harmonic and intermodulation distortion
Premium electronic components, including gold-plated internal and external connectors
Subsonic filter eliminates low frequency rumble (less than 17 Hz) caused by mechanical vibration
Three-position switchable pad (0 dB, 15 dB, and 25 dB) for handling extremely high sound pressure levels (SPLs)
Three-position switchable low-frequency filter to reduce background noise and counteract proximity effect
Type: Permanently Biased Condenser
Frequency Response: 20 to 20,000 Hz
Polar Pattern: Cardioid/Omnidirectional
Phantom power required: 48 Vdc +/- 4 Vdc (IEC26815/DIN 45 596), positive pins 2 and 3
