Shure ULXD2/B87-G57
MPN #ULXD2/B87A-G57A7
$1169.00
Save 28.5%, MSRP $1636.00
Beta 58A supercardioid capsule, 470"608 MHz tuning, AES-256 encryption, 24-bit audio, auto gain, 1/10/20mW RF output, rugged metal body, SB900B battery ready.

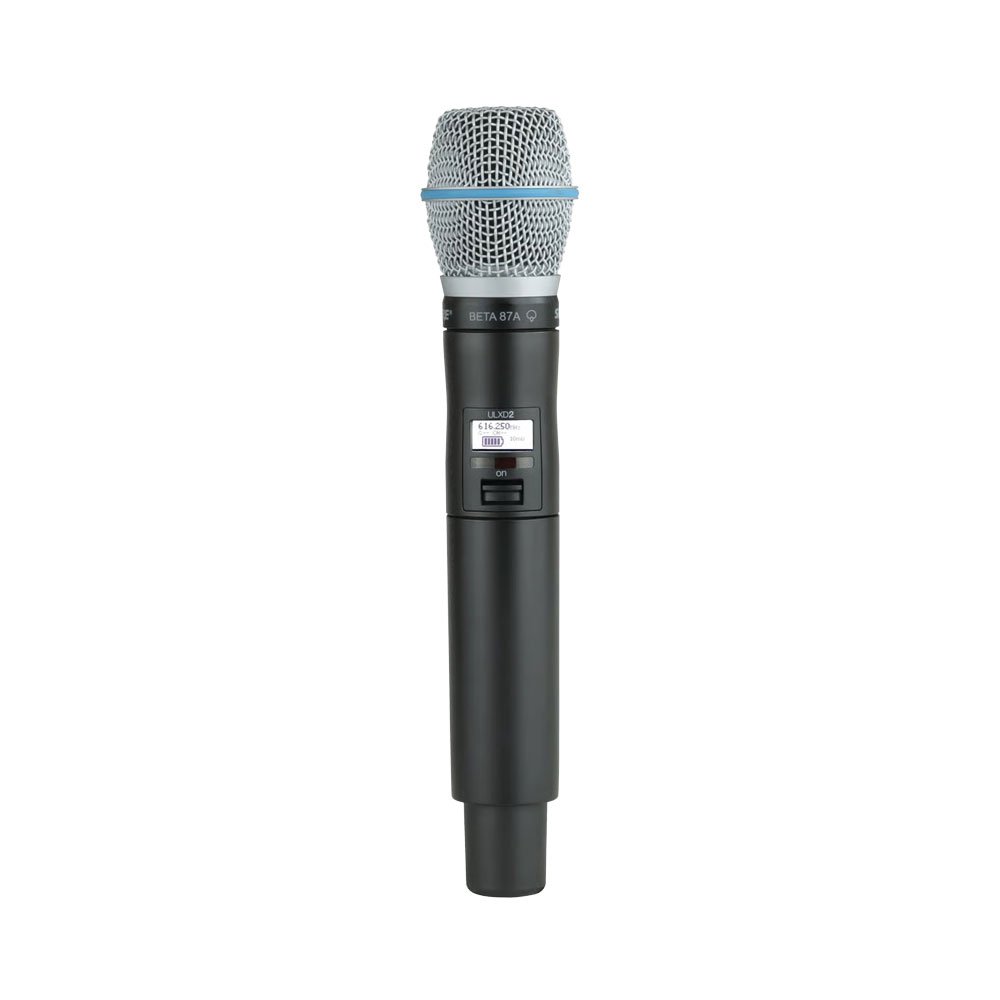

The Shure ULXD2/B87A is a digital handheld transmitter for ULX-D systems, featuring the Beta 87A supercardioid condenser capsule for detailed vocal reproduction with excellent background noise rejection. Its 24-bit/48 kHz digital audio ensures clear, accurate sound across a 330 ft range.
Operating in the G57 band (470-608 MHz), it offers a 138 MHz tuning range, AES-256 encryption, and automatic gain adjustment. The interchangeable capsule design allows flexibility with other Shure mic heads.
Additional features include a backlit LCD, 1/10/20 mW RF output, and mute mode. Power options include two AA batteries or the SB900B rechargeable battery for over 8 hours of runtime and docked charging compatibility. Its rugged aluminum housing ensures reliability in professional environments.
Features
Beta 87A Supercardioid Condenser Capsule: Delivers smooth vocal clarity with high SPL handling and excellent off-axis noise rejection.Interchangeable Capsule Design: Compatible with a wide range of Shure capsules including SM58, Beta 58A, KSM9, and more.138 MHz Wide Tuning Range: Operates across 470"608 MHz for flexible deployment in various RF environments.Pristine Digital Audio: Provides 24-bit/48 kHz sound with low latency and a 330' range-ideal for live and broadcast use.AES-256 Encryption: Ensures secure transmission for high-security or interference-sensitive applications.Automatic Gain Ranging: Adjusts input gain automatically, eliminating manual transmitter adjustments.Selectable RF Output Power: Choose from 1, 10, or 20 mW to optimize performance and channel count.Mute Mode: Converts the power button into a mute switch while maintaining RF presence.Durable Construction: Lightweight yet rugged aluminum housing designed for professional use.User-Friendly LCD Interface: Easy menu navigation for control over frequencies, mute status, and battery life.Battery Versatility: Runs up to 11 hours on AA batteries, or over 8 hours with the optional SB900B rechargeable battery.Smart Charging Ready: Compatible with SBC200 and SBC220 docked charging solutions for networked battery management.
Specifications
General Specifications
Model: ULXD2/B87A-G57Wireless Technology: Digital UHFCompatibility: Shure ULX-D Digital Wireless SystemsCapsule: Beta 87A - Condenser, Supercardioid Polar PatternCapsule Interchangeability: Yes (compatible with SM58, SM86, SM87A, Beta 58A, Beta 87C, KSM9, etc.)Construction: Rugged aluminum housingMax SPL: 140 dB SPL (typical for Beta 87A)Polar Pattern: SupercardioidDimensions: Approx. 10" x 2" (varies by capsule)Weight: Approx. 350 g (without batteries)
Audio & Transmission
Audio Resolution: 24-bit / 48 kHz digital audioFrequency Range: 470 to 608 MHz (G57)Tuning Bandwidth: Ultrawide 138 MHzRF Output Power: Selectable 1 mW / 10 mW / 20 mWMax Range: Up to 100 m / 328 ftLatency: <2.9 msSync Method: Infrared (IR)
Display & Controls
Screen: Backlit LCDInterface: Easy-to-navigate menu for frequency, group/channel settings, mute/lock status, RF power, and battery statusMute Function: Power button doubles as mute switch with RF lockFrequency/Power Lockout: Yes
Security & Gain
Encryption: AES 256-bitGain Adjustment: Proprietary Shure Gain Ranging (automatic mic level adaptation)
Power & Battery Options
Standard Battery: 2 x AA - up to 11 hours runtimeRechargeable Battery: Optional Shure SB900B - up to 8.5 hours runtimeBattery Features: Precision metering in hours and minutes, No memory effectDocked Charging: External contacts compatible with SBC200 (dual dock), Networkable SBC220 charger for remote battery monitoring (via Wireless Workbench)
Use Cases
Ideal for: Lead and background vocalists, Houses of worship, Live presentations and stage productions, Touring and event professionalsBenefits: Pristine vocal clarity and presence, Excellent feedback rejection, Reliable, secure wireless performance, Interchangeable capsules for flexible application
