Shure ULXD2/N8CB-G57
MPN #ULXD2/N8CB-G57
$1159.00
Save 20.4%, MSRP $1456.00
138 MHz tuning, Nexadyne 8/C capsule with Revonic dual transducers, cardioid pattern, AES-256 encryption, 8.5 hr SB900B battery, 470"608 MHz range

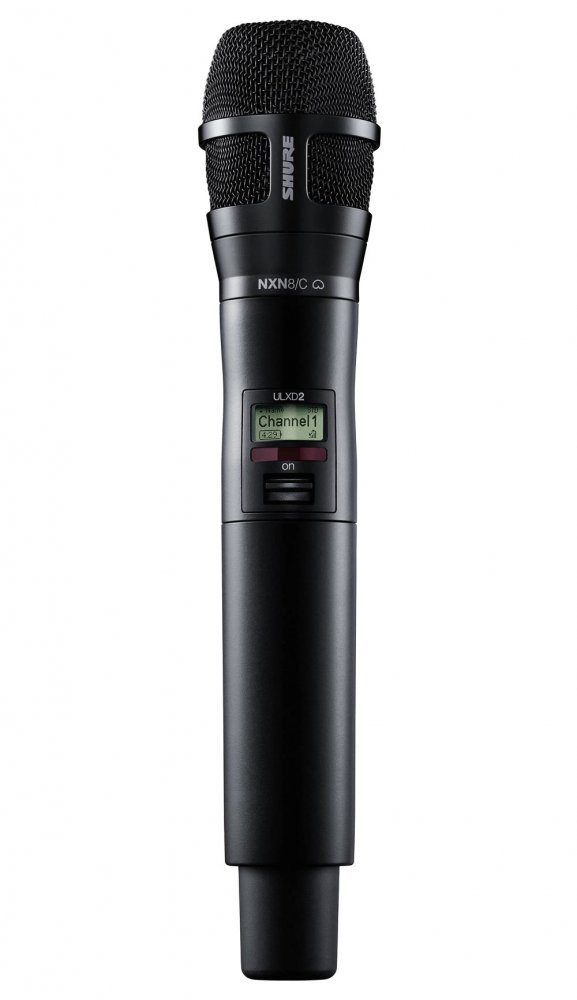

The Shure ULXD2/N8CB-G57 is a professional digital handheld transmitter for ULX-D systems, equipped with the innovative Nexadyne 8/C dynamic cardioid capsule. Featuring Revonic dual-transducer technology, this mic delivers condenser-like vocal clarity, enhanced off-axis rejection, and reduced handling noise-ideal for live vocal performances.
Operating in the G57 band (470"608 MHz) with a 138 MHz tuning range, the transmitter offers 24-bit/48 kHz digital audio, AES-256 encryption, and automatic gain adjustment. The interchangeable capsule design allows quick swaps with other Shure heads.
Key features include a rugged aluminum housing, backlit LCD, mute mode, and 1/10/20 mW selectable RF output. It provides up to 11 hours on AA batteries or 8.5 hours with the optional SB900B rechargeable battery, with support for docked and networked charging options-making it a robust, high-performance solution for demanding wireless vocal applications.
Features
Nexadyne 8/C Capsule with Revonic Technology: Dual-diaphragm dynamic design delivers condenser-like clarity with cardioid focus and reduced proximity effect.Clear and Detailed Vocal Sound: Produces natural highs and vivid clarity with minimal handling noise, thanks to its internal dual-transducer layout.Wide Tuning Range: Operates across 470"608 MHz with a 138 MHz range, ideal for use in various regional environments.Interchangeable Capsule Design: Compatible with Shure capsules like KSM9, SM58, Beta 58A, and more, offering flexible sound tailoring.24-bit/48 kHz Digital Audio: Delivers pristine, low-latency audio over a 330' range-perfect for live sound, worship, and presentations.Secure AES-256 Encryption: Protects signal integrity in high-security or interference-prone environments.Automatic Gain Ranging: Self-adjusts input levels for optimal sound without manual settings.Selectable RF Output Power: Choose between 1, 10, or 20 mW to increase range or maximize simultaneous channel use.Durable Aluminum Housing: Lightweight and tour-ready with integrated pop protection and moisture rejection features.Easy Sync and Control: IR sync with backlit LCD for quick access to frequency, group, RF output, and battery status.Battery Options: Runs up to 11 hours on AA batteries or 8.5 hours with the SB900B rechargeable battery.Smart Charging Support: Compatible with SBC200 and SBC220 charging docks for efficient and network-integrated battery management.
Specifications
General Specifications
Model: ULXD2/N8CB-G57Wireless Technology: Digital UHFCompatibility: Shure ULX-D Digital Wireless SystemsCapsule: Nexadyne 8/C Cardioid DynamicPolar Pattern: CardioidCapsule Technology: Shure Revonic Dual-Engine TransducerConstruction: Rugged aluminum housingColor: BlackDimensions: 10.1 x 2 in (256 x 51 mm)Weight: 12 oz (340 g)
Audio & Transmission
Audio Resolution: 24-bit / 48 kHzFrequency Range: G57 band (470 to 608 MHz)Tuning Bandwidth: 138 MHzRF Output Power: Selectable 1 / 10 / 20 mWMax Operating Range: 100 m (328.1 ft)Latency: < 2.9 msSensitivity: -54 dBV/Pa (at 1 kHz)Frequency Response: 50 Hz to 20 kHz (30 Hz to 20 kHz system dependent)
Microphone Features
Microphone Type: DynamicCapsule Characteristics: Dual-transducer dynamic with Revonic technologyEnhanced isolation from mechanical vibration (no need for traditional shockmounts)Condenser-like clarity with controlled proximity effectIntegrated multi-stage pop protection grilleOptimized capsule for minimal bleed and plosive rejectionInterchangeable Capsule Design: Yes (compatible with other Shure capsules)
User Interface & Controls
Display: Backlit LCDMenu Access: Frequency, group/channel, mute, lock, RF output, battery statusSync Method: IR (Infrared)Mute Mode: Power button doubles as mute with RF lockLockouts: Frequency and power lock
Encryption & Gain Management
Encryption: AES 256-bitGain Adjustment: Automatic (Shure Gain Ranging)Gain Range: 0 to +21 dB (3 dB steps)
Power & Battery Options
Battery Types: 2 x AA (included) " up to 11 hours, 1 x SB900B Li-ion Rechargeable (not included) - up to 8.5 hoursCharging Options: SBC200 Dual Docking Charger (not included), SBC220 Network Charger (not included)Charging Features: Dockable external contacts, precision metering, zero memory effect
