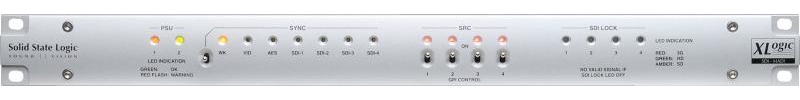

Solid State Logic SDI-MADI

The SSL SDI-MADI is a cost-effective solution to the problem of connecting audio equipment to the SDI-based infrastructure found in many broadcast facilities today.

Occupying only 1U of rack space, the SDI-MADI provides the interface between SDI video bitstreams and digital audio. SDI-MADI extracts up to 16 audio channels from each of the unit's four SDI inputs to provide a total of up to 64 audio channels in both MADI (AES10id-2008) and AES3 (AES3-1992) formats. All SDI inputs independently auto-sense between 3G, HD and SD standards and are provided with loop-through connectivity for downstream equipment. With a comprehensive range of synchronising options and switchable sample rate convertors, the SDI-MADI is designed to reliably and seamlessly integrate into any broadcast environment where SDI-embedded audio channels require format conversion.
Features
  • 4 x SDI inputs on 75 ohm BNC connection. 16 audio channels per input
  • Auto-detection of SD/HD/3G input format
  • Active loop-through of each input to 75 ohm BNC output connection
  • Full Dolby E/Dolby Digital transparency for loop through
  • 32 x AES digital audio output via 37 pin D-Sub
  • Dual 64 Ch MADI digital audio output via ST Multimode Optical and Coax
  • Front Panel LED status indication for PSU, SYNC, SRC and SDI Lock
  • Comprehensive sync options (Wordclock, AES, Black and Burst, SDI1 - 4)
  • Wordclock and AES sync outputs
  • On-board sample rate convertors (SRCs), enabled locally or remotely via GPI
  • Dual power supplies, with separate IEC mains connectors
  • Optional 19" AES Signal Breakout panel providing AES3-id outputs on 32 x BNC connectors (75 ohm)
  • Specifications
    Video Inputs:
    Connector/input impedance : 4 x BNC sockets, 75 ohm
    Compatible formats : SDI, SD/HD/3G, compliant with SMPTE 259M, 296M, 274M, 292M, 424M or 425M

    Video Outputs:
    Connector/output impedance : 4 x BNC sockets, 75 ohm
    Format : Active, re-clocked loop-through of SDI inputs

    Audio Inputs:
    Format: : Extracted from SDI video inputs

    AES3 Audio Outputs:
    Connector/output impedance : 37-way female Dsub, 32 x 75 ohm unbalanced
    Format : Compliant to AES3-1992
    Sampling frequency : 48 kHz nominal

    MADI Audio Output:
    Connector/output impedance (coaxial) : BNC socket, 75 ohm
    Connector (optical) : ST Multimode
    Format : 64-channel, compliant with AES10id-2008
    Data rate : 125 Mbps ±25ppm

    Synchronisation:
    Sample Rate Conversion : SRC available on all inputs, switchable in banks of 16
    Sources : (External): SDI1 to 4, AES3, Video black-and-burst, Wordclock
    Video sync input : PAL/NTSC 50/60 Hz (SD)
    Wordclock input : 48 kHz ±50ppm, DC coupled, positive going pulses
    AES3 input : AES3 input at fs=48 kHz
    Wordclock output : 48 kHz nominal
    AES3 output : Digital audio signal compliant with AES3-1992

    GPIO Port:
    GPIO port - connector : 9-pin female Dsub
    Input functions : 4 x SRC select (short-to-ground)
    Output functions : 4 x SRC status (open-collector)

    Other Control:
    RS-422 : 9-pin female Dsub - for possible future use
    Ethernet : For possible future use

    Power Supply:
    Type : 2 x independent switch-mode regulated, auto-ranging
    Inputs : 2 x 90 to 264 V AC, 50/60 Hz
    Power consumption : 16 W
    Connectors : 2 x IEC with retaining clips
    Fuse data : Internal fixed resettable (non-user-accessible). Use a 1 A HRC externally-fused supply

    Physical:
    Dimensions (w x d x h) : 483 x 200 x 44.5 mm (1U)
    19 x 7.87 x 1.75 inches (1U)
    Weight : 4 kg / 8.8 lbs
    Operating temperature range : 0ºC to +40ºC
    Relative humidity range : 70% max, (non-condensing
    Reviews
    Price *
    $17995.00
    $16870.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the SDI-MADI, please visit the website of Solid State Logic
