Sonosax SX-RX8+
MPN #044550
Dual Minislot receivers holder for SX-R4+ with rotary fader extension
It is not exactly a Superslot or a Unislot, let?s say a Minislot! For reasons of weight and size, it is smaller, lighter, and includes minimal mechanical parts. It does not have an antenna splitter and does not allow the control of receivers by serial bus.

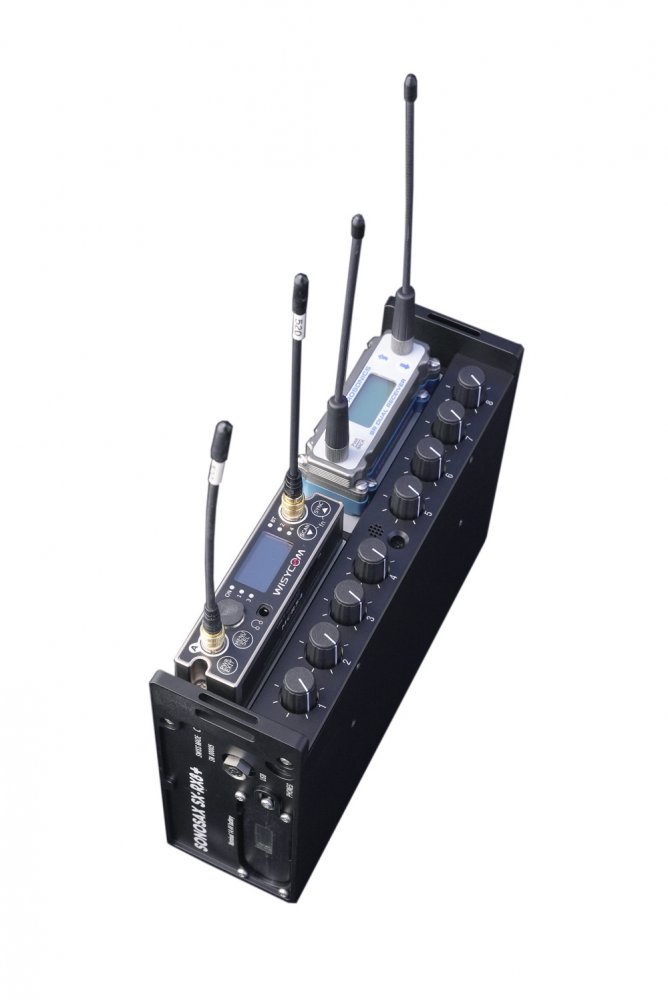

It can hold the following receivers, depending on the mounting plate and the cable set to be ordered separately:
Wisycom MCR42 with BPA42-IKSS adapter

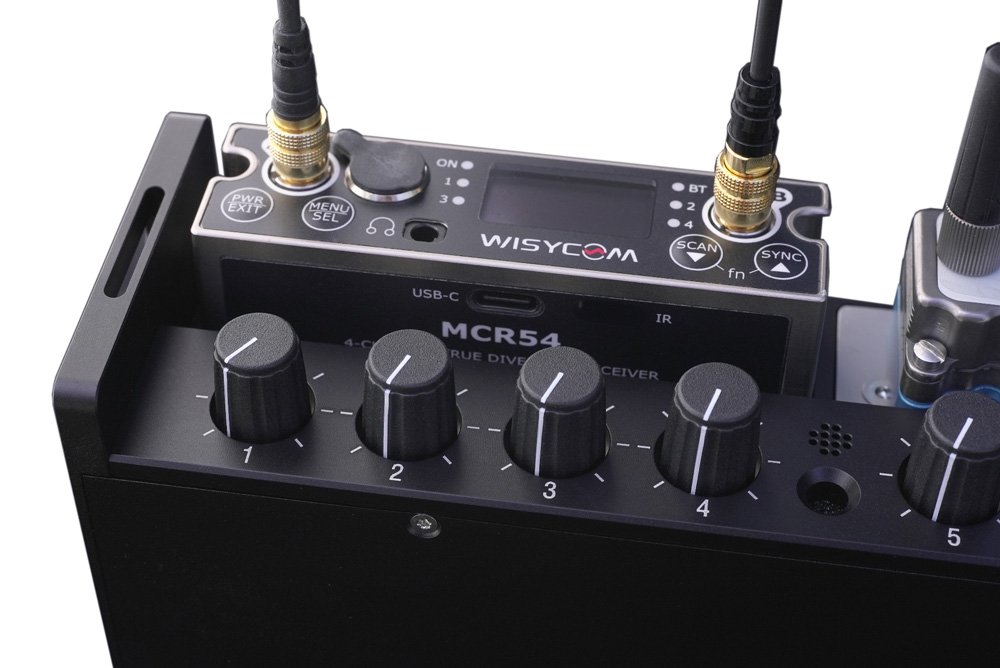

Wisycom MCR54, with SLK54-IK adapter
Lectrosonics SRc with SRSUPER and SR-AES3 adapter
Audio Limited A10-RX with or without the A-FLIP adapter
SENNHEISER EK6042 with D-Sub-25 adapter
SONY DWR-S03D with D-Sub-25 adapter
SHURE ADX5D with D-Sub-25 adapter
The slate microphone can also be assigned, or output on a separate connector.

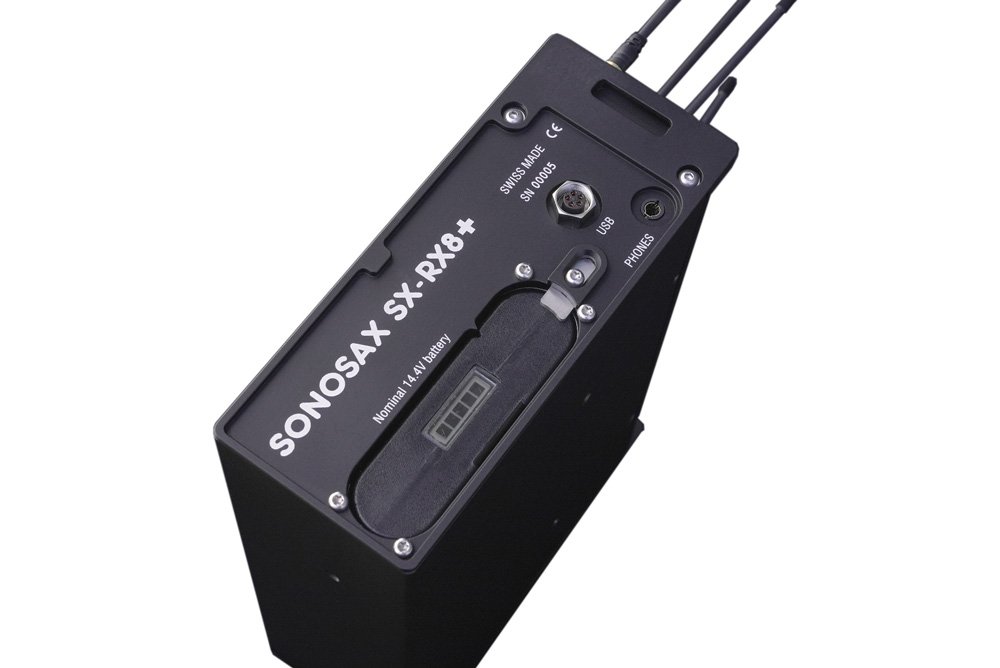

It includes a slot for a 98Wh battery that can power the receivers, the SX-RX8+ and also a recorder, such as the SX-R4+.
The 8 encoders / push buttons can be assigned as on the SX-RC8+ . Like the SX-LC8+, the SX-RX8+ can be connected by USB MIDI with other brands including Sound Devices.
Specifications
Additional information
Option 1
Minislot set : BLANK PANEL WITH SCREWS, Minislot set : FOR WISYCOM MCR42 with BPA42-IKSS, Minislot set : FOR LECTROSONIC Src with SRSUPER and SR-AES3, Minisilot set COMBI: FOR : WISYCOM MCR54 / SENHEISER EK6042 / SONY DWR-S03D/ SHURE ADX5D / Audio Limited A10-RX
Option 2
Minislot set : BLANK PANEL WITH SCREWS, Minislot set : FOR WISYCOM MCR42 with BPA42-IKSS, Minislot set : FOR LECTROSONIC Src with SRSUPER and SR-AES3, Minisilot set COMBI: FOR : WISYCOM MCR54 / SENHEISER EK6042 / SONY DWR-S03D/ SHURE ADX5D / Audio Limited A10-RX
