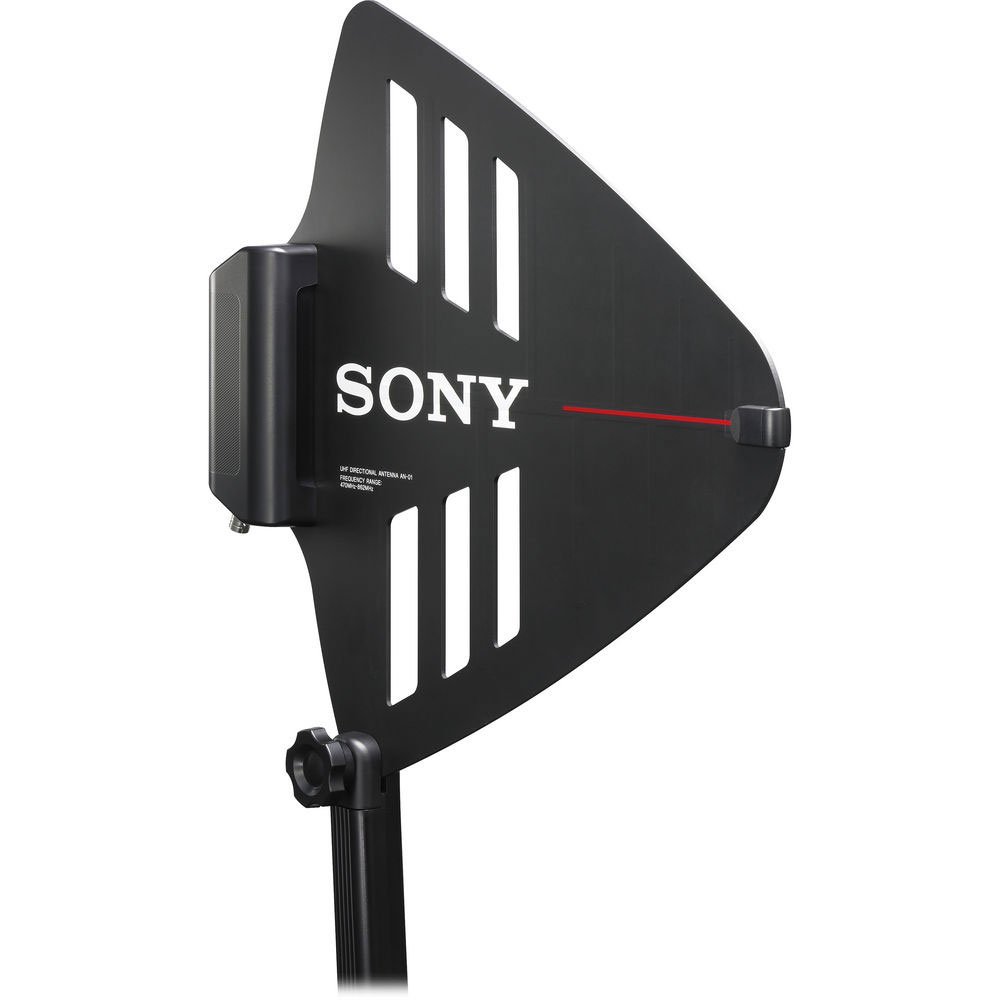

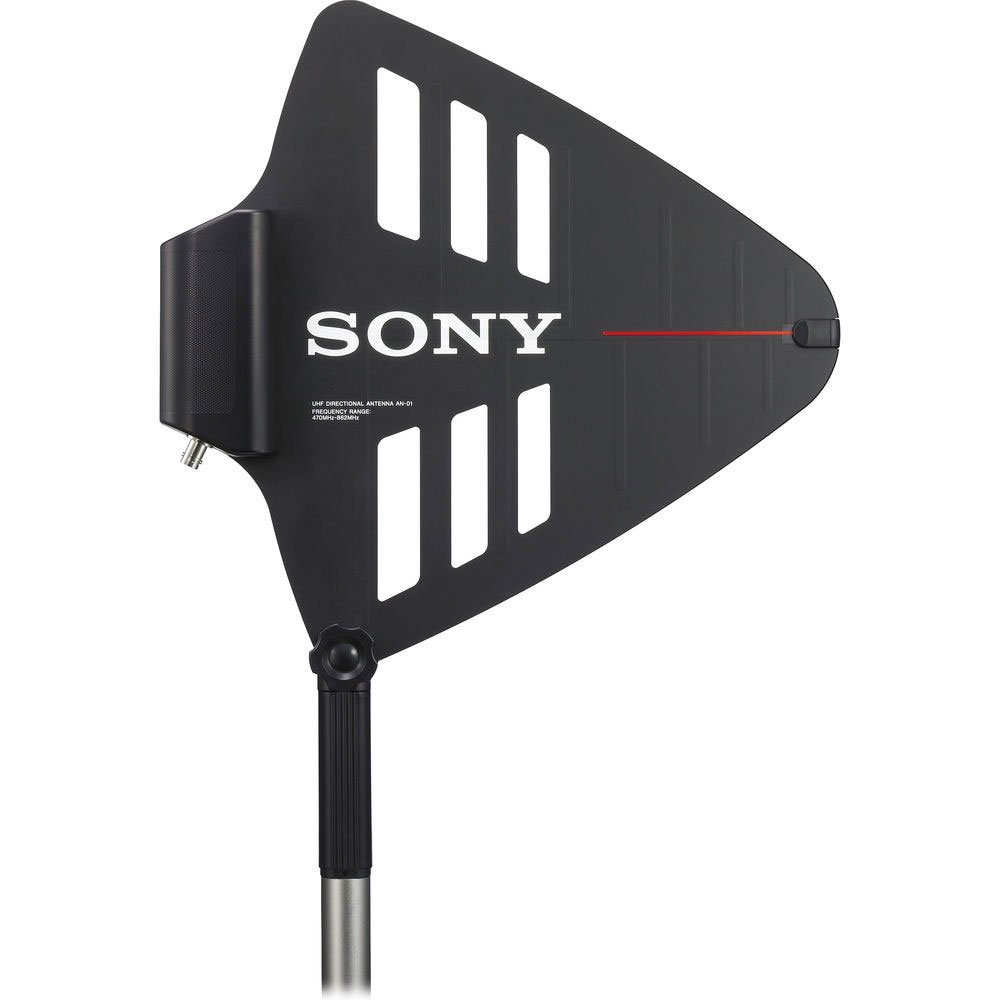

Sony AN01
MPN #AN01
$745.00
Save 12.9%, MSRP $855.00
Active UHF uni-directional antenna (470-862MHz) with a selectable booster gain of 0, 10 or 18dB
Features
The AN-01 is a uni-directional UHF Antenna, designed to be used with Sony analogue or digital wireless microphone systems.Two AN-01 should be used for diversity reception.A single AN-01 can receive a wide frequency range from 470 to 862MHz.Either DC 9V or 12V can be used for powering.Selectable booster gain (18 dB/10 dB/0 dB).The antenna is a log-periodic dipole array.It is supplied with a hand grip that supports screw mounting onto a microphone stand.
Specifications
Antenna Section
Antenna TypeLog: periodic dipole arrayDirectivity: UnidirectionalFrequency Range: 470 MHz to 862 MHzAntenna Gain: 5 dBi or moreVoltage Standing Wave Ratio: 2.5 or lessHalf Power Angle: 150 degrees or lessFront To Back Ratio: 12 dB or more
Booster Section
Frequency Range: 470 to 862 MHzBooster Gain: 18 dB/10 dB/0 dB, switchableVoltage Standing Wave Ratio: 3.0 or lessNoise Figure: 6 dB or lessThird Order Intermodulation: 60 dB or more (95 dB?VEMF input)
Input/Output
Output Connector: BNC-R, 50 ?
General
Power Requirements: 9 V/12 V DCPower Consumption: 100 mA or lessOperating Temperature: 32°F to 122°F, 0°C to 50°CStorage/Transport Temperature: -4°F to +140°F, '-20°C to +60°CDimensions *[1]: 343 x 341 x 36 mm (excluding microphone stand attachment pole/grip) (W x H x D), 13 1/2 x 13 5/8 x 1 7/16 inches (excluding microphone stand attachment pole/grip) (W x H x D)Mass: Approx. 530 g, Approx. 19 ozSupplied Accessories: Warranty card (1), Warranty booklet (1), Stand Adapter PF1/2 to W5/8 type (1), Stand Adapter PF1/2 to W3/8 type (1), Operating Instructions (1), Microphone stand attachment pole/grip (1 set)
