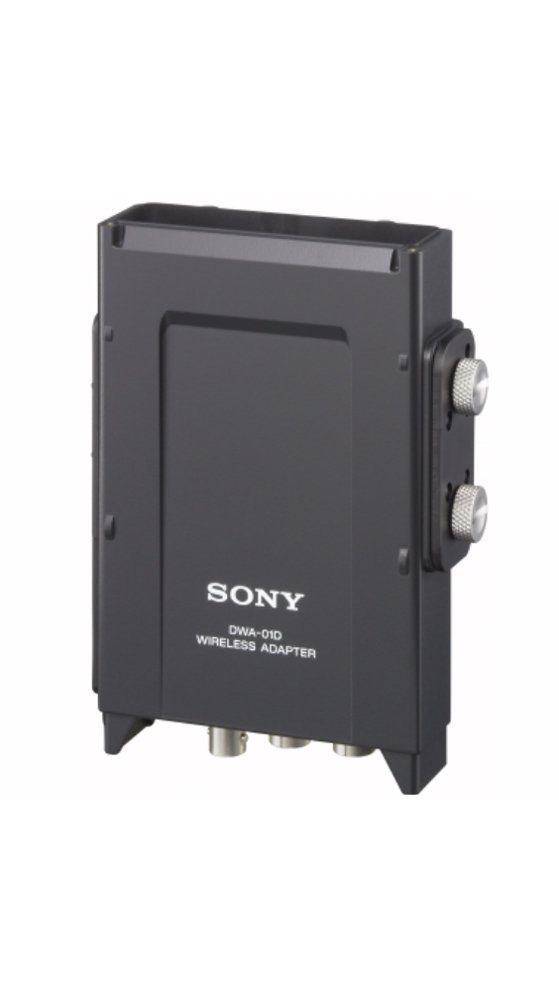

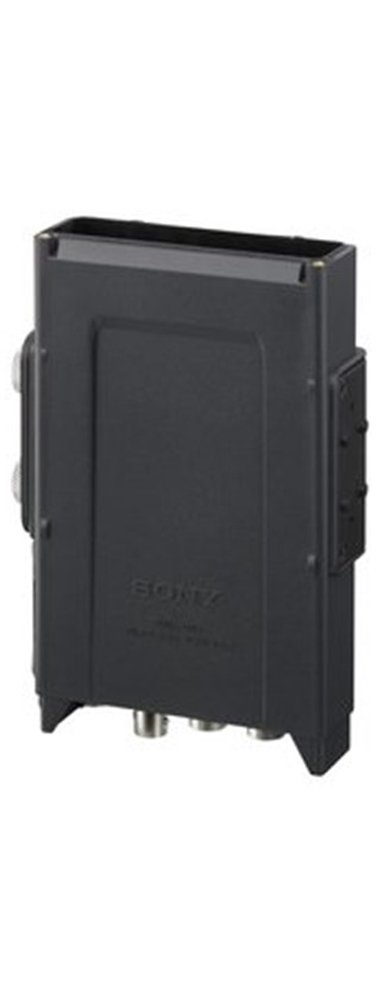

Sony DWA-01D
MPN #DWA01D
$995.00
Save 19.9%, MSRP $1242.11
Digital wireless receiver adaptor for DWR-S01D receivers
Sony is proud to introduce a digital wireless microphone system that offers high-quality full-digital operation and enhanced system performance - a perfect match for high-quality ENG/EFP applications.
Stable and Secure Transmission
Incorporating the newly developed digital modulator, the digital wireless microphone system allows highly stable wireless transmission that is extremely tolerant to unwanted interference.
Simultaneous Multi-channel Operation.
The digital wireless microphone system allows for large-scale multi-channel operations. Thanks to the newly developed digital modulator, the system realizes an intermodulation-free, equally spaced channel allocation. The digital wireless transmission technology used in this system enables a significant increase in the number of simultaneous operations in comparison with current analog wireless systems. For example, up to16 channels of simultaneous operation is possible in an 8-MHz operating band.
Features
Multiple mounting options
The DWA-01D can be used to mount DWR-S01D receiver on HDCAM/XDCAM/Digital Betacam/MPEG IMX camcorders.
Portable receiver solution
The DWA-01D can also be used for housing the DWR-S01D when a portable solution is required. Particularly when used on location with digital audio mixers such as Sony DMX-P01.
Two-channel AES3 digital or analog audio output
The DWA-01D is able to provide the user with ether a 2 Ch AES or analog outputs.
Headphone output for monitoring
A headphone output is provided via a 3.5mm mini- jack. This provides for quick and easy audio monitoring.
External dc power
External power can be easily connected via the power connector on the DWA-01D and the supplied 4-pin power cable.
Specifications
Audio Section
Analog Output: SMC9-4S (female) (x2)
Output Impedance : 150 ? or less
Digital Output: SMC9-4S (female)
Reference output level : -36 dBFS/-20 dBFS (switchable)
Output Impedance : 110 ? or less
Headphone Output: Output level : 50mW (16 ? load, at T.H.D = 1 %)
o3.5 mm(5/32 inch) stereo mini jack
Word Sync: Input Impedence : 75 ?
Input connector : BNC-R
External Word Sync : 32 kHz to 96 kHz
Power Requirements: 4-pin DC input, 10 V DC to 17 V DC (12 V DC nominal)
Operating Temperature: 32°F to 122°F, 0°C to 50°C
Storage/Transport Temperature: -4°F to +140°F, '-20°C to +60°C
Dimensions: 88 x 144 x 31.5 mm
3 1/2 x 5 3/4 x 1 1/4 inches (W x H x D)
Mass: Approx. 330 g (excluding receiver), Approx. 11.6 oz (excluding receiver)
Supplied Accessories:
Warranty booklet (1)
Operating Instructions (1)
Mount plate (1)
DC power cable (1)
Audio cable (2)
