Sony ECM88B
$850.00
Save 2.6%, MSRP $872.37
Omnidirectional electret condenser, ultra-miniature 3.5mm size, 20Hz"20kHz response, 125dB SPL max, low noise, 8.2ft cable, XLR or 4-pin powered.

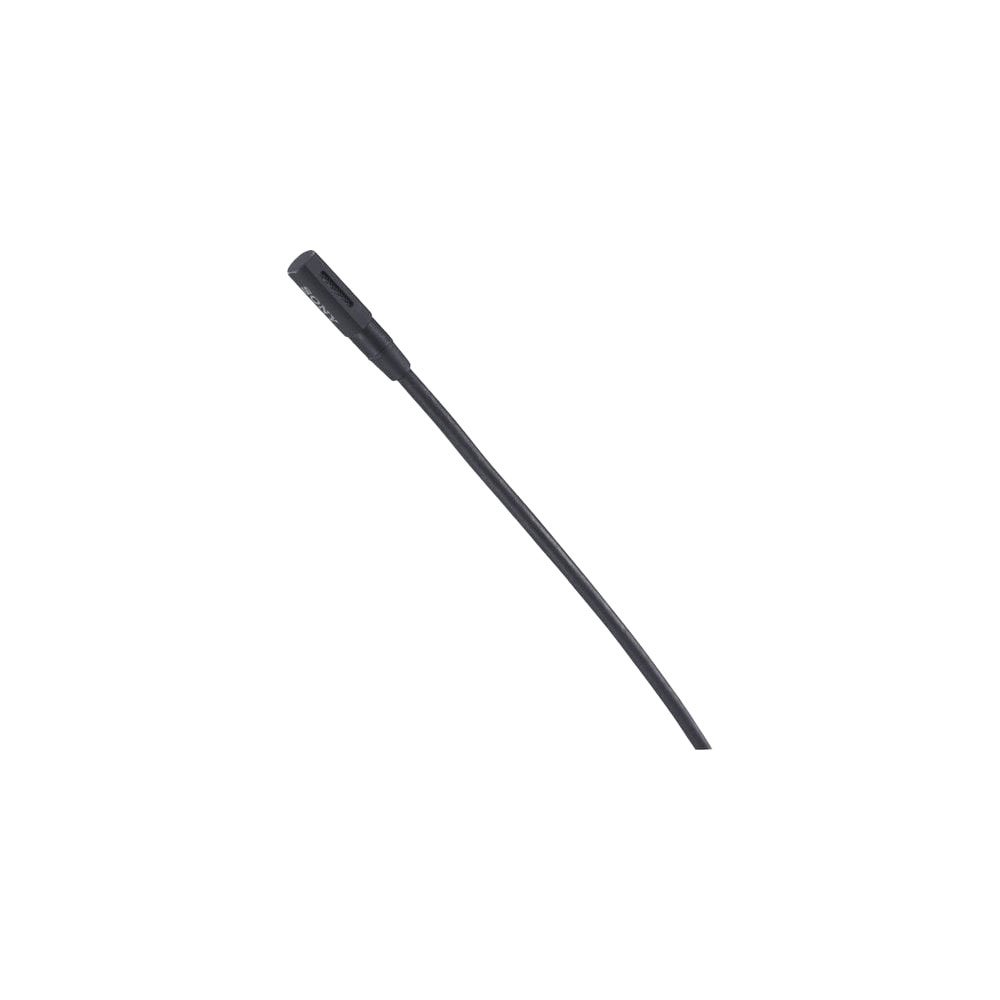

The Sony ECM-88B is an ultra-miniature, omni-directional electret condenser lavalier microphone designed for applications demanding pristine audio quality and minimal visual intrusion. Tailored for studio broadcasting and professional video production, it features a sophisticated dual-diaphragm design that enhances sensitivity, expands dynamic range, and minimizes inherent noise. With a flat, extended frequency response from 20 Hz to 20 kHz, the ECM-88B captures voices and instruments with exceptional clarity and naturalness, making it ideal for high-stakes media environments.

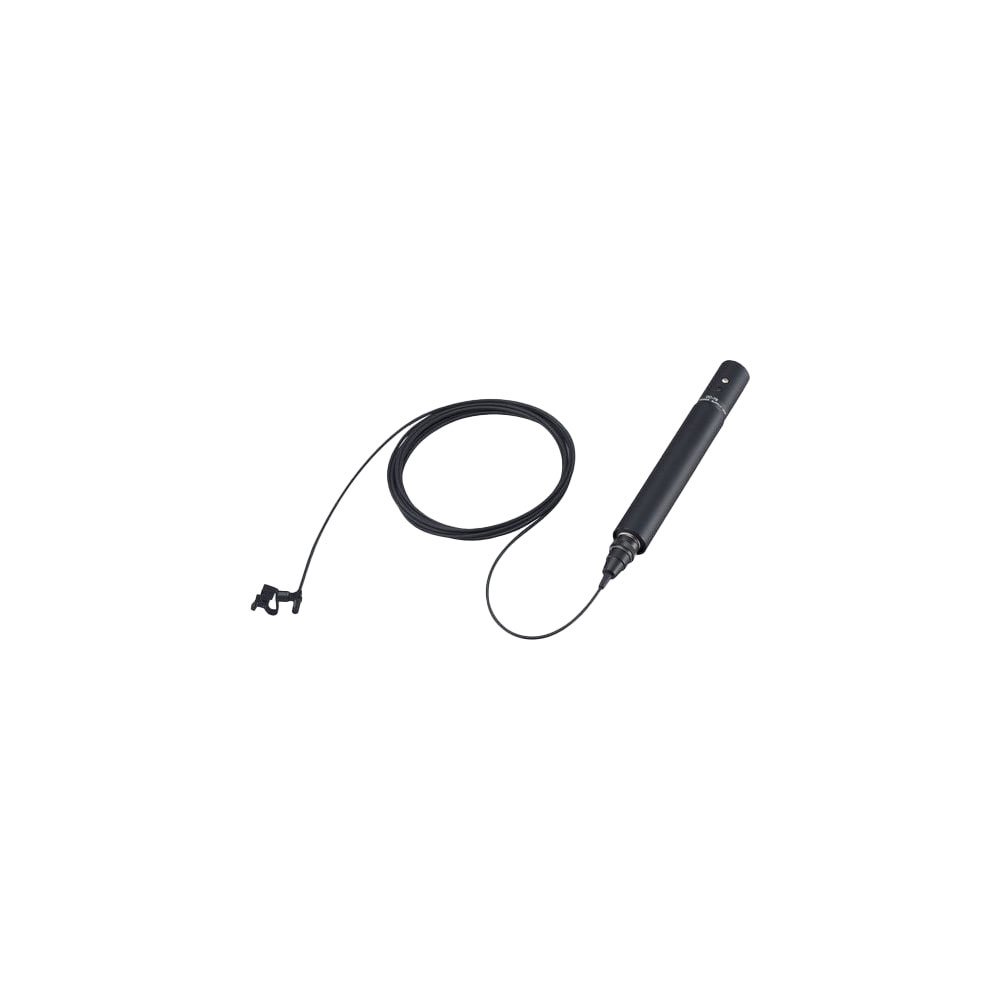

This microphone is built to endure varied shooting conditions, featuring a water-resistant construction that ensures consistent performance even in challenging environments. A unique diaphragm mounting structure significantly reduces cable noise-a common issue in lavalier setups-allowing for cleaner recordings in movement-intensive scenarios. The ECM-88B includes a DC-78 power supply unit, which supports both phantom power and AA battery operation, offering flexibility in field and studio setups.
Despite its rugged capabilities, the ECM-88B remains remarkably compact. The microphone head measures just 3.5 mm in diameter and 16.8 mm in length, making it one of the smallest in its class. Its feather-light build-less than 1 gram-ensures comfort and invisibility when worn. The included accessories, such as tie clips, a windscreen, and a mic case, further support diverse mounting and handling needs. Whether mounted discreetly on clothing or integrated into a headset, this microphone delivers consistent, high-quality audio ideal for broadcast, stage, and corporate use.
Features
Ultra-miniature lavalier microphone designed for high-quality broadcast and studio useOmni-directional pickup captures natural sound from all directionsDual-diaphragm design offers high sensitivity, wide dynamic range, and low noiseSpecial diaphragm mounting reduces cable noise common in lavalier micsFlat and wide frequency response from 20 Hz to 20 kHz for clear, accurate audioWater-resistant construction ensures reliable performance in various environmentsSupports battery operation or external DC power (with included DC-78 unit)Supplied with 4-pin connector and DC-78 power supply for XLR outputLong 8.2-foot cable provides flexibility in setupsIncludes windscreen, tie clips (vertical, horizontal, and double), ferrite clamp, case, and instructions
Specifications
General Specifications
Model: Sony ECM-88BMicrophone Type: Electret condenserPolar Pattern: Omni-directionalApplication: Lavalier microphone for studio and broadcastMounting: Tie clip (single vertical, horizontal, double clip)Water Resistant: YesDimensions Mic Head: 3.5 mm diameter x 16.8 mm lengthDimensions Power Unit: 20 mm diameter x 144 mm lengthWeight with DC Power Supply: 160 gramsWeight Mic Only: 0.5 grams
Audio Specifications
Frequency Response: 20 Hz to 20 kHzSensitivity: -52 dB plus minus 2 dB with DC power unit, -39 dB or 11.2 mV for 4-pin versionOutput Impedance: 30 ohms unbalanced, 100 ohms balanced with DC-78Dynamic Range: 99 dB or moreSignal to Noise Ratio: 68 dB or more (A-weighted)Inherent Noise: 26 dB SPL or lessInduction Noise from Magnetic Field: 5 dB SPL or lessWind Noise with Windscreen: 45 dB SPL or lessMax Input SPL: 125 dB SPL
Connectivity
Connector Type: SMC9-4P 4-pin on microphone, XLR-3-12C male via DC-78 power unitCable Length: 2.5 meters
Power Requirements
Power Options: AA battery or DC 12 to 48 V via DC-78, or DC 1.1 V to 10.0 V via 4-pinBattery Type: LR6 AA sizeBattery Operating Time: Approx 6000 hoursPower Consumption: 0.3 mA or less internal, 2 mA or less external
Included Accessories

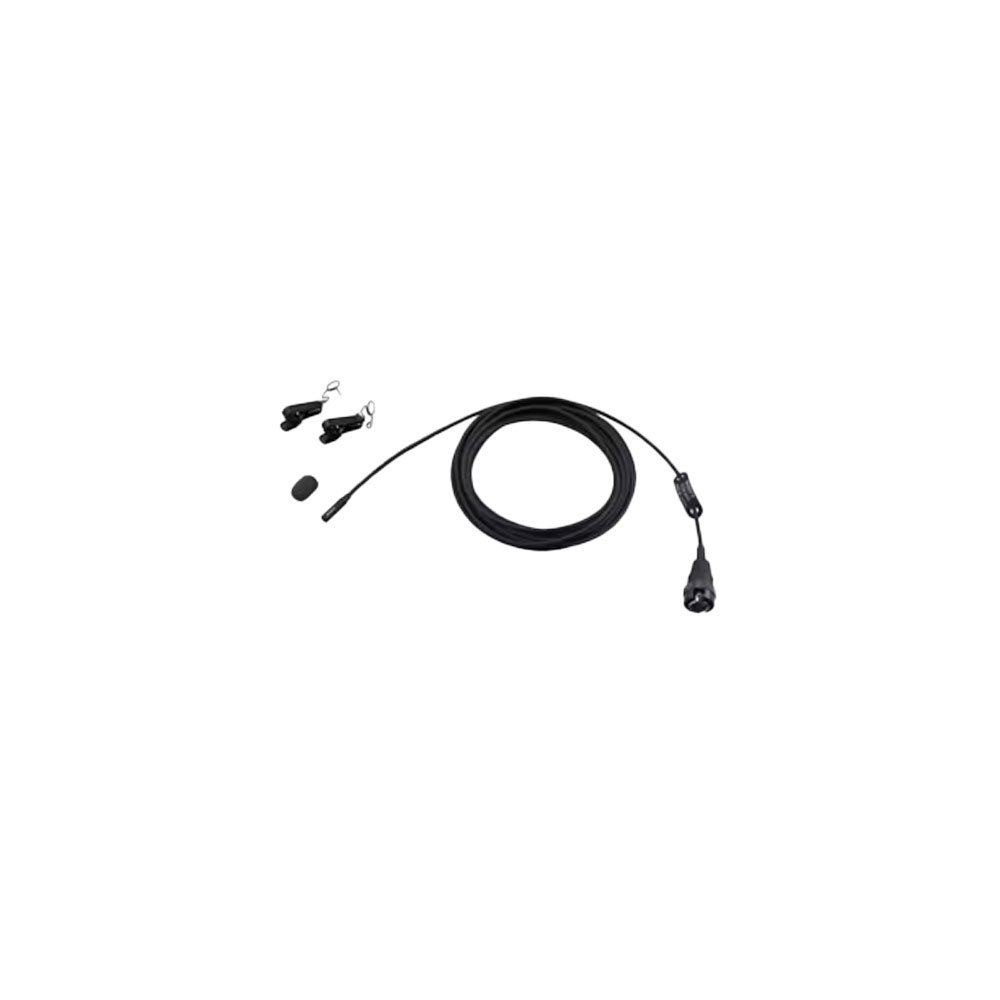

Windscreen (Urethane type)Vertical tie clipHorizontal tie clipDouble horizontal tie clipFerrite clampOperating instructionsMicrophone caseDC-78 power supply unit
Optional Accessories
Wind screen packVertical clip packSafety clip packHorizontal clip packDouble clip packColor windscreen packBlack windscreen packAccessory kit
