Sony ECM90LM
$552.00
Save 20.1%, MSRP $690.79
Omnidirectional electret condenser, ultra-mini 3.5mm size, 20Hz"20kHz response, 125dB SPL max, 5.2ft cable, Lemo 3-pin, shielded for digital wireless.

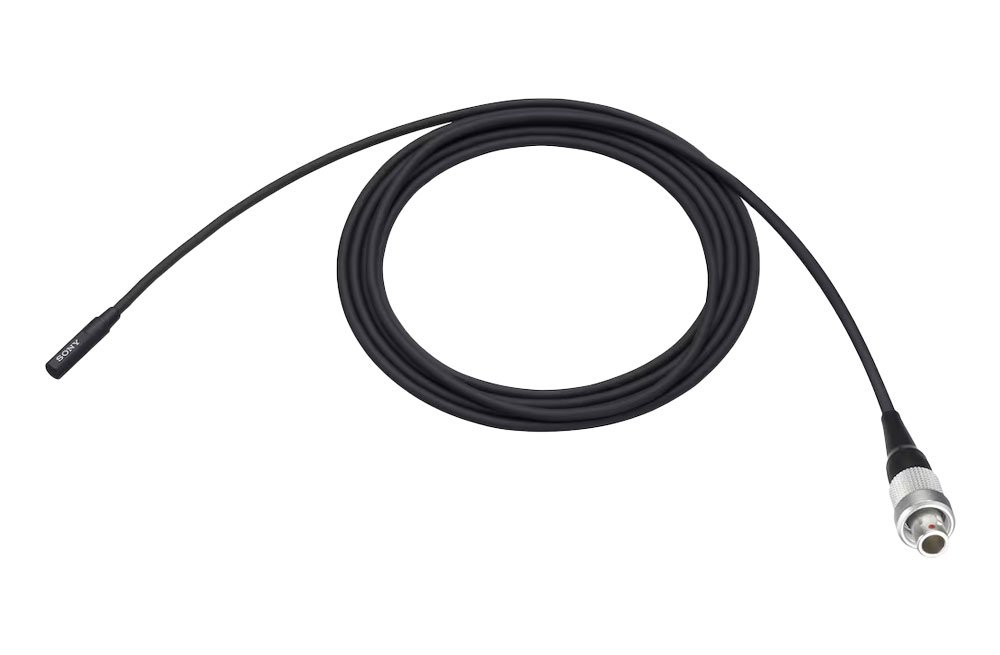

The Sony ECM-90LM is an ultra-miniature, omni-directional electret condenser lavalier microphone designed to meet the rigorous demands of ENG (Electronic News Gathering), studio production, EFP (Electronic Field Production), and location sound applications. With its refined dual-diaphragm design, this model offers high sensitivity, a broad dynamic range, and impressively low noise levels. The flat frequency response from 20 Hz to 20 kHz ensures a transparent, natural sound that faithfully captures voices and ambient audio alike.
Engineered for field reliability, the ECM-90LM features a water-resistant housing and a uniquely constructed diaphragm mount that reduces cable-induced noise-ideal for active or mobile recording situations. Moreover, the microphone is fully shielded, making it compatible with digital wireless transmitters without introducing interference or audio artifacts.
Despite its performance capabilities, the ECM-90LM maintains a compact form factor. The microphone head measures only 3.5 mm in diameter and weighs just 1 gram, allowing for easy concealment under clothing or in costumes-perfect for broadcast and theatrical use. It includes a 3-pin Lemo connector, making it compatible with a wide range of professional wireless systems, particularly those in the Sony DWX Series.
This microphone comes with essential accessories including a windscreen and both vertical and horizontal tie clips, allowing for quick deployment in a variety of setups. Its 1.6-meter cable provides ample length for flexible mic placement in interviews, film shoots, or live presentations.
Features
Ultra-miniature lavalier microphone designed for critical audio work in ENG, studio, EFP, and location soundOmni-directional pickup captures natural sound evenly from all directionsDual-diaphragm design provides high sensitivity, wide dynamic range, and low self-noiseDiaphragm mounting minimizes common cable noise found in lavalier microphonesFlat and wide frequency response from 20 Hz to 20 kHz ensures clear, lifelike audioWater-resistant construction maintains sound quality in diverse environmentsShielded for reliable performance with digital wireless transmittersFeatures a 3-pin Lemo connector and 5.2-foot cablePowered directly through Sony wireless system transmittersIncludes windscreen, vertical and horizontal tie clips, and operating instructions
Specifications
General Specifications
Model: Sony ECM-90LMMicrophone Type: Electret condenserPolar Pattern: Omni-directionalApplication: Lavalier microphone for ENG, studio, EFP, and location soundShielding: Compatible with digital wireless transmittersWater Resistant: YesDimensions Mic Head: 3.5 x 3.5 x 20.5 mmWeight Mic Only: 1 gram
Audio Specifications
Frequency Response: 20 Hz to 20 kHzSensitivity: -40 dB or 10 mVOutput Impedance: 6.3 kiloohms, unbalancedDynamic Range: 99 dBSignal to Noise Ratio: 68 dB (A-weighted)Inherent Noise: 26 dB SPLWind Noise with Windscreen: 45 dB SPL or lessMax Input SPL: 125 dB SPL
Connectivity
Connector Type: 3-pin Lemo connectorCable Length: 1.6 meters
Power Requirements
Power Source: Supplied from Sony wireless system transmitters
Included Accessories
Windscreen (Urethane type)Vertical tie clipHorizontal tie clipOperating instructions
Optional Accessories
Wind screen packVertical clip packSafety clip packHorizontal clip packDouble clip packColor windscreen packBlack windscreen packAccessory kit
