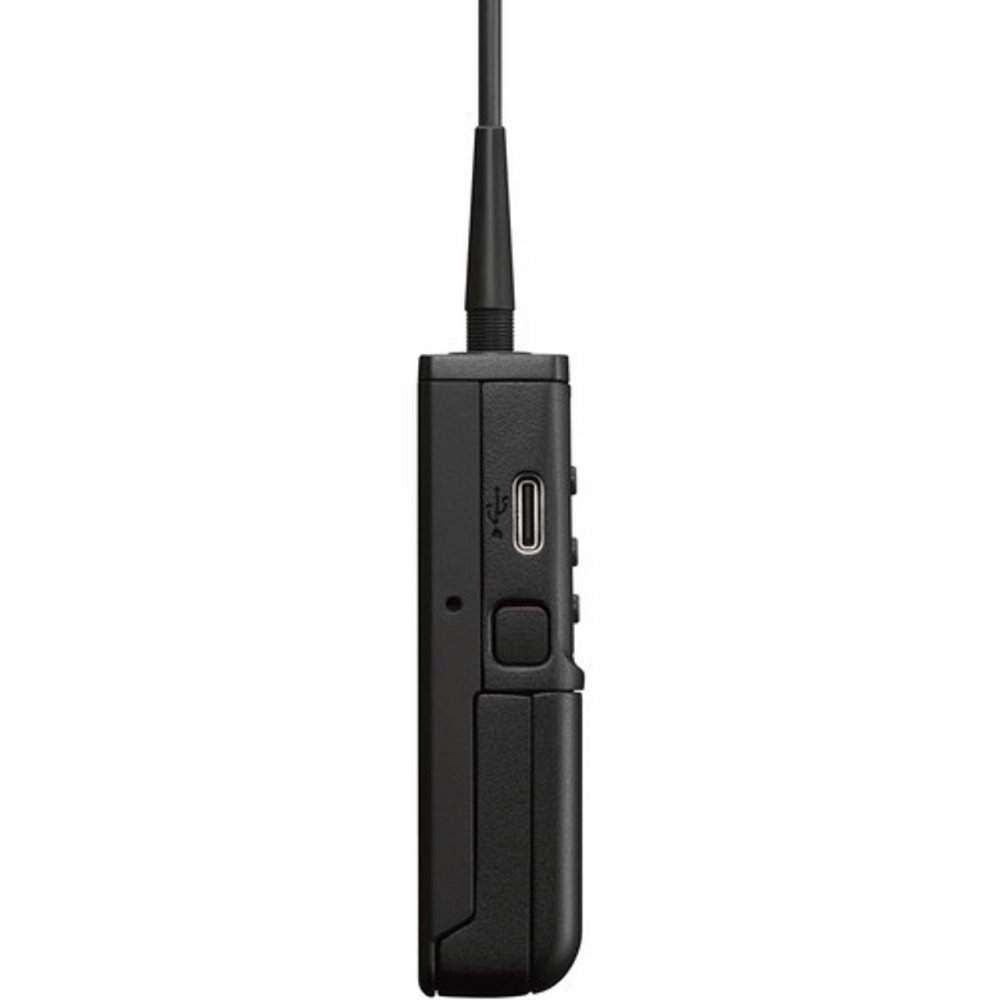

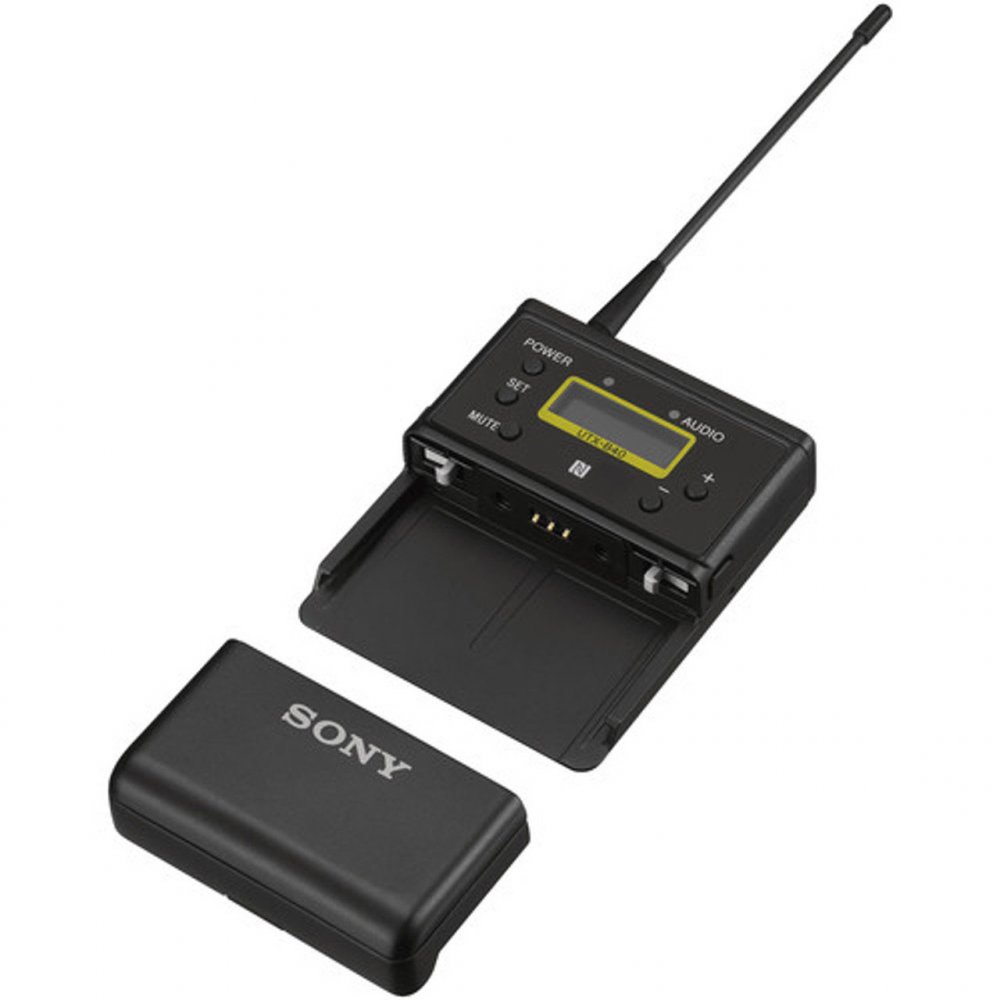

Sony UTX-B40/25
MPN #UTXB40/25
Bodypack transmitter for UWP-D series systems (UC25: 536 to 608 MHz)
The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today?s content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources.
Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.
Digital audio processing for high quality sound
Advanced digital audio processing technology by Sony assures high quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.
Fast, easy frequency setting
Sony?s uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel setting between transmitter and receiver.
Light, compact design
Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings and remote production. The receiver?s compact size and light weight make it an ideal partner for use small camcorders and interchangeable lens digital cameras.
Features
High quality sound with Sony digital audio processingNFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)Auto gain mode volume control+15 dB gain volume boost mode for off-mic audioLine inputTransmitter frequency sent to receiver for matching multiple receivers to one transmitterVariable muting functionCompatibility with Sony WL-800/UWP/UWP-D seriesHigh visibility OLED display, ideal for indoor/outdoor useUSB connector for power supplyIncludes ECM-V1BMP lavalier microphone
Specifications
Oscillator Type : Crystal-controlled PLL synthesizer
Antenna Type : 1/4 ? wavelength wire antenna
Carrier Frequencies : 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
RF Output Power : 30 mW/5 mW selectable (UC, U, CE, LA, CN models)
Capsule Type : Electret condenser
Directivity : Omni-directional
Input Connector : 3.5mm diameter 3-pole locking mini jack
Reference Audio Input Level :
-60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)+4 dBu (LINE input)Audio Attenuator Adjustment Range : 0 dB to 27 dB (3dB steps)
Frequency Response : 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
Signal-to-Noise Ratio :
60 dB (-60 dBV, 1 kHz input)102 dB (GAIN MODE set to AUTO GAIN, max.)96 dB (GAIN MODE set to NORMAL, max.)Distortion : 0.9% or less (-60 dBV, 1 kHz input)
Audio Delay : Approx. 0.35 ms
Tone Signal Frequency :
In UWP-D compander mode: 32.382 kHzIn UWP compander mode: 32 kHzIn WL800 compander mode: 32.768 kHzDisplay : OLED
Power Requirements :
DC 3.0 V (two LR6/AA size alkaline batteries)DC 5.0 V (supplied from USB Type-C connector)Battery life* :
Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).Operating Temperature : 0 °C to 50 °C (32 °F to 122 °F)
Storage/Transport Temperature : -20 °C to +55 °C (-4 °F to +131 °F)
Dimensions : 63 - 73 - 19 mm (2 1/2 - 2 7/8 - 3/4 in.) (W / H / D) (excluding antenna)
Mass : Approx. 83 g (2.9 oz) (excluding batteries)
