Sony UTX-M40/14
MPN #UTXM40/14

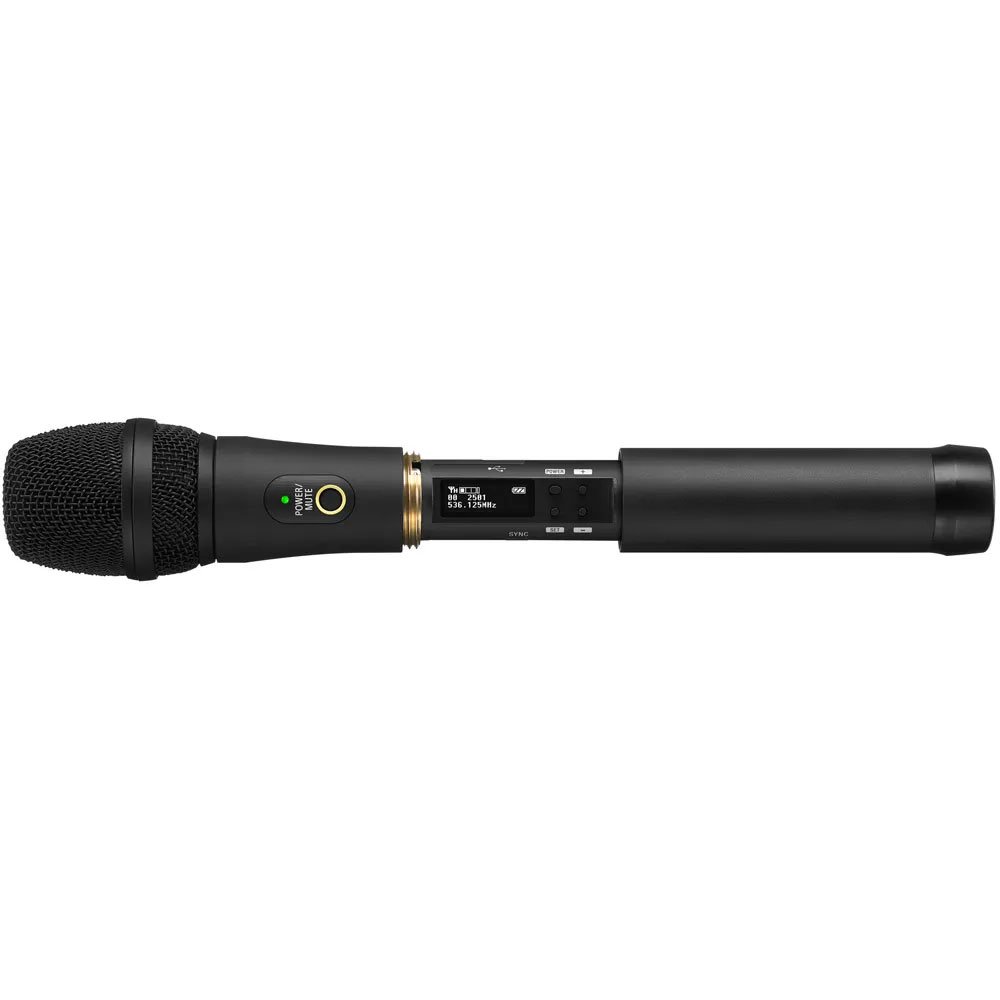

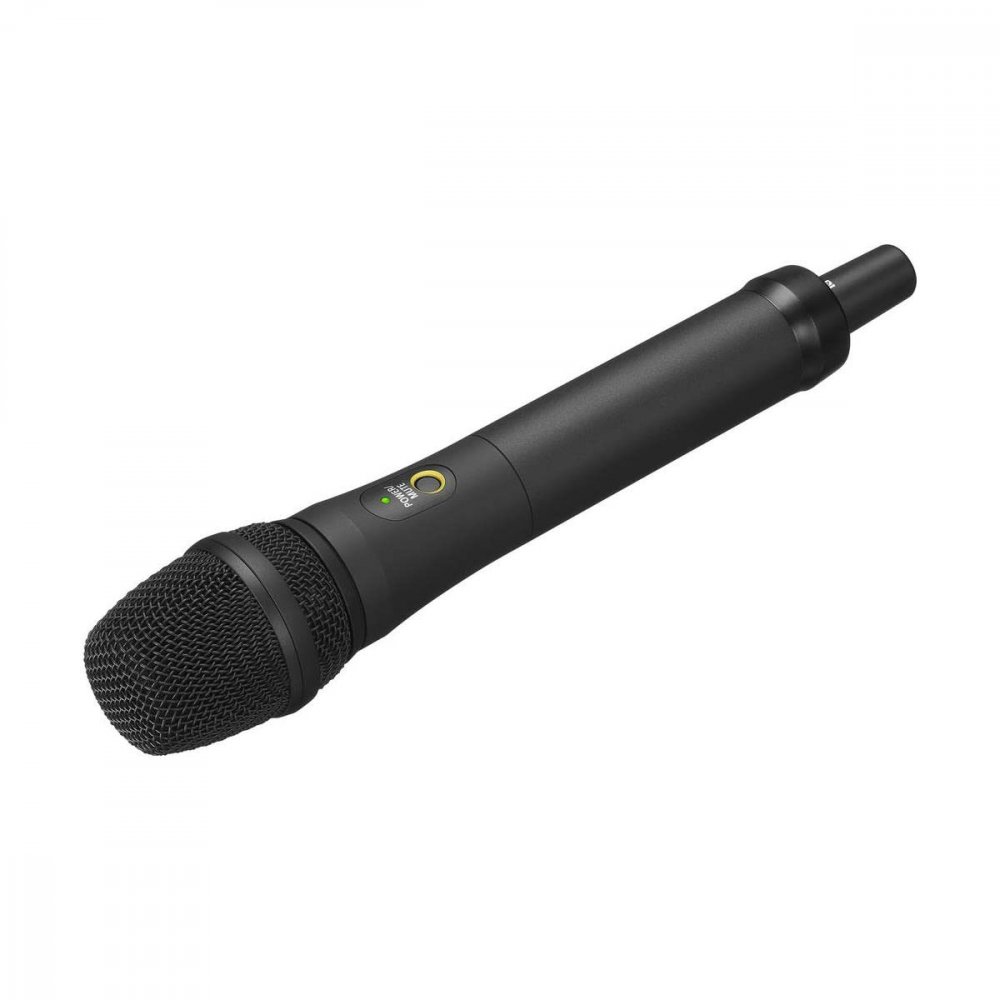

Handheld wireless microphone transmitter for UWP-D series systems with unidirectional capsule (UC14: 470 to 542 MHz)
The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today?s content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources.Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.
Digital Audio Processing for high quality sound
Advanced digital audio processing technology by Sony assures high quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.
Fast, easy frequency setting
Sony?s uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel setting between transmitter and receiver.
Light, compact design
Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings and remote production. The receiver?s compact size and light weight make it an ideal partner for use small camcorders and interchangeable lens digital cameras.
Features
High quality sound with Sony digital audio processingNFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)Interchangeable head for wide choice of microphone capsulesAuto gain mode volume control+15 dB gain volume boost mode for off-mic audioTransmitter frequency sent to receiver for matching multiple receivers to one transmitterVariable muting functionCompatibility with Sony WL-800/UWP/UWP-D seriesHigh visibility OLED display, ideal for indoor/outdoor use
Specifications
Antenna Type: 1/4 ? wavelength wire antenna
Audio Attenuator Adjustment Range: 0 dB to 21 dB (3 dB steps)
Audio Delay: Approx. 0.35 ms
Battery life*: Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
Approx. 10 hours with output power of 10 mW (J, E, KR models)
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
Capsule Type: Dynamic
Carrier Frequencies: 14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
Dimensions: ø48 - 258 mm (1 15/16 - 10 1/4 in.) (diameter / length)
Directivity: Uni-directional
Display: OLED
Distortion: 0.9% or less ("60 dBV, 1 kHz input)
Frequency Response: 70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
70 Hz to 15 kHz (Typical) (J model)
Mass: Approx. 255 g (9.0 oz) (excluding batteries)
Maximum Audio Input Level: 151 dB SPL (21 dB attenuation, using supplied microphone unit)
Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
Oscillator Type: Crystal-controlled PLL synthesizer
Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)
RF Output Power: 30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)
Reference Audio Input level: "55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)
Signal-to-Noise Ratio: 60 dB ("60 dBV, 1 kHz sine wave input)
102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)
Storage/Transport Temperature: -4°F to 140°F (-20°C to +60°C)
Tone Signal Frequency: In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz
