UHF antenna divider for up to four Sony receivers/tuner base units
Features
Provides diversity output for up to four receivers/tuner base units
Power supplied to the Sony UHF antenna

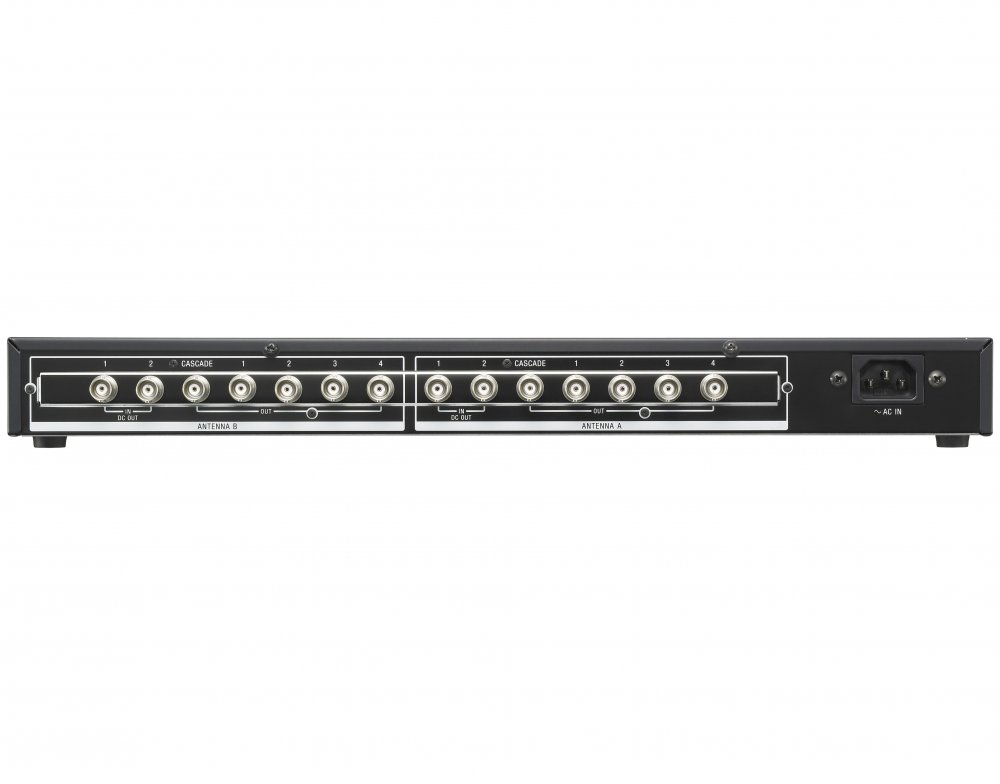

Cascade output can be used for an additional antenna-divider or receiver/tuner base unit
Two pair of antenna input connectors to expand the operating area of a wireless microphone system
Specifications
Frequency range: US : 470 to 806 MHz CE : 470 to 862 MHz J : 770 to 810 MHz
Channel distribution: Inputs: 2 pairs Outputs: 4 pairs
Antenna Input/Output: BNC-R, 50 ohms
Cascade output: 1 pair

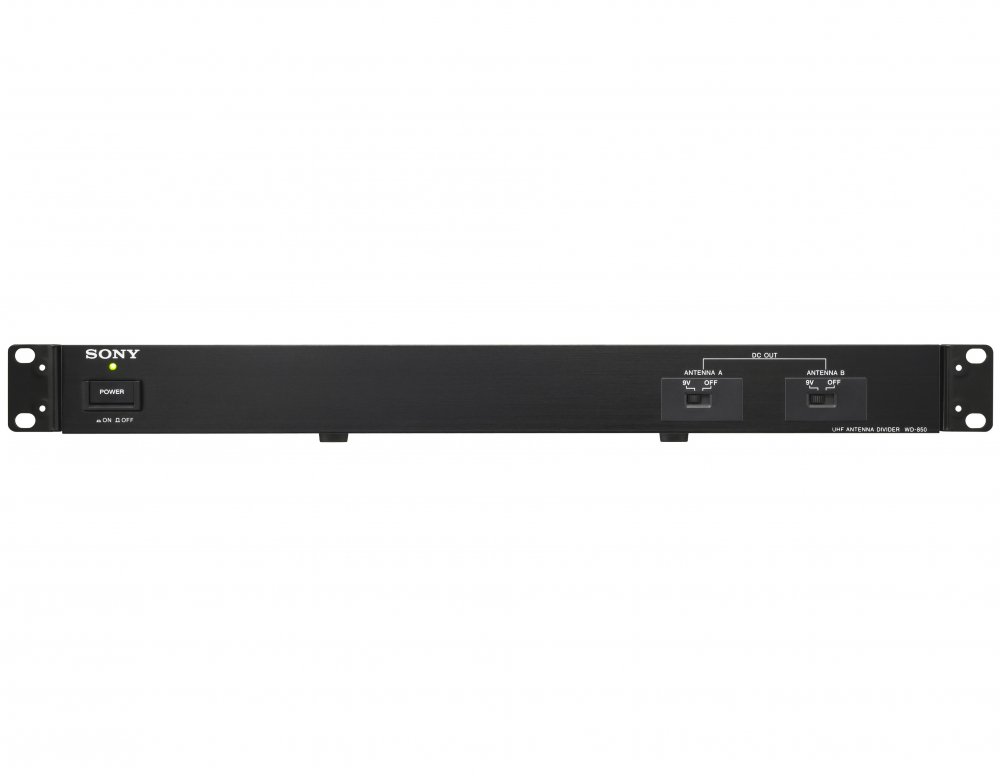

Power supply for antenna booster (supplied from antenna input connectors): DC 9 V/OFF switchable
Power requirements: US: 120 V AC, 60 Hz CE: 230 V, 50 Hz J: AC l00V, 50Hz/60Hz
Power consumption: 18 W (when 100mA is being supplied to the antenna booster)
Dimensions (W x H x D): Approx. 482 - 44 - 285 mm (19 x 1 3/4 x 11 1/4 inches)
Mass: Approx. 4.4 kg (9 lb 11 oz)
