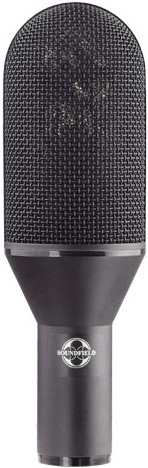

The DSF-1 is a digital surround microphone system aimed at the discerning concert venue broadcast and recording markets, ideal for capturing music in both stereo and surround.
Digital Music Performance Microphone System - Comprising of DSF-1 Microphone, DSF-1 Control Unit, 20m
Mic Cable, Leather Microphone Case, Shock Mount and Foam Windshield (B-format/Stereo outputs on
balanced AES outputs).
Gain indicator LEDs (up to 40dB) in 3dB stepsSwitchable fixed threshold Limiter to prevent 'digital overload'End Fire - maintains correct 3D perspective in surround and stereo when mic is horizontalInvert - maintains correct 3D perspective in surround and stereo when mic is suspended upside downSwitchable 26 segment B-Format / Stereo bargraphs 0 to -37.5dBfs rangeRotate - offers 360° mic rotation with switchable Coarse (10° steps) and Fine (1° steps) modeSwitchable 40Hz or 80Hz Hi-pass filter with status LEDMid/Side - switches stereo outputs from Left/Right to M/SVariable Polar Pattern and Angle (width) for stereo outputSample rate selector: 44.1K, 48K, 88.2K, 96K, 176.4K, 192K and External ClockStereo headphone monitoring section with level controlPower/Status LED
Manufacturer Part Number : DSF-1 MK2
