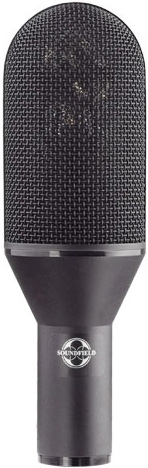

The DSF-2 consists of a DSF-2 microphone and DSF-2 microphone controller.
Uniquely, the multi-channel audio that the DSF-2 microphone system generates from a 'single point' source is completely phase coherent. This enables the broadcaster to collapse the surround to stereo or mono for TV and radio feeds without loss of information, frequency imbalance or any of the other phase problems associated with spaced microphones or multi capsule 'dummy head' arrangements.

The DSF-2 controller outputs stereo, M/S, and four-channel B-Format which can be decoded into any current surround format using the hardware DSF-3 or Surround Zone software plug-in. All microphone parameters can be adjusted from the DSF-2 controller without the need to physically move the mic itself, including orientation, angle, pickup pattern and a unique Mic Rotate control.

Mic gain control

Analogue Limiter to catch crowd 'peaks' without harsh digital clipping

26 segment LED metering of B-Format, or stereo and M/S

Stereo Controls: variable polar pattern, stereo width and Hi-pass filter

Headphone jack for monitoring

Capable of driving a mic cable of up to 250m in length

Connection to coaxial cables of up to 1km long (digital o/p)
