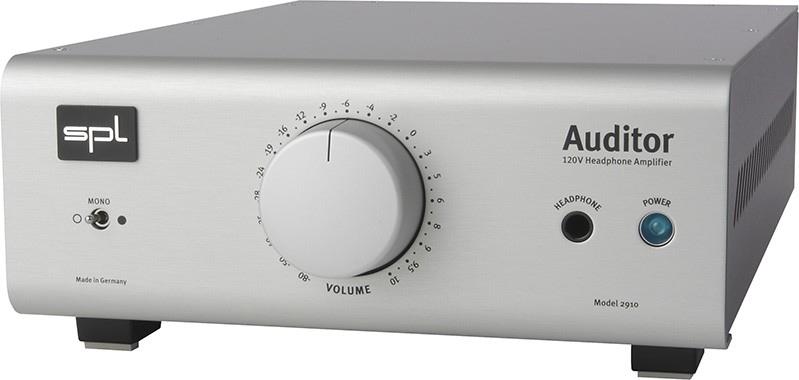

SPL Auditor

120 V Headphone Amplifier - Model 2910

The Auditor is our interpretation of a high-end headphone amplifier. We strictly followed a purist approach to achieve the highest sound quality.

The basis for such high-end developments is our proved 120 volts reference technology. Core elements are the handmade SPL SUPRA op-amps running on 120 volts it corresponds to approximately twice that of most modern analog audio semiconductor technologies. Through such 120 volts circuitry and processing we reach performance levels far beyond conventional designs in dynamic range and distortion levels, and such technical specifications exceed all known analog or digital standards.

In other words: simply sounds.

Specifications

Audio
  • Frequency Response: 5 Hz to 200 kHz (-3 dB)
  • CMR:-80 dBu (@1 kHz, 0 dBu input level and unity gain)
  • Crosstalk: -84 dB (@1kHz)
  • THD: 0,001 % (@ 1kHz, 0 dBu input level and unity gain)
  • Noise: -97 dBu (A-weighted)
  • Dynamic Range: 129 dB (@ 600 Ohms Impedance)

  • Inputs (XLR connections, electronically balanced)
  • Impedance: ca. 20 Ohms balanced/ca. 10 Ohms unbalanced
  • Maximum Input Level: +24dBu

  • Outputs:
  • XLR Connections: Input thru, electronically balanced
  • Headphone Output: 6,35 mm stereo TRS connection
  • Pin Wiring Tip = left, Ring = right, Shaft = GND
  • Impedance: 9 Ohms

  • Power Amplifier
  • Max. Output Performance:
  • 1,7W (+32,2dBm) @ 1 kHz and 600 Ohms connection
    360mW (+25,6dBm) @ 1 kHz and 30 Ohms connection

    Power Supply
  • Voltages: 230V AC, 50Hz/120V AC, 60Hz
  • Power Consumption:max. 5,6?W/7,9??VA/0,03?A
  • Fuses (slow blow): 200-240 V AC: 200 mA/100-120 V AC: 400 mA

  • Dimensions & Weight
  • Height x width x depth: 95 x 210 x 315 mm
  • Height with lifted feet: 127 mm
  • Depth with volume knob: 335 mm
  • Weight: 2.65 kg

  • 0dBu = 0,775V. Subject to change without notice.





    Rental

      Price/Day Total
    1 Day $25.00 $25.00
    3 Days $16.75 $50.25
    5 Days $12.50 $62.50
    12 Days $8.50 $102.00
    28 Days $5.50 $154.00
