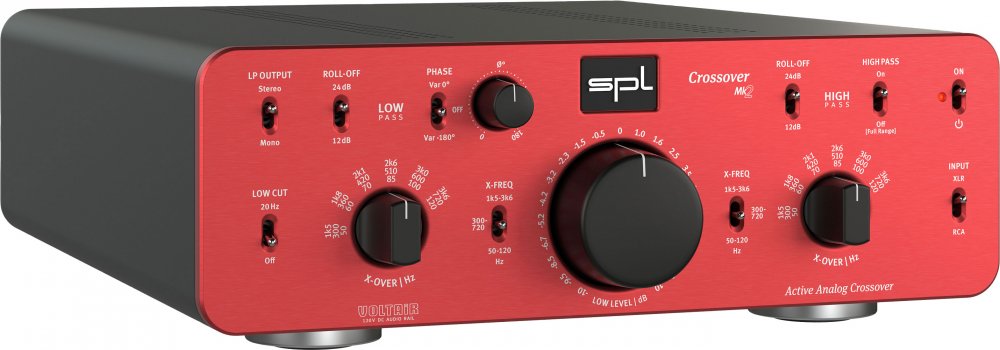

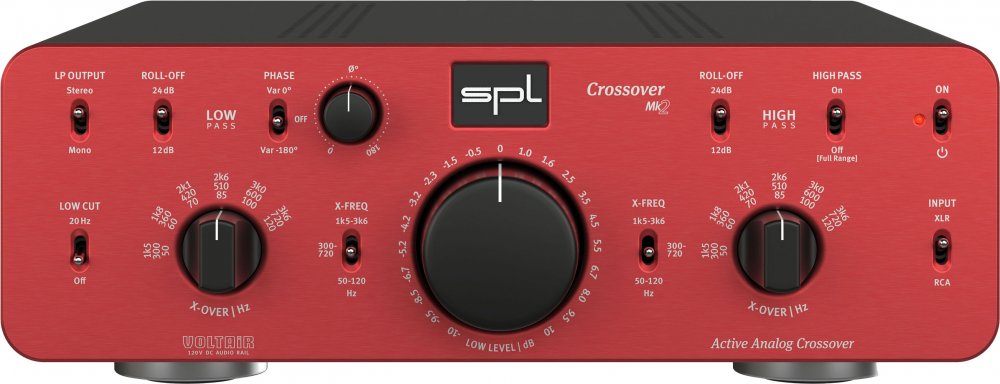

SPL Crossover Mk2 (Red)
UPC/EAN #4260149320155
MPN #2434
$4799.00
Save 9.4%, MSRP $5299.00
Analog crossover with VOLTAiR technology, adjustable frequencies (20 Hz"3.6 kHz), phase control, RCA/XLR connectivity, red finish, pro-grade sound.
The SPL Crossover Mk2 Red is a premium analog crossover designed for precise subwoofer and main speaker integration in high-end audio systems. Unlike digital crossovers, it preserves pure analog sound, delivering warm, natural audio with exceptional clarity. With adjustable LOW PASS and HIGH PASS frequencies ranging from 20 Hz to 3.6 kHz, it ensures perfect harmony between bass and treble for seamless customization.
Powered by VOLTAiR Technology with a 120V DC operating voltage, the Crossover Mk2 Red provides unmatched headroom, dynamic range, and signal integrity. It features gold-plated RCA and XLR connections, a LOW CUT filter to eliminate subsonic noise, and advanced PHASE control for flawless synchronization and powerful sound performance. Its bold red finish makes a striking statement in any SPL Professional Fidelity setup.
Features
Analog crossover with VOLTAiR technology for superior soundX-FREQ switch: three frequency ranges (50-120 Hz, 300-720 Hz, 1.5-3.6 kHz)ROLL-OFF switch: selectable slopes of 12 dB or 24 dBLow-cut filter removes unwanted frequencies below 20 HzPHASE control: variable phase adjustment up to 360 degreeStereo or mono mode for bass/subwoofer configurationGold-plated RCA and XLR inputs/outputsMaximum input/output level: 32.5 dBFrequency range: 10 Hz-100 kHz, THD+N: 0.0008% (High Pass), 0.0009% (Low Pass)Dynamic range: 138 dB (High Pass), 137 dB (Low Pass)Shielded toroidal transformer power supply
Specifications
General Specifications
Analog crossover with VOLTAiR technologyDual-section design: Low Pass for bass loudspeaker or subwoofer, High Pass for top/main speakersIndividual crossover frequencies from 20 Hz to 3600 Hz for Low Pass and High PassAvailable in black, red, or silverSPL Model Name: Crossover Mk2
Crossover Control
X-FREQ three-position switch for crossover range selectionX-FREQ switch positions: 1500 Hz to 3600 Hz, 300 Hz to 700 Hz, 50 Hz to 120 HzX-OVER six switching positions for precise frequency adjustmentsROLL-OFF switch with options for 12 dB or 24 dB slopeLow-cut filter removes frequencies below 20 Hz
Phase Control
Three-position toggle switch for phase control: VAR 0 degree, VAR -180 degree, or OFFPhase synchronization between top speakers and subwoofers
Output Options
Stereo or mono selection for Low Pass outputsPlayback volume adjustment for bass loudspeaker or subwoofer from -10 dB to +10 dBHigh Pass filter can be switched off for full-range operation
Connectivity

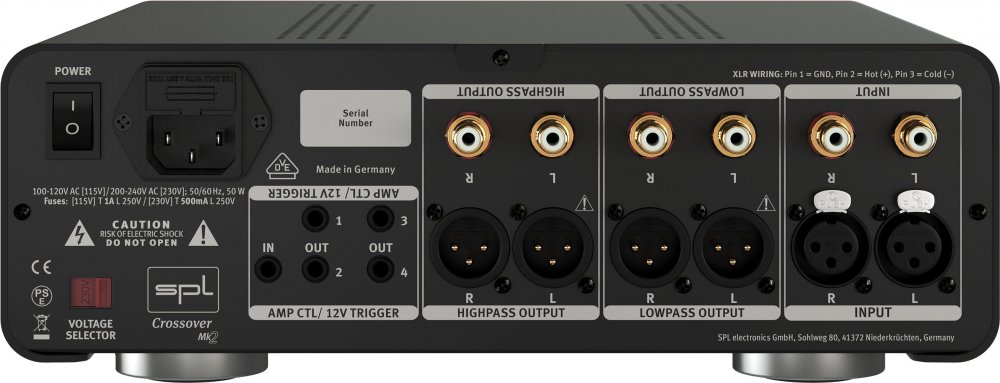

Gold-plated RCA and XLR connections for stereo input and outputINPUT switch for selecting XLR or RCAAMP CTL for 12V trigger input/output
VOLTAiR Technology
120V operating voltage (+/-60 V DC)SPL 120V SUPRA operational amplifiersHigh dynamic range, signal-to-noise ratio, and headroom
Technical Specifications
Maximum input and output level 32.5 dBInput impedance (RCA) 20 kInput impedance (XLR) 20 kOutput impedance 75Common-Mode Rejection Ratio (XLR) -82 dBFrequency range (-3 dB) 10 Hz to 100 kHzCrosstalk (1 kHz) -70 dBTHD+N (0 dBu, 1 kHz, High Pass Output) 0.0008THD+N (0 dBu, 30 Hz, Low Pass Output) 0.0009Noise (A-weighted, High Pass Output) -106 dBNoise (A-weighted, Low Pass Output) -105 dBDynamic range (High Pass Output) 138 dBDynamic range (Low Pass Output) 137 dB
Power Supply
Internal Linear Power Supply with Shielded Toroidal TransformerOperating voltage for analog audio +/- 60 VOperating voltage for relays and LEDs + 12 VMains voltage: 230 V AC 50 Hz or 115 V AC 60 HzPower consumption max 50 VAStand-by power consumption less than 0.3 W
Physical Specifications
Dimensions: 278 x 100 x 300 mmUnit weight: 4.6 kgShipping weight: 5.85 kg
