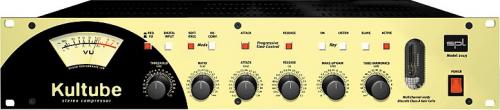

SPL Kultube

The Kultube is a tube stereo compressor with a broad range of control facilities that cover all typical compressor applications with stunning quality.

The Kultube is an extremely versatile compressor with a broad range of control facilities that cover all typical compressor applications. From improved stereo mixes in the "MIDI Studio" to surround mastering with several devices connected, all jobs can be undertaken to the highest degree of sound quality. You can, for example, choose between the hard and soft-knee characteristic and insert external devices via a side-chain input for external control. With the unique "Progressive Time Control" for attack and release, time constants can be optimised by unique circuitry that reacts both to the input signal and to the user settings - for example, fast impulses are intercepted by an attack time as fast as 20 us. In master/slave mode, any number of devices can be controlled from one master unit.

The adjustable tube saturation of the output stages combined with automatic output level adjustment can produce tube sound effects that range from the delicate to the raucous whilst a useful decompressor mode can reanimate overcompressed material (such as samples). The Kultube user has a unique range of powerful compression tools always available, from subtle unobtrusive compression to very obvious effect compressions - it's all possible. Used conventionally or as an effect, in the MIDI and project studio or in the professional studio, the Kultube delivers outstanding audio quality with SPL's acclaimed musicality and user-friendliness.
Applications cover those of a classic compressor for vocals and instruments, in both mono and stereo, through to stereo operation for subgroup processing, stereo mastering, multi-channel or surround projects.

Particular Feature
SPL has developed discrete, very high performance gain cells that are used instead of the usual VCAs and the Kultube is the first product to use them. They ensure the highest level of musicality and clarity in signal processing and demonstrate significantly improved distortion values over VCAs.

Applications
The Kultube user has a unique range of powerful compression tools always available, from subtle unobtrusive compression to very obvious 'effect' compressions. Used conventionally or as an effect, in professional recording or mastering applications, the Kultube combines outstanding audio quality with the acclaimed musicality and user-friendliness that SPL units stand for.
Applications cover those of a classic compressor for vocals and instruments, in both mono and stereo, through stereo operation for subgroup processing to stereo mastering and multi-channel/surround projects.

Progressive Time Control
With the unique Progressive Time Control (PTC) option for attack and release, time constants can be optimised by unique circuitry that reacts both to the input signal and to the user settings - for example, fast impulses are intercepted by an attack time as fast as 20 us. PTC can be seen as an interactively controllable automation which is not based on fix presets but reacts to the audio material in a musically useful way.

Discrete Gain Cells
SPL has developed discrete, very high performance gain cells that are used instead of the usual VCAs and the Kultube is the first product to use them. They ensure the highest level of musicality and clarity in signal processing and demonstrate significantly improved distortion values over VCAs.

Tube Harmonics
The adjustable tube saturation of the output stages combined with automatic output level adjustment can produce tube sound effects that range from the delicate to the raucous whilst a useful decompressor mode can reanimate overcompressed material (such as samples).

Master/Slave Modes
In master/slave mode, any number of devices can be controlled from one master unit.
Features
  • Stereo compressor with discrete, Class A gain components (instead of industrial VCAs)
  • Single track or subgroup/summed signal processing in studio and live recording
  • Stereo and multi-channel applications
  • Achieve massive attacks and increased loudness without side-effects
  • Progressive Time Control: interactive automation of attack and release times, the permanent reaction to the input signal ensures musical perfection (no fixed automation presets)
  • Adjustable tube saturation with automatic output level adjustment
  • Selectable soft or hard knee characteristics
  • Unique decompression mode
  • Large VU meter displays gain reduction or (mono summed) output level
  • Switchable side-chain inputs on the front panel
  • Slave mode for multi-channel operation
  • Options: 24/192 AD converter, I/O transformers from Lundahl
  • Made in Germany
  • Specifications
    Frequency response (100 kHz = -3 dB):
    10 Hz-100 kHz

    THD & N (at 0 dBu):
    > 83 dB

    S/N (A-weighted):
    90 dBu

    Input impedance:
    20 kOhm

    Max. input level:
    +22 dBu

    Max. output level:
    +24 dBu

    Output impedance:
    50 Ohm

    Common mode rejection (at 0 dBu):
    1 kHz: > 75 dB
    10 kHz: > 65 dB

    Power supply:
    Toroidal transformer: 30 VA
    Fuses: 400 mA (230 V/50 Hz) / 800 mA (115 V/60 Hz)
    Maximum power consumption: 40W

    Dimensions:
    Standard-EIA-19 inch/2U housing
    W x H x D: 482 x 88 x 210 mm; 19" x 3.46" x 8.27"

    Weight:
    4.3 kg, 9.5lbs
    Reviews
    Price *
    $2499.00
    $2299.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the Kultube, please visit the website of SPL
