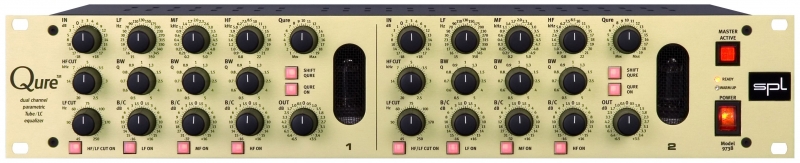

SPL Qure

The Qure is ideally suited for demanding tonal shaping of individual instruments, voices and complex musical signals.

All applications benefit from the unique tonal potential and the sophisticated filtering design that perfectly complements the fine details of the sound being processed.

The highly sophisticated circuitry of the Qure forms the basis for its outstanding tonal qualities: each filter is serially connected on separate boards with individual op-amps, resulting in excellent noise and distortion values, with a hard bypass available for each individual filter.
  • 2 x 3-band fully parametric EQ
  • Proportional Q operation
  • Variable HF and LF cut filters
  • Unique QURE control
  • Variable input gain (-12dB to +18dB)
  • Variable output gain (-7dB to +4dB)
  • Hard-Bypass for each filter band and both cut filters
  • Master relay hard-bypass for entire unit
  • Central Grounded Shield Layout
  • SPL's Super-Balancing Hybrids (CMRR > 80dB)
  • Tube warm up circuitry for prolonged tube-life
  • Toroidal transformer power supply
  • Option: Lundahl I/O transformers
  • Specifications
    Input & Output:
    Instrumentation amplifier, electronically balanced (differential), transformerless
    Nominal input level +6dB
    Input impedance = 22 kOhms
    Output impedance < 600 Ohms
    Max. input level +14dBu
    Max. output level +20dBu
    Minimum load ohms: 600 Ohms
    Relay Hard Bypass
    Power Fail Safety

    Frequency response: 10Hz 100kHz (100kHz = -3dB)
    EQ frequency range: 15Hz 21kHz
    CCMR: > -80 dB @ 1 kHz
    THD & N: 0.01855% @ 1kHz
    S/N CCIR 468-3: -85dBu
    S/N A-weighted: -99dBu

    Power Supply:
    Toroidal transformer 35 VA
    Ground-Lift switch
    Fuse (primary) 500mA (230V/50Hz), 1000mA (115V/60Hz)
    Voltage selector 115V/230V

    Housing Standard EIA 19"/2U
    482 x 88 x 237mm (WxHxD)
    19" x 3.5" x 9.33" (WxHxD)
    Weight 4.9 kg, 10.8lbs
    Free shipping in Canada. Conditions
    Additional information
    For more information about the Qure, please visit the website of SPL
