Summit DCL-200

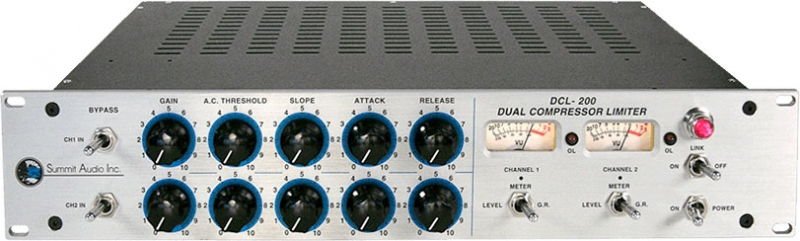

The Summit Audio DCL-200 is a dual channel compressor/limiter with stereo linking capabilities

Based on a hybrid design, the DCL-200 combines the most desirable sonic characteristics of vacuum tubes with the increased reliability of solid state devices. DCL-200 circuitry incorporates selected 12AX7A vacuum tubes with high reliability 990 op-amps in a transformerless signal path, giving you an incredibly clean, precise sound, with the overtones and warmth of tube technology.

A mainstay of both the live sound and studio environments, the DCL-200 has helped shape the sound of countless concerts and albums with its crisp yet smooth high frequency response and the sweet low-mid and low tones you get from vacuum tubes. The DCL-200 is an extremely versatile and musical sounding compressor, a go-to piece for tracking, mixing, even mastering. The compression curve and soft knee makes the DCL-200 enhance your audio in a way that is far from sterile without being muddy or pinched.
Features
  • Continuously variable attack and release times
  • Adjustable threshold
  • Variable slope (ratio)
  • Output gain control
  • Soft-knee transition characteristic
  • Stereo link switch
  • Dual true VU meters
  • Side chain insert
  • Bypass switch
  • Specifications
    Size and Weight
  • Height: 3.5 inches (8.89 cm)
  • Width: 19 inches (48.26 cm)
  • Depth: 10 inches (25.40 cm)
  • Weight: 17 pounds (7.71 kg)

  • Power Configuration
  • Internal AC Supply
  • 40watts, 115 or 230 volts, 50 or 60 Hz (Rear Switchable)
  • Fuse Size: 0.5 Amp for 115 VAC, 0.25 Amp for 230 VAC

  • Compressor Data
  • Release Time: 45 mS to 10 S
  • Slope: Adjustable from 1.1:1 to 7:1

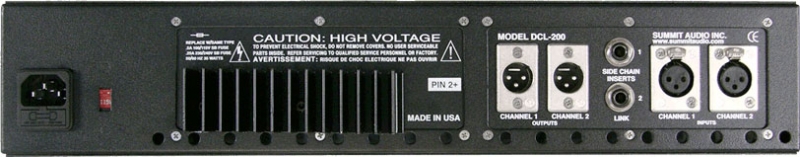

  • Connections
  • Inputs: +4 dB female XLR, Channel 1 & 2
  • Outputs: +4 dB male XLR, Channel 1 & 2
  • Side Chain: 1/4" jacks

  • Operating Measurements
  • Frequency Response: 5 Hz to 70 kHz
  • Noise: Less than -80 dBu at unity, 10 Hz to 80 kHz
  • Distortion: Less than 0.05% at +4 dBu
  • Output impedance is 75 W. The recommended output load is
  • 600 W or more. Maximum output approaches +30 dBu.
  • Reviews
    Price

    $4756.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the DCL-200, please visit the website of Summit
