WHDI wireless transmission - 1000 meters (LOS) with Panel Receiver
S-4914P Broadcast/Film industry wireless system is based on WHDI wireless technology, 5.1-5.9GHz license free bands, with a new developed high Gain Panel Receiver, supports uncompressed 3G/HD/SD-SDI and HDMI to transmit 1000 meters (Line-of-Sight) distance, and less than 1 millisecond latency. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

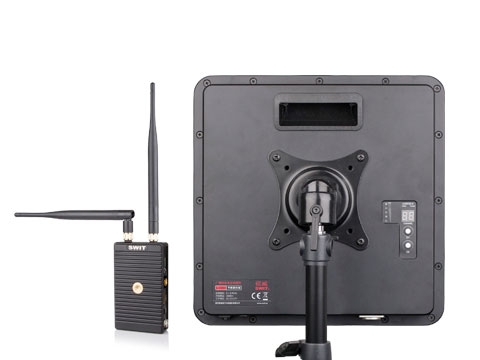

The Transmitter
The Transmitter has 2 omni antennas, signal interfaces are:

1x 3G/HD/SD-SDI input

1x HDMI 1.3 input

(If both SDI and HDMI are connected, the system transmits SDI as priority.)

1x 6-17V DC input

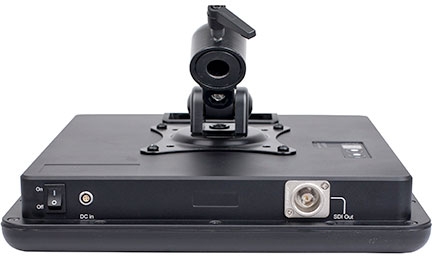

Panel Receiver
The Panel Receiver adopts 14dBi high Gain Panel Antenna and build-in wireless receiver design, to set up by lighting tripod.
The Panel Receiver interfaces are:
1x 3G/HD/SD-SDI output
1x 7-36V 4pin LEMO DC input

1000m Transmission
In Line-of-Sight, S-4914P supports non-compressed 3G/HD/SD-SDI and HDMI 1000 meters (3300 feet) transmission, with less than 1 millisecond latency.

Embedded Audio Transmission
S-4914P supports SDI and HDMI embedded audio (CH1&2) transmission.

5.1-5.9GHz Frequency
S-4914P wireless system works at 5.1-5.9GHz License-free frequency. The frequency bands are user configurable and support 3-4 pairs wireless channels to work together in one location. The wireless output power is less than 63mW, which will not do harm to human bodies.

Multicast Setting
Users can set several Receivers at the same frequency point as the Transmitter, to enable 1 Transmitter to multi Receivers multicast mode.

S-4914P package includes:
1x Transmitter (Various DV plates types option)
3x Antennas (For transmitter, 2+1 backup)
1x Articulating arm trestle (Cold shoe and 1/4")
1x D-tap DC cable (For transmitter)
1x Band switching driver (For transmitter)
1x Panel Receiver
1x VESA bracket for lighting tripod (For Receiver)
1x D-tap to 4-pin LEMO DC cable (For Receiver)
1x Battery plate with clamp (V-mount / Gold mount option)
1x Carrying case (for everything)

S-4914 T/R - SDI/HDMI 1000m Wireless System

WHDI (MIMO/OFDM) technology

5.1-5.9GHz license-free frequency

Uncompressed 3G/HD/SD-SDI and HDMI

1000meters (Line-of-Sight) distance

Less than 1 millisecond latency

Less than 63mW radio power

14dBi Panel Antenna build-in Receiver

2-ch SDI/HDMI embedded audio transmission

Support 3-4 pairs working in one location

Multicast - 1 transmitter to multi receivers

Mini Transmitter with various DV plates selection

All-metal housing, durable

Pure hardware connection; Plug and Play

Transmitter
Input: 3G/HD/SD-SDIx1; HDMIx1

Format
1080P (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)

Wireless frequency: 51505850MHz
Radio modules: OFDM 16QAM
Transmission distance: Approx 1000m (Line of sight)
Latency: 1 millisecond
Power consumption: 6.5W
Radio power: Max 63mW
Input Voltage: DC 6.517V
Working environment Temperature: 0°C -+40°C
Dimension: 71x120x37 (mm)
Net weight: 300g (with antenna)

Transmitter Input : Supported formats
SDI
SMPTE-425M 1080p (60 / 59.94 / 50)
SMPTE-274M 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)

HDMI
480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

Receiver
Output: 3G/HD/SD-SDIx1
Format: Same as transmitter
Wireless frequency: 51505850MHz
Radio modules: OFDM 16QAM
Transmission distance: Approx 1000m (Line of sight)
Latency: 1 millisecond
Power consumption: 7W
Receiving antenna gain: 14dBi ± 0.5
Input voltage: DC 736V
Working environment Temperature: 0°C -+40°C
Dimension: 305x305x58.5 (mm)
Net weight: 2380g (with VESA bracket)
