Tascam AE-4D
UPC/EAN #043774033829
MPN #AE-4D
$1419.00
Save 20.1%, MSRP $1775.00
4 AES EBU input output, 4 Dante input output, built in DSP mixer, PoE supported, 24bit 96kHz, software control, half rack size, sampling rate converter

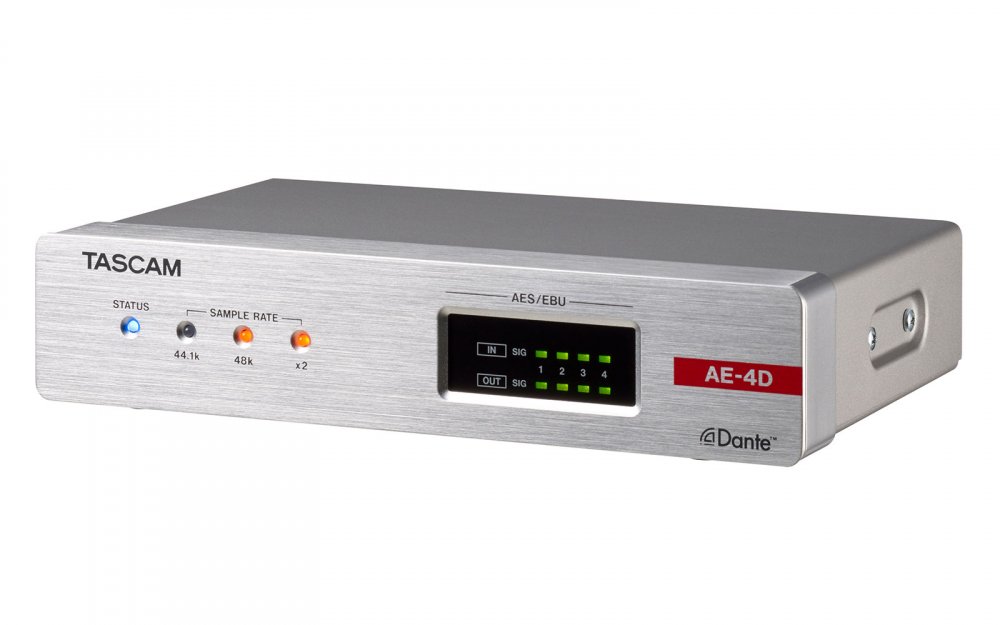

The TASCAM AE-4D is a professional-grade, compact audio interface that bridges AES/EBU digital audio with Dante network audio, tailored for integration into complex audio systems in broadcast, live sound, and installed sound environments. It features four AES/EBU inputs and outputs with built-in sample rate conversion, enabling seamless incorporation of legacy or high-quality digital audio sources into modern Dante networks. With support for up to 24-bit/96kHz audio and compatibility with Power over Ethernet (PoE), the AE-4D simplifies installation while maintaining top-tier performance and reliability.
Its compact, half-rack design makes it ideal for tight spaces, while the built-in DSP mixer provides flexible routing and basic audio processing, perfect for small-scale systems or zone-based installations. Two user control software options-TASCAM DCP CONNECT and EZ CONNECT-allow for detailed configuration or simple operation depending on the user's needs. The AE-4D is easily mountable under desks or in racks using optional accessories, and with visual signal and connection indicators, it's a user-friendly yet powerful addition to any professional audio system.
Features
Converts 4-channel AES/EBU signals to Dante and vice versaIncludes built-in DSP mixer for flexible signal routing and controlSupports PoE power for simplified installation and reduced cablingHigh-quality 24-bit/96kHz audio performance for professional useCompatible with a wide range of digital devices via XLR and DanteIncludes sample rate converter for easy integration of varied sourcesTwo control apps available: advanced setup or basic volume controlDaisy-chain support eliminates the need for a network switchHalf-rack size, mountable under desks or into standard racksIdeal for broadcast, install, live sound, or system integration projects
Specifications
General Specifications
Product Name AE 4DType 4 Channel AES EBU to Dante Converter with DSP MixerForm Factor Half rack sizeDimensions 214 x 44.45 x 136.1 mm W x H x DWeight 795 gPower Supply PoE Class 0 or optional TASCAM PS P1220E AC adapterPower Consumption 3WOperating Temperature Range 0C to 40CMounting Surface rack mountable angles includedIncluded Accessories Installation brackets x2 Owners Manual
Input Output Configuration

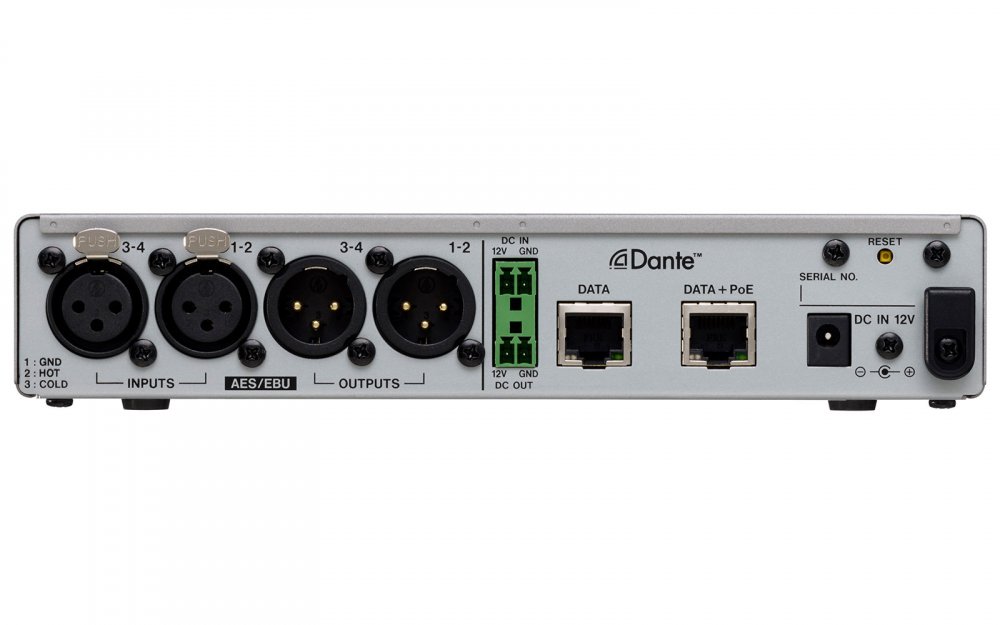

AES EBU Inputs 4 channels XLR 3 31 110 ohm with sampling rate converterAES EBU Outputs 4 channels XLR 3 32 110 ohmDante Inputs 4 channelsDante Outputs 4 channels
Digital Audio Specifications
AES EBU Format AES3 2003 IEC60958 4AES EBU Input Sampling Rates 32 to 192 kHzAES EBU Output Sampling Rates 44.1 48 88.2 96 kHzDante Protocol 1000BASE T IEEE 802.3ab RJ 45 Category 5e or higher STP cablesBit Depth 16 24 bitSampling Rates Supported44.1 48 kHz for 4 channels88.2 96 kHz for 2 channels double speed mode
DSP and Software Control
Built in DSP Mixer YesScene Preset Memory Up to 50 presetsUser Control SoftwareTASCAM DCP CONNECT full controlTASCAM EZ CONNECT simple controlSupported OS Windows macOS Android iOS
Connectivity and Indicators

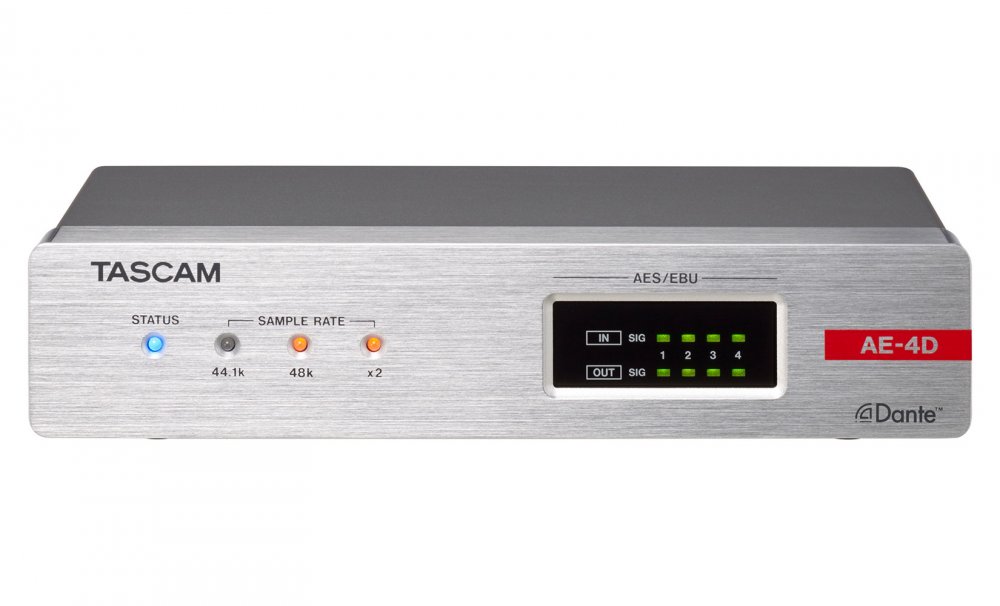

Indicators LAN Dante connection status sample rate digital signal presenceReference Level Adjustment Remote control only
Optional Accessories
AC Adapter TASCAM PS P1220ERack Shelf AK RS1 mounts up to two units in 1U rack space
Use Case Compatibility
Converts between AES EBU and Dante for integration with digital audio gearSupports installation in compact or fixed AV environmentsIdeal for PA SR professional audio and broadcast applications
