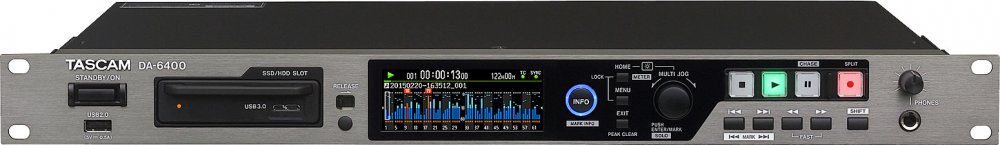

Tascam DA-6400

TASCAM's DA-6400 is a 64-trk recorder that records to an internal SSD for live event recording. Pro I/O options (MADI & DANTE), use for event capture, or redundant for DAW sessions

Available with a single or dual/redundant power supply, the DA-6400 is an unbeatable option for professional remote recording.

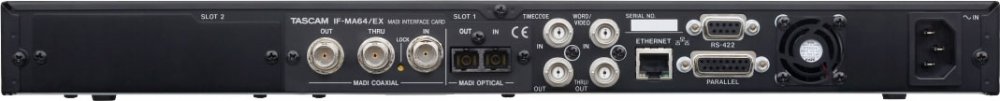

Included with the DA-6400 is an AK-CC25 hot-swappable caddy containing a high-performance 240GB TASCAM solid-state drive. The caddy includes a USB 3 jack for stand-alone use - simply hand the drive to the client to offload the BWAV files into their DAW session. The DA-6400 records 64 tracks at 48kHz/24-bit or 32 tracks at 96kHz/24-bit. Included on the rear panel are SMPTE timecode, word clock, RS-422, parallel and Ethernet connections.

I/O options for the DA-6400 include the IF-MA64/EX interface card, with both coaxial and optical MADI connections. This card includes a redundant coaxial connection so that MADI is passed through even if power is lost, making it an ideal backup recorder for DAW sessions. Other I/O options include the lower-cost IF-MA64/BN coaxial MADI card, IF-DA64 Dante card, and IF-AE16 AES/EBU card, with more to come.

No dedicated recorder combines the high performance, flexible operation, and complete reliability of TASCAM's DA-6400 solid-state 64-track recorder.
  • Supports recording/playback of 64 channels at 48kHz/24-bit or 32 channels at 96kHz/24-bit PCM
  • The perfect backup recording system for synchronized capture with Pro Tools systems
  • 2.5-inch SSD recording media with excellent vibration and environmental resistance as well as maintenance-free operation.
  • (Note: HDD support currently under development)
  • Includes TASCAM SSD - designed with custom controller parts and thoroughly tested using DA-6400 units
  • Hot swappable AK-CC25 case loads into front-loaded storage bay with USB 3 I/O port for transfer to DAW computer
  • AK-CC25 with TASCAM 240GB SSD drive included with unit
  • Hi-visibility Color LCD (320x120 pixels)
  • BWF support for storing time information with files
  • SMPTE LTC timecode input and output for location synchronization
  • Firmware upload over USB port
  • Parallel remote control input
  • RS-422 serial remote control (9-pin serial protocol compliant)
  • Gigabit LAN (1000BASE-T Ethernet) for file transfer, remote control and monitoring over a network
  • SNTP server support for automatic adjustment of the internal clock over a network
  • Video reference (NTSC/PAL blackburst signals and HDTV Tri-level signals) and word clock input and output/thru
  • EIA 1U rackmount size
  • IEC 3-pin inlet
  • iPad and computer applications for remote control
  • AC power redundancy built in (DA-6400dp only)

  • Two I/O slots for optional audio interface cards:
  • IF-MA64/EX 64-channel redundant (in/out/thru) MADI optical/coaxial interface card
  • IF-MA64/BN 64-channel MADI coaxial interface card
  • IF-DA64 64-channel Dante interface card
  • IF-AE16 16-channel AES/EBU interface card

  • TASCAM SSD features
  • 240GB 2.5-inch serial ATA SSD
  • With cooperation with parts manufacturers, TASCAM uses a specific control IC for stable, reliable operation
  • SSD operation has been tested with the DA-6400
  • One included with each DA-6400/DA-6400dp; additional drives can be purchased separately
  • Total recording time: 7h12m@48kHz/24-bits, 64 channels

  • AK-CC25 (DA-6400 series SSD storage case) features
  • 2.5-inch serial ATA SSD can be installed
  • (Note: HDD support currently under development)
  • USB 3.0 interface supports high-speed data transfer
  • Data transfer possible when loaded in a DA-6400 bay and when connected by USB to a computer as an external drive
  • LED disk access indicator
  • One included with each DA-6400/DA-6400dp; additional cases can be purchased separately
  • Specifications
  • Recording media: SSD
  • Note: HDD support also planned in addition to the SSD.
  • File system: FAT32
  • File formats: BWF(.wav)
  • Number of channels: 64(1xFs), 32(2xFs)
  • Sampling frequencies: 44.1k/48k/88.2k/96kHz
  • Quantization bit rate: 16bit/24bit
  • Clock reference: INTERNAL, WORD IN, VIDEO IN
  • Timecode frame: 23.976 / 24 / 25 / 29.97DF / 29.97NDF / 30DF / 30NDF
  • Connector: BNC
  • Signal voltage amplitude: 0.5V to 5Vp-p
  • Input impedance: 10k
  • Format SMPTE 12M-1999 compliant
  • Connector: BNC
  • Signal voltage amplitude: 2Vp-p
  • Output impedance: 600
  • Format: SMPTE 12M-1999 compliant
  • Connector BNC
  • Input voltage amplitude (WORD) 0.5V to 5Vp-p TTL equivalent
  • Signal voltage amplitude (VIDEO):1Vp-p
  • Input impedance: 75 +/-10%
  • Input frequency (WORD) 48kHz
  • Input signal (VIDEO):23.976/24/25/29.97/30 Frame (NTSC/PAL Black burst, HDTV Tri-Level)
  • Connector BNC
  • Output voltage amplitude:5V TTL equivalent
  • Output frequency (WORD): 48kHz
  • Connector RJ-45
  • Protocol:100BASE-TX, 1000BASE-T
  • RS-422
  • Connector D-sub 9 pin (female, inch-standard)
  • Connector D-sub 15 pin (female, inch-standard)
  • USB:
  • Connector USB2.0 A-type
  • Protocol:USB 2.0 HIGH SPEED(480Mbps)
  • Connector 6.3mm(1/4') standard stereo jack
  • Maximum output level:45mW+45mW or higher
  • Power: AC100V-240V, 50/60Hz
  • *DA-6400dp has 2 power supply inlets
  • Power consumption: 21W (At the time of IF-MA64/EX use)
  • Dimensions 482.6(W)x44.7(H)x304.8(D)mm
  • Weight
  • DA-6400: 3.9kg
  • DA-6400dp: 4.0kg
  • Operating temperature: 0 to +40C
  • Standard accessories: TASCAM SSD, SSD media case, Power cablex1 (DA-6400), Power cablex2 (DA-6400dp), USB cable, Rack mount screw kit, Security screw kit, Owner's manual (with warranty)
