HomepageMixing BoardsDigital mixers › Tascam DP-24SD

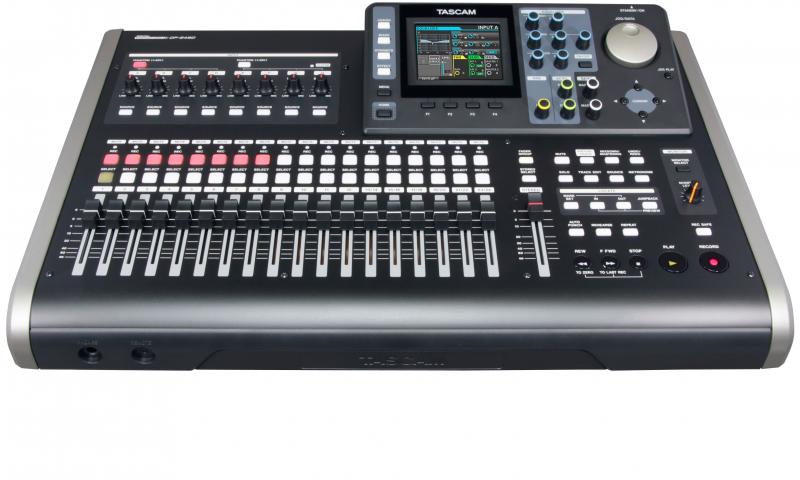

Tascam DP-24SD

The DP-24SD Digital Portastudio is a 24-track workstation, allowing eight tracks of simltaneous recording.

The built-in mixer includes everything you need for a professional-sounding mix, from EQ and reverb to amp simulation and multi-band mastering effects. The Digital Portastudio series creates finished productions without the need for a computer, instead using a simple-to-use control surface to keep you creative.

For clear display of your mix, the DP-24SD has a large color LCD displaying tracks, meters, and effects parameters. A set of 12 encoders control EQ, effects sends, and panning. Built-in effects include compression, guitar amp modeling, delay, reverb, with a total of 10 effects processirs available during mixing.

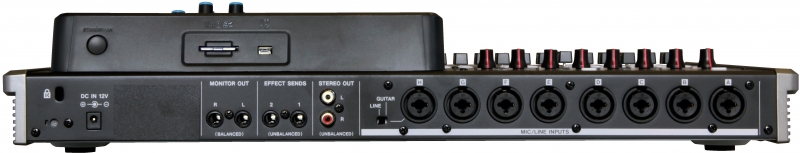

Eight XLR mic/line inputs each provide phantom power for condenser microphones, switchable in banks of four. One input includes an instrument-level impedence switch for direct input recording of guitar or bass. Balanced monitor outputs and effects sends are also provided on the rear panel. A USB output allows tracks and mixes recorded to your SD card to be transferred to a computer for CD burning or sharing online.

For a complete music production on a desktop, there's no simpler choice than the DP-24SD.
Features
  • Simultaneous 24-track playback
  • 12 mono tracks + 6 stereo tracks
  • Simultaneous 8-track recording
  • 16 or 24 bit, 44.1 or 48 kHz recording
  • 8 XLR/TRS combo connectors
  • Phantom power supplied on all inputs (INPUT A-D,E-H)
  • High-impedance input available (INPUT H)
  • Stereo RCA output
  • 2 effect send outputs (1/4" TS jack)
  • 70mW/ch headphone amplifier
  • Remote connector for optional RC-3F footswitch
  • INPUT A-H and each track equipped with 3-band EQ
  • Automatic punch in/out
  • Various edit functions (COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)
  • Undo and Redo function with Undo history
  • Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
  • Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser)
  • Mix-down effects (Reverb, Delay, Stereo Chorus)
  • Mastering Effects (Multi-band Compressor, Equalizer, Dither, Normalize)
  • Track bounce function
  • Virtual track (8 virtual track per one track: including use track)
  • Locate mark up to 99 for one song
  • File transferring via USB2.0
  • Chromatic tuner
  • Metronome
  • 19 Faders
  • Peak-hold function on the level meter of the LCD
  • Sub-frame editing
  • Dedicated AC adapter included (TASCAM GPE248-120200-Z)
  • SD card included
  • Specifications
    Recording Media: SD (512MB - 2GB) / SDHC card (4GB - 32GB)
    File System: SD card:FAT16 / SDHC card: FAT32

    INPUT A-H
    XLR
    Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), Balanced
    Input impedance: 2.4k ohms
    Nominal input level: -14dBu
    Maximum input level: 2dBu

    TRS:
    Connector: 6.3mm(1/4")TRS phone jack, Balanced
    Input impedance: 22k ohms or more
    / 1M ohms(when INPUT H, GUITAR selected)
    Nominal input level: 4dBu
    Maximum input level: 20dBu

    STEREO OUT:
    Connector: RCA pin-jack, Unbalanced
    Output impedance: 200 ohms
    Nominal output level: -10dBV
    Maximum output level: +6dBV

    EFFECT SENDS:
    Connector: 6.3mm(1/4")TS phone jack, Unbalanced
    Output impedance: 200 ohms
    Nominal output level: -10dBV
    Maximum output level: +6dBV

    MONITOR OUT:
    Connector: 6.3mm(1/4")TRS phone jack, Balanced
    Output impedance: 200 ohms
    Nominal output level: -2dBu
    Maximum output level: +14dBu

    PHONES:
    Connector: 6.3mm(1/4")stereo phone jack
    Maximum output level: 70mW + 70mW (THD+N 0.1% or less, 32 ohms loaded)

    USB:
    Connector: USB Mini-B type 4-pin
    Format: USB2.0 High-Speed mass-storage class

    REMOTE:
    Connector: 2.5mm TRS jack

    Power: Dedicated AC adapter (TASCAM GPE248-120200-Z, included)

    Power consumption: 12W (when phantom power supplying)

    Dimensions: 514(W)x100.4(H)x336.9(D)mm / 20.2"(W)x4.1"(H)x13.4""(D)

    Weight: 6.2kg / 13.67 lb

    Accessories: AC adapter, 4GB SD card, warranty card, owner's manual
    Reviews
    Price *
    $785.00
    $629.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the DP-24SD, please visit the website of Tascam
