Tascam ML-4DOUT-E
UPC/EAN #043774033843
MPN #ML-4DOUT-E
$1269.00
Save 19.9%, MSRP $1585.00
4 balanced line outputs, 4 Dante I/O, PoE support, built-in DSP with matrix mixer, 10-band EQ, compact half-rack size, remote control via app.

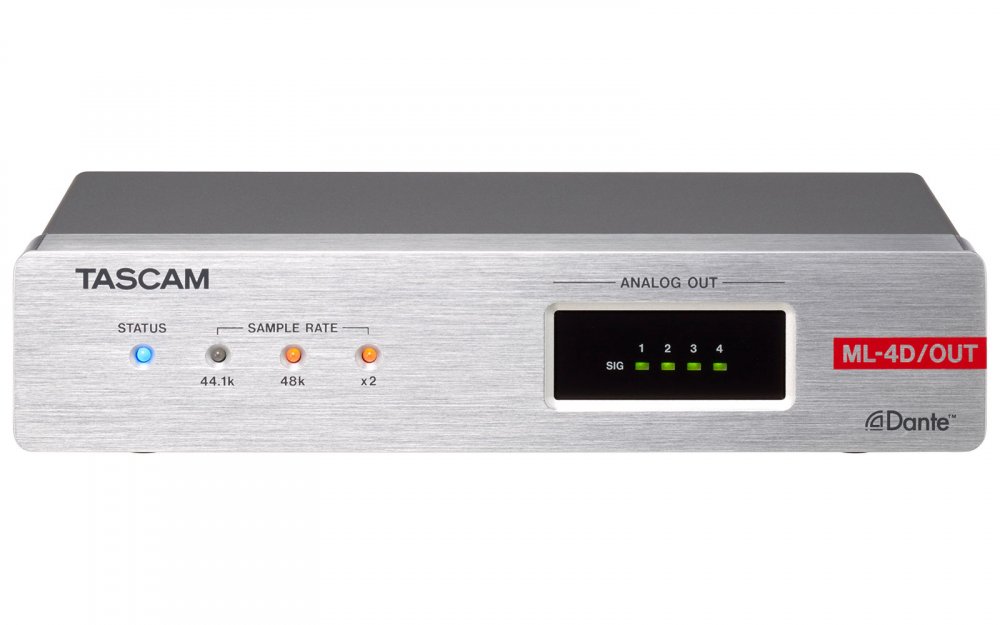

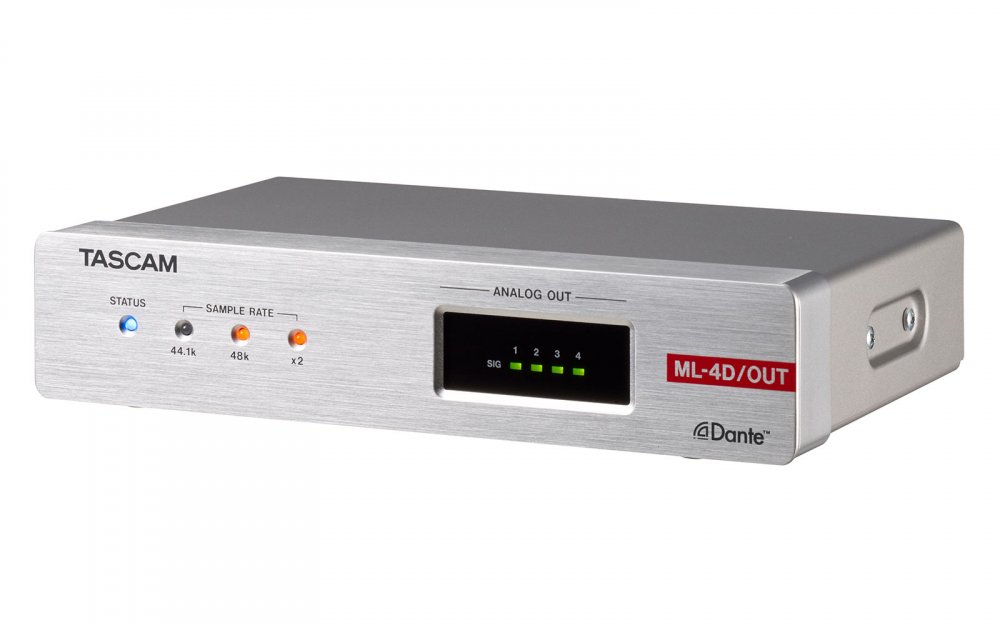

The TASCAM ML-4D/OUT-E is a compact and powerful Dante interface designed to meet the flexible demands of audio installations, commercial sound systems, and professional AV applications. With four balanced Euroblock line outputs and four Dante input/output channels, it seamlessly converts Dante audio to analog with pristine 24-bit/96kHz resolution. Its built-in 4x4 matrix DSP mixer provides advanced routing, output processing, ducking, and ambient noise compensation, making it a versatile solution for multi-zone sound distribution and system integration.
Engineered for maximum adaptability, the ML-4D/OUT-E is PoE-compatible for streamlined installations, and comes equipped with robust DSP tools such as 10-band EQ, high/low pass filters, delay, and limiter for each output channel. Remote control is effortless with TASCAM's DCP CONNECT and EZ CONNECT apps for full or simplified system management. Designed to fit discreetly into half-rack spaces or under desks, it also supports rack-mount installation with optional accessories, offering a highly scalable and efficient solution for networked audio environments.
Features
4 Dante Inputs and 4 Balanced Line Outputs: Converts Dante audio to analog line-level signals using Euroblock connectors.Built-In DSP Matrix Mixer: Mix and route signals using a 4-in/4-out matrix with EQ, filters, delay, limiter, ducking, and ambient noise compensation.Flexible Output Routing: Send Dante input directly to line output or through DSP; also route to Dante network output.PoE Powered: No external power adapter required when connected to a PoE-capable switch.Compact, Half-Rack Design: Easily mounts under desks or in racks (optional rack shelf available).Real-Time Monitoring and Control: Signal indicators for output status and LAN connection; remote configuration via TASCAM control apps.Two Control Software Options: Full system control (DCP CONNECT) or simplified user operation (EZ CONNECT) for desktop and mobile devices.Silent and Reliable: Fanless operation, solid build, and high-resolution audio support up to 96kHz/24-bit.
Specifications
General Specifications
4 channel line output Dante converter with built-in DSP mixer4 balanced line outputs on Euroblock connectors4 Dante input and output channelsSupports PoE Power over Ethernet class 024 bit resolution with sampling rates of 44.1 48 88.2 96 kHzHalf rack mountable sizeBuilt-in 4 in 4 out matrix mixer with ducking and ambient noise compensation10 band EQ high pass filter low pass filter delay and limiterConfigurable output reference levels from plus 15 dBu to plus 24 dBuSignal indicators for output monitoringLAN and Dante connection status indicatorsRemote control via GPI and DanteTwo software control options: DCP CONNECT for full control and EZ CONNECT for simplified useCompatible with Windows macOS iOS and AndroidSupports Dante daisy chainingIncludes surface mount brackets for under desk or wall installationOptional rack shelf AK-RS1 for mounting two units in a 19 inch rack
Audio Performance
Frequency response 20 Hz to 20 kHz at 44.1 48 kHz and 20 Hz to 40 kHz at 88.2 96 kHzDistortion THD plus N 0.002 percent max at minus 1 dBFSSignal to noise ratio 108 dBCrosstalk 100 dBDynamic range 108 dB
Analog Outputs

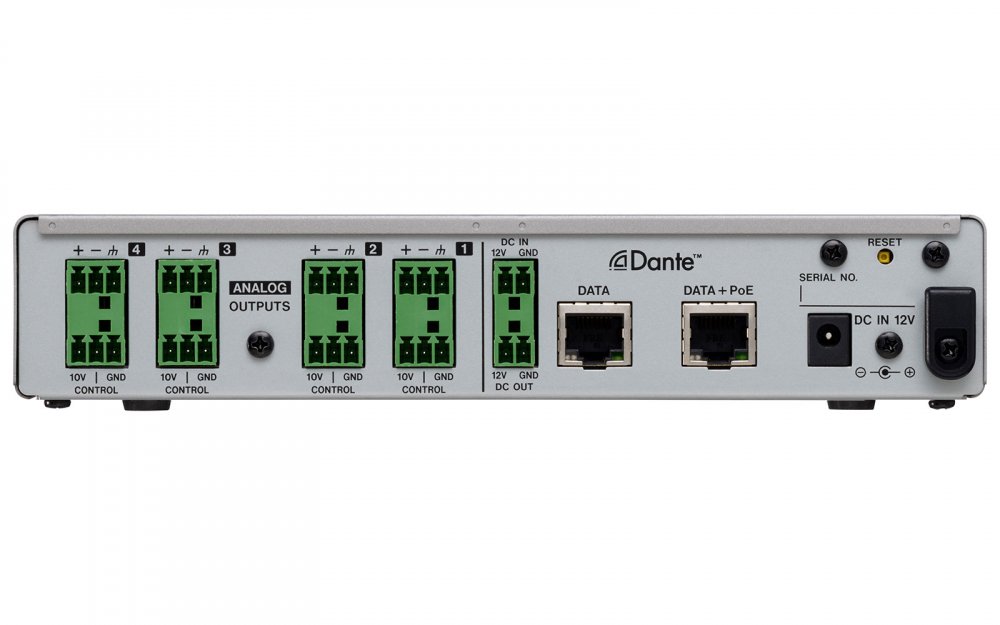

Connector type: Euroblock 3.81 mm pitch balancedOutput impedance: 200 ohms or lowerNominal output: plus 4 dBuMax output levels: plus 15 dBu at minus 9 dBFS, plus 18 dBu at minus 14 dBFS, plus 20 dBu at minus 16 dBFS, plus 22 dBu at minus 18 dBFS, plus 24 dBu at minus 20 dBFS
Dante Interface
Connectors: 2 x RJ45 for Dante and dataProtocol: DanteEthernet standard: 1000BASE-T IEEE 802.3abCable requirement: Cat 5e or higher STP cables
Control Interface
GPI control via Euroblock connector 3.81 mm pitchControl voltage input: 10V
Power and Environmental
Power supply: PoE class 0 or optional TASCAM PS-P1220E AC adapterPower consumption: 4WOperating temperature: 0 to 40 degrees CelsiusDimensions: 214 x 44.45 x 136.1 mmWeight: 863 grams
Included Items
ML-4D OUT E unitInstallation brackets x 2Euroblock plugs x 4Cable band kit x 1Owner's manual with warranty
