2 XLR mic line inputs with phantom power, 2 XLR outputs, 4 Dante I O, DSP with matrix mixer, PoE support, remote control, compact half rack design

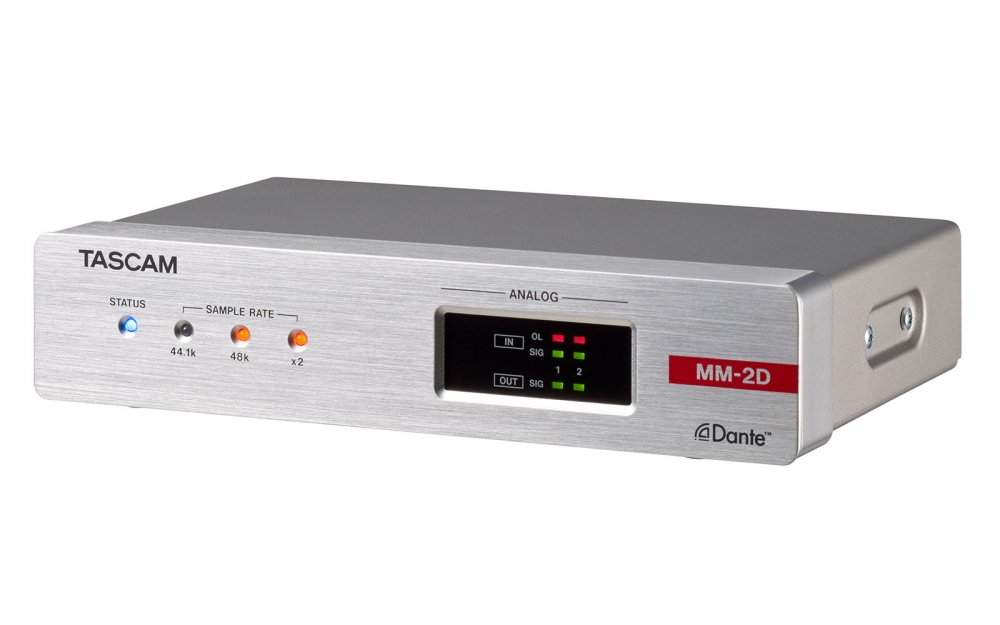

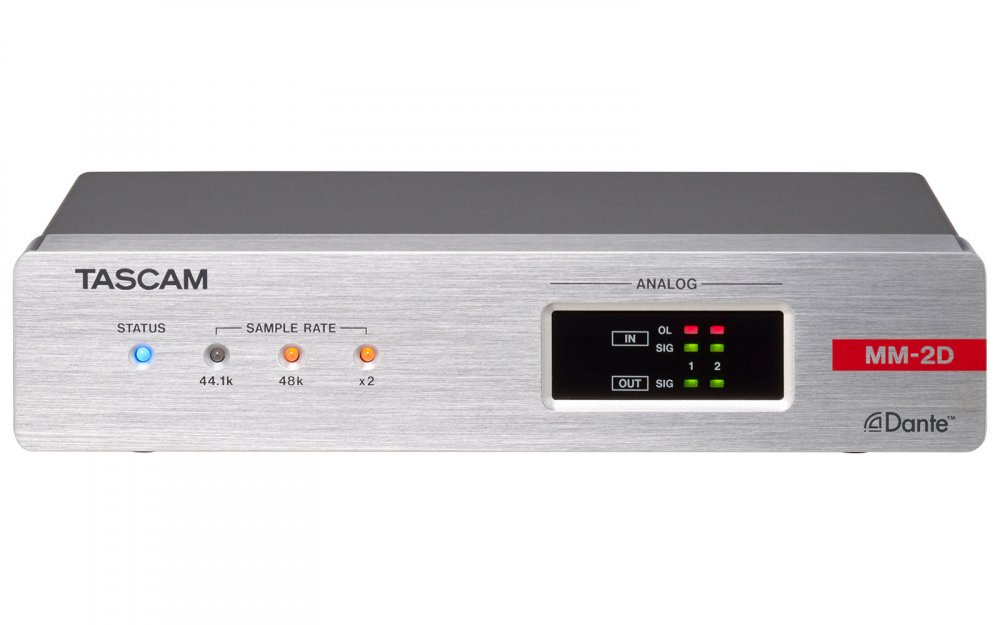

The TASCAM MM-2D-X is a powerful 2-channel Dante interface featuring professional-grade XLR connections for mic and line inputs/outputs, complete with phantom power support and remote mic gain control. Designed for high-performance audio networks, it offers 4-channel Dante I/O and a built-in 6-in/4-out DSP matrix mixer-all housed in a compact half-rack enclosure.
Ideal for contractor installations and live environments, the MM-2D-X delivers exceptional signal quality up to 24-bit/96kHz and features extensive DSP options including compression, EQ, delay, limiter, and auto-leveling. With PoE support, flexible scene presets, and control via TASCAM DCP CONNECT or EZ CONNECT software, this converter is a versatile and scalable solution for any Dante-enabled audio system.
Caractéristiques

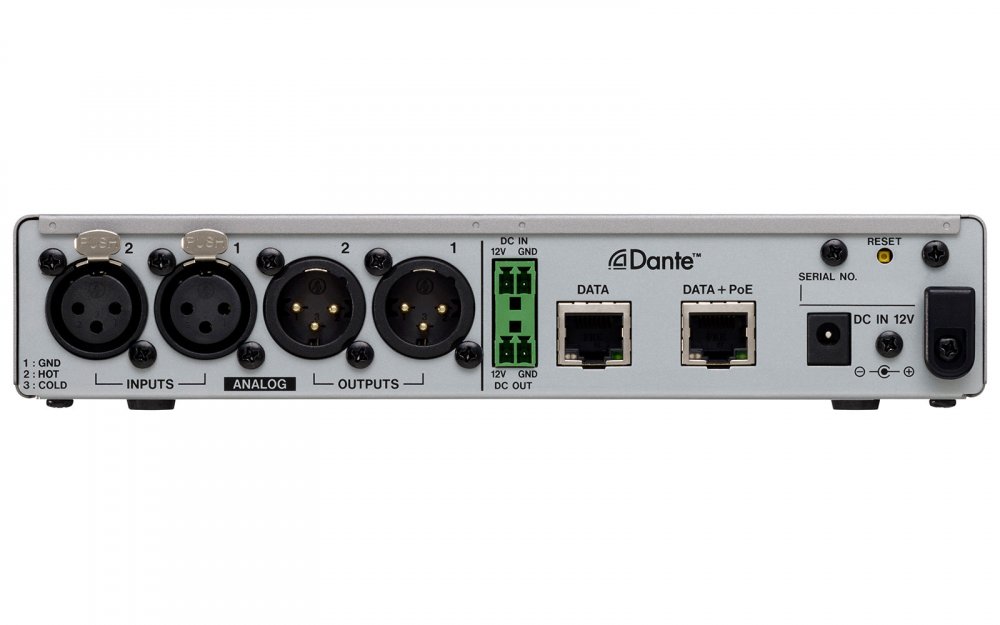

2 Mic/Line Inputs with Phantom Power (XLR): Professional-grade XLR inputs with +48V phantom power and remote gain control.
2 Line Outputs (XLR): Balanced analog outputs for routing to powered speakers or amplifiers.
4 Dante Inputs and 4 Dante Outputs: Full Dante I/O for integration into audio-over-IP systems.
Built-In DSP and 6x4 Matrix Mixer: Mix and route any input to any output with ducking, noise compensation, and more.
Full DSP Processing Suite: Includes EQ, compressor, auto-level, high/low pass filter, limiter, and delay.
Premium TASCAM Mic Preamps: Low-noise, high-headroom preamps with wide gain range for studio-quality capture.
PoE Powered (Power over Ethernet): Operates through a single network cable for power and data-no extra adapter needed.
Remote Control via Software: Configure and monitor using TASCAM DCP CONNECT or EZ CONNECT on desktop or mobile.
Compact Half-Rack Form Factor: XLR connectivity in a small chassis with included surface-mount brackets.
Scene Memory and Visual Indicators: Save up to 50 system presets and monitor signal flow with status LEDs.
Spécifications
General Specifications
2 channel mic line input with phantom power support XLR
Remote mic gain control via Dante or software
2 channel line output
4 Dante input and output channels
Built in DSP with 6 in 4 out matrix mixer
24 bit resolution with sampling rates of 44.1 48 88.2 96 kHz
Half rack mountable size
Signal indicators for input and output monitoring
Scene preset function for up to 50 presets
Supports Dante daisy chaining
PoE Power over Ethernet class 0 support
Compatible with TASCAM DCP CONNECT and EZ CONNECT software
Remote control via Dante
Compatible with Windows macOS iOS and Android
Includes surface mount brackets
Optional rack shelf AK RS1 for dual unit installation
Audio Performance
Mic amp EIN minus 125 dBu
Frequency response 20 Hz to 20 kHz at 44.1 48 kHz and 20 Hz to 40 kHz at 88.2 96 kHz
Distortion THD plus N 0.005 percent
Signal to noise ratio 105 dB
Crosstalk 100 dB
Dynamic range 105 dB
Analog Inputs
Connector XLR 3 31 balanced
Minimum input level minus 74 dBu
Maximum input level plus 26 dBu
Input impedance 2 k ohms or higher
Analog Outputs
Connector XLR 3 32 balanced
Output impedance 200 ohms or lower
Nominal output plus 4 dBu or plus 6 dBu depending on reference level
Max output levels: plus 15 dBu at minus 9 dBFS, plus 18 dBu at minus 14 dBFS, plus 20 dBu at minus 16 dBFS, plus 22 dBu at minus 18 dBFS, plus 24 dBu at minus 20 dBFS
Dante Interface
Connector RJ45
Protocol Dante
Ethernet standard 1000BASE T IEEE 802.3ab
Cable requirement Cat 5e or higher STP cables
Power and Environmental
Power supply PoE class 0 or optional TASCAM PS P1220E
