Tascam SS-CDR250N
UPC/EAN #043774032648
MPN #SS-CDR250N
Network recording, FTP upload, dual SD slots, 96kHz/24-bit WAV, auto level, ducking, AES/EBU I/O, remote control, 1U rackmount, XLR/RCA inputs

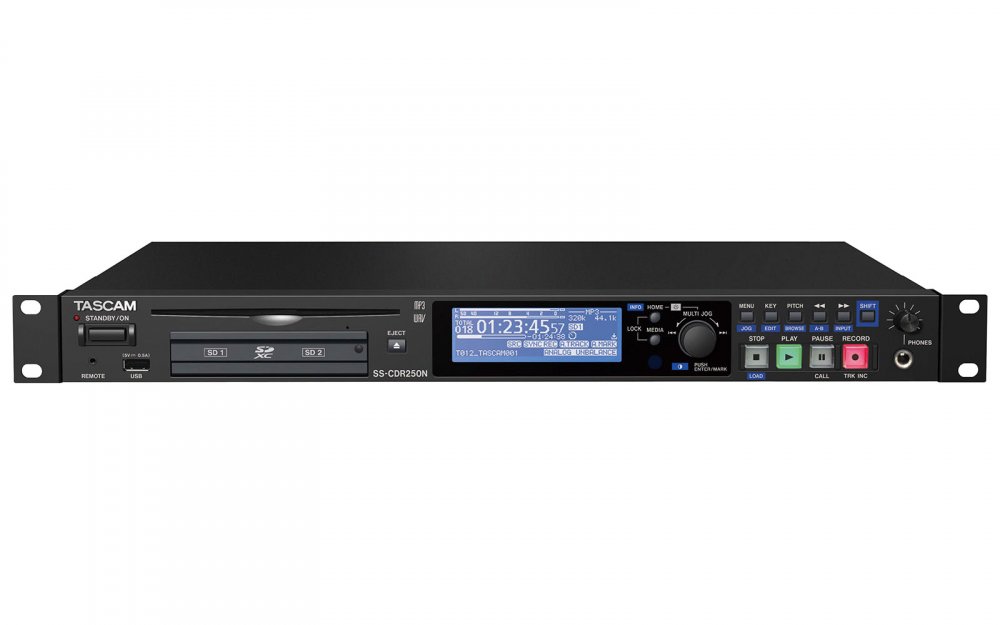

The TASCAM SS-CDR250N is a professional-grade 2-channel CD, SD, and USB recorder/player designed to streamline high-quality audio capture, playback, and file management across a networked environment. Ideal for broadcast studios, conference halls, and corporate AV setups, this next-generation unit integrates advanced automation, network control, and redundancy features to ensure efficient operation with minimal oversight. With support for recording up to 96kHz/24-bit and compatibility across multiple media types-including CD, SDXC, and USB flash drives-the SS-CDR250N combines versatility with reliability.
One of its standout features is the built-in FTP client, which allows automatic file uploads and downloads, removing the need for manual data transfers. Its event list function can be programmed for timed recording, playback, or file retrieval, making it perfect for unattended operation in environments like retail or corporate settings. Dual SD card slots offer mirror and relay recording for added security, while the inclusion of remote control apps across major platforms (iOS, Android, Windows, Mac) ensures full operability from virtually any device. Whether it's for live event capture, scheduled announcements, or centralized audio distribution, the SS-CDR250N is engineered to deliver seamless, high-quality performance.
Caractéristiques
Multi-Format Recording and Playback: Records and plays audio from SD cards, USB drives, and CDs.Network File Management: Automatically uploads or downloads audio files via FTP without needing to remove media.Timed Automation: Scheduled recording, playback, and downloads based on preset event lists.Remote Control Access: Control the unit remotely using dedicated apps for iOS, Android, Windows, and Mac.Dual SD Card Slots: Supports backup and relay recording for uninterrupted sessions.High-Resolution Audio: Supports playback and recording of high-quality audio files.Automatic File Protection: Safeguards recordings by automatically closing files during power outages.Mic Input with Phantom Power: Accepts condenser microphones directly without extra gear.Playback Versatility: Offers functions like auto cue, pitch control, ducking, repeat modes, and incremental play.Link Playback: Syncs playback between two units for redundancy or backup.Flexible Input/Output Options: Includes XLR, RCA, AES/EBU, and S/PDIF connections for both analog and digital use.Event Accuracy: Maintains accurate timing for scheduled tasks using SNTP synchronization.Compact and Rack-Mountable: Fits in a standard 1U rack space, suitable for professional installations.
Spécifications
General Specifications
2 channel CD SD USB recorder player with network capability1U rackmount size 482.6 x 45 x 300.5 mmWeight 3.2 kg 7.1 lbsPower consumption 22WOperating temperature 5 to 35 degrees Celsius
Recording Media
SD card 512MB to 2GBSDHC card 4GB to 32GBSDXC card 64GB to 128GBUSB flash memory 512MB to 128GBCD R CD RW
Audio Formats Supported
WAV 44.1k 48k 96kHz 16 24 bit SD USB CD DataMP3 44.1k 48kHz 64k to 320kbpsCD DA 44.1kHz 16 bit
Audio Channels
2 stereo 1 mono

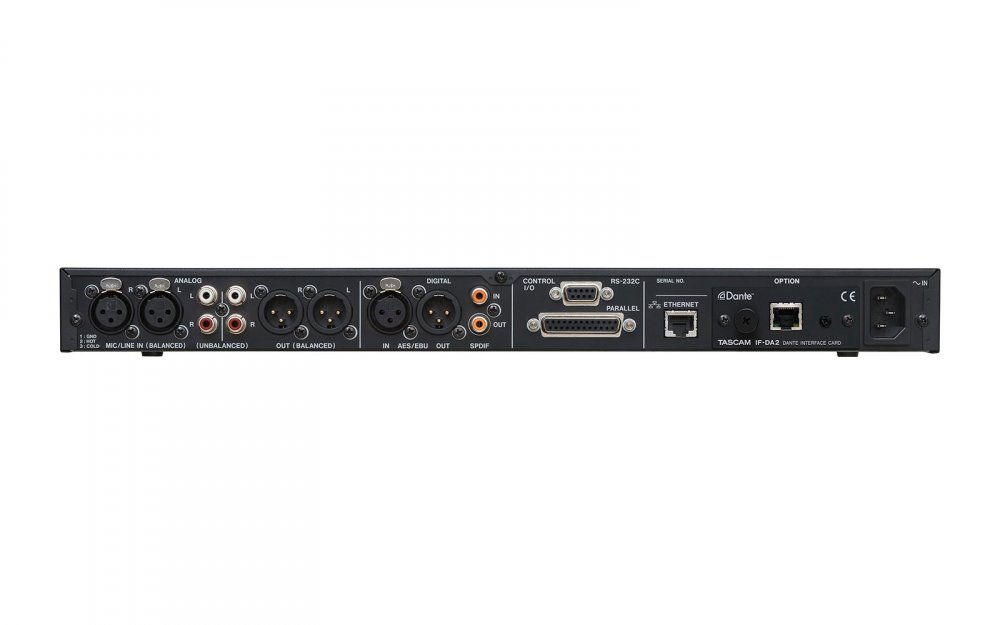

Analog Audio Inputs
RCA unbalanced minus 10dBV nominal plus 6dBV max 10k ohm impedanceXLR balanced plus 4dBu to plus 24dBu nominal max 10k ohm impedanceMic input XLR plus 4dBu max minus 70dBu min 2.2k ohm impedance plus 48V phantom power
Analog Audio Outputs
RCA unbalanced minus 10dBV nominal plus 6dBV max 200 ohm impedanceXLR balanced plus 4dBu to plus 24dBu nominal max 200 ohm impedance
Digital Audio Inputs
AES EBU XLR 44.1k 48k 96kHz 110 ohm impedanceS PDIF RCA 32k to 96kHz
Digital Audio Outputs
AES EBU XLR 44.1k 48k 96kHz 110 ohm impedanceS PDIF RCA 32k to 96kHz
Control IO
Remote front 2.5mm TRS jack RC 3F RC 20 compatibleRS 232C D sub 9 pinParallel D sub 25 pinPhones 6.3mm stereo jack 45mW plus 45mW max output
Network and Remote Control
FTP client server for file upload downloadSNTP client for time synciOS Android Windows Mac control via SS250 CONTROL appEvent List function for timed recording playback downloadOptional Dante IO via IF DA2 card
Recording Features
Up to 96kHz 24 bit resolutionDual SD card slots mirror relay recordingPower on record auto mark auto track PRE REC auto level controlDirect recording compressor limiter included
Playback Features
Program Random Single playback modesAll repeat A B repeat Call function Incremental playAuto Cue Auto Ready Ducking function Pitch Key controlMonaural mix playback EOM notification mark setting
Audio Performance
Frequency response 20Hz to 20kHz plus minus 0.5dB 20Hz to 40kHz plus 0.5 minus 3dBTotal harmonic distortion 0.002 percent or lessSignal to noise ratio 106dB or moreDynamic range 106dB or moreCrosstalk 100dB or moreEquivalent input noise minus 125dBu or less 40 ohm 20kHz LPF
Included Accessories
Power cordTASCAM RC 10 remote control with CR2025 batteryRackmount screw kitSecurity screw kitTASCAM ID registration guideOwners Manual with warranty
