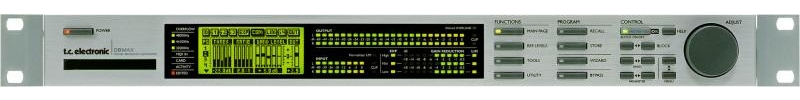

The TC Electronic DBMax is a 5-Band Level Maximizer and Audio Enhancement processor for use in digital transmission, linking, webcast and radio STL applications.

High resolution and high sample rate processing prevents unwanted distortion and listening fatigue from being generated, artifacts often associated with comparable processors.

The 5-band section in DBMax can be combined with Automatic Gain Control, Dynamic and Static Stereo Enhancement, Dynamic and Static Eq and other tools for maximizing audio impact and creating a signature sound. Balanced and unbalanced AES/EBU I/O is standard, and outputs are always active. Sample rate conversion can be invoked when using digital inputs. Analog I/O is standard and outputs are always active.

The 24 bit converters are scaled in the analog domain, with scaling under preset control, to minimize noise and maximize headroom under all operating conditions. DBMax can be remotely controlled using GPI or RS485 serial inputs.

Maximum Level
Maintain maximum level and simultaneously eliminate overshoots.

Maximum efficiency: 5-band compression

Limiting: Sample accurate, distortion reduced Limiter

Multi Slope: Add gain at mid-levels without squashing the transients

Optimum Quality
The DBMAX employ precise calculations at a full processing rate, in order to keep aliasing distortion low and audio bandwidth high.

Audio quality has been our primary concern when designing the DBMax - hence you can even cascade several units without any sonic penalties.

Bandwidth: Processing at up to 48kHz sample rate for 24kHz audio

Resolution: Processing of all 24bits of an AES/EBU Digital signal

A/D-D/A converters: 24bit resolution with analog pre-scaling

Output Formats
AES/EBU, S/PDIF and Analog outputs are all active simultaneously.

Digital outputs may be dithered to resolutions between 8 and 24bits.

Analog and Digital outputs may have emphasis applied individually.

Gain Transfer
Example of gain transfer and parameters using DBMax.

Presets
The DBMax comes loaded with 60 presets for a variety of different applications.

DBMax Internal Structure
Four selectable Insert algorithms surround the multi-band structure.
The digital output fader may be remotely set via voltage control.

Digital Inputs and Outputs
Connectors : XLR (AES/EBU) RCA Phono (SPDIF)
Format : AES/EBU (24 bit), SPDIF (20 bit), EIAJ CP-340, IEC 958,
Output Dither : HPF TPDF dither 8-24 bit
Word Clock Input : BNC, 75 Ohm, 0.6 to 10 Vpp
Sample Rates : 32 kHz, 44.1 kHz, 48 kHz
Processing Delay : 0.5 ms @ 48 kHz
Frequency Response DIO : DC to 23.9 kHz ± 0.01dB @ 48kHz

Sample Rate Conversion
Type : Asychronous
Dynamic Range : 120 dB
THD+N : -106 dB 44.1 to 48 kHz @ 1 kHz, -2 dBFS
Input Rate Range : 31 kHz to 49 kHz

Analog Inputs
Connectors : XLR balanced (pin 2 hot)
Impedance : 20 kOhm (balanced)
Max. Input Level : +27 dBu (balanced)
Min Input Level (for 0dBFS) : -4 dBu
A to D Conversion : 24 bit (1 bit, 128 times oversampling)
A to D Delay : 0.8 ms @ 48 kHz
Dynamic Range : >103 dB (unweighted), >106 dB (A)
THD : -95 dB (0.018%) @ 1 kHz -6 dBFS (FS@ +18 dBu)
Frequency Response : 10 Hz to 20 kHz: +0/-0.2dB
Crosstalk :
