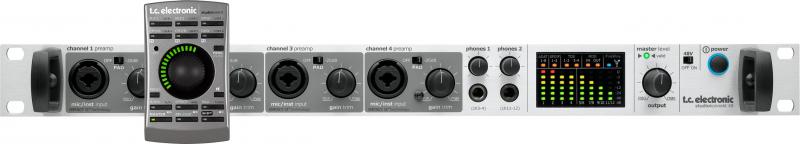

The TC Electronic Studio Konnekt 48 is the member of the FireWire powered Konnekt audio interface family offering the most comprehensive feature set that the world has ever seen in an audio interface.

This kit include the Studio Kontrol Remote. See specs below.

It is the most complete product TC Electronic has ever made, and it represents a milestone to the computer recording world.

The TC Electronic Studio Konnekt 48 offers a comprehensive array of professional features that make recording, mixing and monitoring a breeze. All essential recording tools are in one box including world-class DSP effects, a wealth of I/O options, speaker management and many other powerful tools to take your recordings to the next level.

The extensive I/O section features 4 IMPACT II preamps. With 8 line ins on the rear panel, the total amount of simultaneously streamable analog inputs is 12 as well as 12 analog outputs. Two outputs feature digitally controlled analog XLR connections for optimal connection with your main monitor speakers while the analog output section has 2 independent phones out.

The comprehensive digital I/O section features double ADAT 96 kHz SMUX, TOS, S/PDIF and Word Clock I/O and the digital part is powered by the second-to-none DICE Jet jitter elimination engine.

Studio Konnekt 48 comes with nothing short of world-class DSP effects, including the Fabrik C Studio, an easy-to-use channel strip and mastering tool that offers 4-band EQ, multiband compression and limiting based on algorithms from TC's high-end System 6000. Also running on DSPs you'll find the Fabrik R Studio no compromise reverb based on TC Electronic Reverb 4000 technology.

It has a DSP powered 24/8 digital mixer with 48-bit double precision summing on all mix points. There is no compromise routing for all outputs and a wealth of insert points offering top-notch flexibility.

Not only does Studio Konnekt 48 offer support for surround speaker systems, it does way more than that. The speaker management section is based on technology from the famous AIR speaker series, featuring individual speaker level and delay settings. The Bass Management feature gives you total control of your sub speaker and the speaker management offers instant control of up to 3 speaker sets.

Studio Kontrol Remote Unit
Studio Konnekt 48 comes with a cool, compact remote. With the Studio Kontrol remote at hand, you have access to all essential mixer parameters, including main level, mix levels, reverb level/decay time, speaker set selection, AUX sends and more. It has a built-in talkback microphone and a really cool light ring.

Anything else Well, the cool factor of this remote is upped even further by the built-in guitar tuner.

Extensive I/O section with IMPACT II preamps

4 IMPACT II mic preamps

12 analog inputs, 12 analog outputs simultaneously

High resolution input meter

96 kHz ADAT (8 channels SMUX), word clock and S/PDIF

30/28 channels simultaneously to/from DAW

Digitally controlled analog main XLR outputs

Dual headphone outs with individual amplification, level control and source

24/8 channel digital mixer with 48-bit double precision summing

Flexible 24/8 DSP mixer with total recall and DSP effects insert points

No compromise routing for all outputs

Full 48-bit double precision summing on all mix busses with 56-bit internal processing

Talkback with selectable dim setting and listen back feature

Aux send busses with flexible output routing

World-class DSP effects

4 simultaneous 4-band EQ, multiband compression channel strip and mastering effects based on TC System 6000 algorithms

No compromise built-in reverb based on TC Electronic Reverb 4000 technology

All plug-ins VST and AU compatible

Intuitive guitar tuner

ResFilter plug-in

Assimilator Konnekt plug-in

Hardware effects Integrator plug-in

Speaker management based on AIR technology

Full featured bass management section based on AIR - Speaker Management Technology

Full support for surround systems

Individual speaker level and delay settings in 0.1 steps

Selectable frequency crossover points

Support for 3 speaker systems, individually configurable, selectable from the remote

Desktop remote control with integrated talkback microphone

Full mixer at your hand

Built-in talkback mic

High resolution LED light ring

Compact design

More

DICE II JetPLL jitter elimination technology with Advanced Clock Recovery

Expandable with all other Konnekt interfaces thru TC Near

---

Desktop remote control with integrated talkback microphone

With the optional Studio Kontrol remote, you have instant access to all important mixer parameters at all times.

Use the encoder to control the selected function. The encoder controls two functions at a time - press it to shift between the two. The compact design of the remote makes it fit nicely beside the mouse in any computer based studio.

At the upper section you find the input mix. This is where you control the level of the incoming signals - the mixer channels. This section is quite flexible, and from the control panel you decide which channels to control.

Also the EFFECT button is flexible. By default it controls the reverb level and decay time, but it can also be assigned to control other parameters, for instance it can work as a midi controller.

A talkback microphone is also part of the remote. The talkback microphone is enabled by pressing the TALK button. When in talkback mode, you can use the encoder to adjust the talkback level. In order to communicate most effectively, channels are dimmed to a selectable level, and to further optimize the talkback signal, you can insert a Fabrik C Studio for EQing, de-essing or compressing the voice.

The talkback signal is routed to the DAW like any other input of Studio Konnekt 48, so you can make recordings directly from it if you want to make audio notes in your project or if you want to use it with other applications, such as Skype.

The remote also gives you direct access to the guitar tuner. When in tuner mode, the lightring will show note deviation, and by pressing the encorder, you can generate a reference tone for tuning acoustic guitars.

The connection between the Studio Kontrol remote and Studio Konnekt 48 is made by a single standard CAT5 cable. A neat solution that avoid lots of messy cables on your desk.
