Telefunken is proud to offer matched stereo sets of their ELA M 251E large diaphragm tube microphone, featuring a custom dual power supply capable of powering both microphone.
TELEFUNKEN Elektroakustik is proud to offer matched stereo sets of their ELA M 251E large diaphragm tube microphone, featuring a custom dual power supply capable of powering both microphones at one time, and a special locking flight case that will carry both sets of microphones, cables, wooden boxes, and the dual power supply.

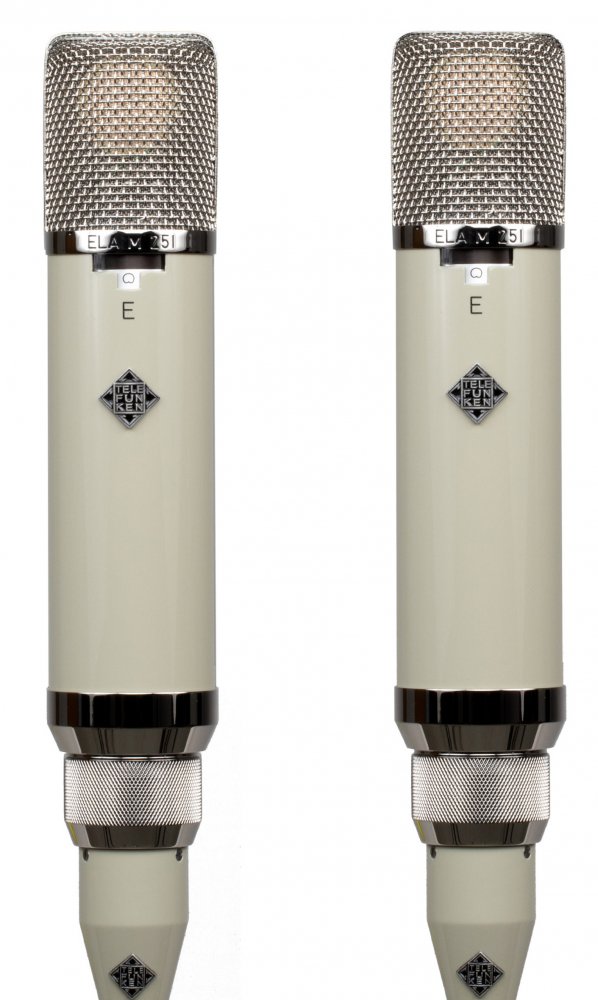

The ELA M 251E is arguably the greatest large diaphragm tube microphone ever built. Sought after by the world's best recording engineers, producers, and musicians in the know, the ELA M 251E offers a real-life sonic characteristic second to no other recording tool or microphone. The microphone features a new CK12 capsule (built from the original manufacturers technical specifications), a European made output transformer built to match the original, and a microphone-grade GE JAN 6072a vacuum tube.
Stereo microphone techniques are often used for recording classical music and large signal sources like orchestra, choirs, and large chamber groups. They can also effectively be used on drum overheads, acoustic guitars, piano, and percussion. The TELEFUNKEN ELA M 251E Stereo Set will allow versed recording engineers a variety of stereo recording techniques, including X/Y coincidental pairs when utilizing the mics in their cardioid patterns, or A/B spaced pairs while using the mics in either cardioid or omni. The option of a Blumlein pair is also available with both microphones set to figure of 8, as well as the traditional M/S (mid / side) technique when using one mic in cardiod and the other in figure of 8.
Every component in the each of the two TELEFUNKEN ELA M 251E microphones is hand-selected, allowing as close a match as is possible between each system. Capsules are tuned to each other; transformers and tube are tested for matched gain and frequency response. These sets offer the user the knowledge and comfort that the tools they are using will give identical responses for their most important stereo recording.

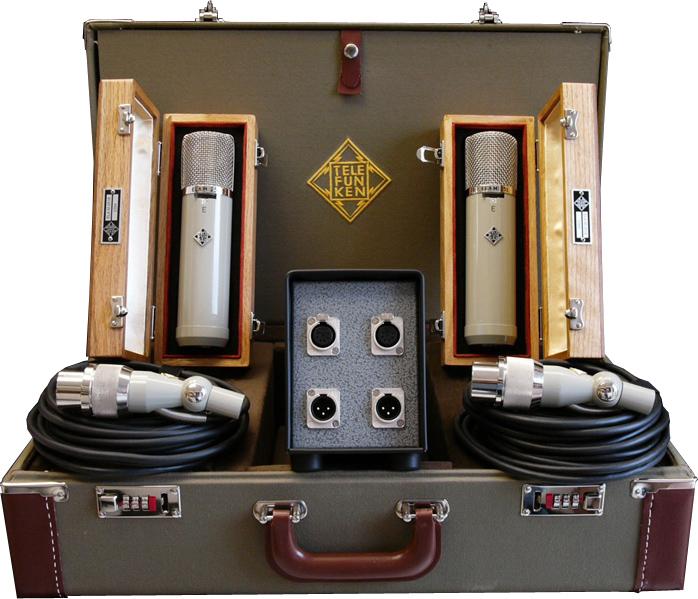

Each ELA M 251E STEREO SET comes complete with a dual M950ES power supply, 2x M850E 25' dual-shielded ACX-7 tube microphone cable, 2x WB50 wooden microphone boxes and a FC10 locking flight case.
Type: Condenser Pressure Gradient
Frequency Range: 20Hz / 20kHz
Polar Pattern: Cardioid, Omni and Figure 8
Sensitivity: 17mV/pa ± 1 dB
Frequency Range: 20Hz - 20kHz, ± 3 dB
Sensitivity: 17mV/pa ± 1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.2%
Output Impedance: 200
Maximum SPL (for 1% THD): 130 dB
S/N Ratio: 85 dBA
Self Noise (Amplifier): 9dBA
Dimensions: 216 mm L x 50 mm Dia
Weight: 596 g
Current Draw from Mains: 80 mA
Power Supply: M 950E - 7 Pin Female XLR Input, 3 Pin Male XLR Output
Cable: M 850E - 25 ft Sommer Cable, Vintage Compatible 6 Pin Female Stand Mount, 7 Pin Male XLR
Wooden Box: WB50
Flight Case: FC50 - Vintage Style Locking Combination Flight Case, FC50S for Stereo Set
GTIN (UPC/EAN) : 899051002695
Manufacturer Part Number : ELA M 251E STEREO SET
