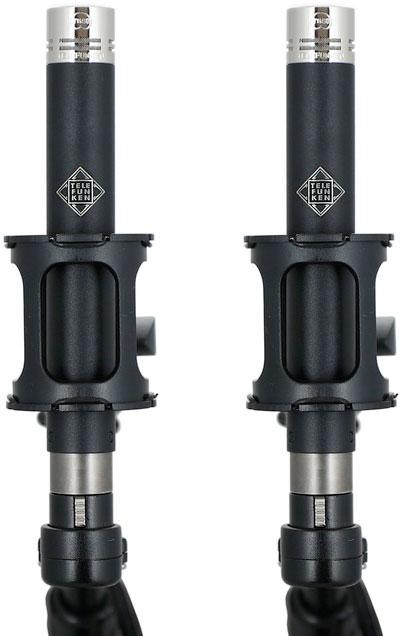

A set of M60 FET amplifiers paired with two matched TK60 cardioid, TK61 omni-directional and TK62 hyper-cardioid capsules.
With over a year and half of development and beta testing with top recording engineers, the newly designed M60 FET (Field Effect Transistor) small diaphragm microphone is TELEFUNKEN Elektroakustik's first non-vacuum tube, FET-based solid-state condenser microphone. The M60 FET Series is designed to utilize the same interchangeable TK6x capsules as the TEC Award-winning ELA M 260 small diaphragm tube microphone.
The M60 FET MASTER STEREO SET comes with two identical M60 FET amplifiers paired with matched sets of TK60 cardioid, TK61 omni-directional and TK62 hyper-cardioid capsules, all which have been measured within a strict 1dB sensitivity tolerance. This is the most thorough package of the M60 FET Series, giving you the tools and options for any small diaphragm microphone application.
The frequency response of the TK60 capsule cardioid is flat from 150 Hz to 7 kHz, with a smooth, airy presence peak at 8 kHz, making it ideal for drum overheads, hi-hat and ride cymbals, piano, acoustic guitar, and other acoustic instruments.
The TK61 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, and offers a large, open sound perfect for capturing the ambience and vibe of your instrument or recording environment . The frequency response is flat from 20 Hz to 5 kHz, with a smooth, airy presence peak at 8 kHz.
The tightened and focused polar pattern of the TK62 hyper-cardioid capsule is great for use on cymbals, percussion, and as a stereo pair for live performance recording. Its frequency response is flat from 150 Hz to 3 kHz, with a dip at 6 kHz and a smooth, airy presence peak at 8 kHz.
Utilizing a unique proprietary circuit topology, this re-interpretation of the classic FET mic amplifier produces an exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-plugged into gold-plated circuit board traces to provide an ultra-clean true Class A discrete amplifier with a frequency response of +/- 2dB from 20 Hz to 50 kHz. The output is matched with a custom American-made transformer that offers an especially low self-noise and a typical THD+N of 0.015% or better, making it ideal for critical recording applications.
The M60 FET's incredibly quick transient response captures nuances and subtleties with impressive precision and clarity. This results in an extremely detailed sonic image with definition and presence, perfectly suited for the complex character of stringed instruments and percussive sources.
The M60 FET amplifier body is finished in a durable, lightly textured black powder coat adorned with the historic TELEFUNKEN diamond badge. The microphone's XLR connector shell complements the look with a matte black nickel plated finish engraved with the model and serial number. The TK6x capsules feature a bright nickel plated enclosure with a fine gold mesh pattern.

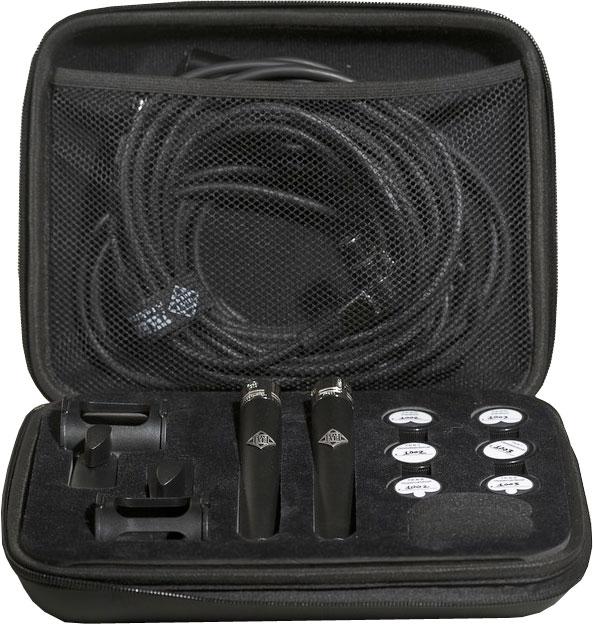

The M60 FET MASTER STEREO SET ships complete with (2) TK60 cardioid, (2) TK61 omni-directional and (2) TK62 hyper-cardioid capsules, (2) SGMC-5R 5-meter XLR cables with right angle female connector, (2) M761 elastic shock mounts, and (2) foam windscreens, all packed in a FC62 dual microphone zipper carrying case.
Type : Condenser Pressure Gradient
Capsule : TK60 TK61 TK62
Frequency Range : 20Hz / 20kHz
Polar Pattern : Cardioid, Hyper-Cardioid and Omni
Sensitivity : 8.6mV/PA +/-1db
THD at 1kHz at 1Pa : <0.10% 1kHZ at 1Pa
Output Impedance : <120 Ohm
Maximum SPL : 130db SPL (1%THD)
Self Noise : <19dB-A
Size : 5 1/2" (140mm) length x 13/16" (21mm) diameter
I recently received my pair of M60 mics, and have since put it through a few different tests with the various polar patterns as well as on different instruments. I ran them directly into my UA Apollo, and recorded in a treated room that has a fairly neutral sound to it, but by no means dead.
For acoustic guitar, both nylon and steel string I especially liked the sound of a wide spaced pair of omnis about 4 feet from my guitar. It was very full and open, with detailed, yet smooth high end. It definitely captured the subtle tones on my flamenco guitar as well, which are not as noticeable on some other mics I've used. The low end was VERY accurate and balanced, which i seldom have found on SDC`s. On piano, I found them to be quite well balanced, giving me as close to an exact sound of what i was hearing in the room as any mic I've used. What I really appreciate about these mics, is they tend to require little to no EQ to fit in a mix very nicely. I'd definitely recommend them to anyone looking for high quality SDC mics. Everything in the set feels and sounds of high quality.
