Excellent for use on cymbals and percussion, featuring one M60 FET amplifier paired with a TK62 hyper-cardioid polar pattern capsule.
With over a year and half of development and beta testing with top recording engineers, the newly designed M60 FET (Field Effect Transistor) small diaphragm microphone is TELEFUNKEN Elektroakustik's first non-vacuum tube, FET-based solid-state condenser microphone. The M60 FET Series is designed to utilize the same interchangeable TK6x capsules as the TEC Award-winning ELA M 260 small diaphragm tube microphone.
The M62 FET Hyper-Cardioid package includes one M60 amplifier paired with a TK62 hyper-cardioid polar pattern capsule. The TK62 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The TK62 provides a hyper-cardioid pattern flat in response from 150 Hz to 3 kHz, with a dip at 6 kHz and a smooth, airy presence peak at 8 kHz. This tightened polar pattern is great for use on cymbals, percussion, and as a stereo pair for live performance recording.
Utilizing a unique proprietary circuit topology, this re-interpretation of the classic FET mic amplifier produces an exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-plugged into gold-plated circuit board traces to provide an ultra-clean true Class A discrete amplifier with a frequency response of +/- 2dB from 20 Hz to 50 kHz. The output is matched with a custom American-made transformer that offers an especially low self-noise and a typical THD+N of 0.015% or better, making it ideal for critical recording applications.
The M60 FET's incredibly quick transient response captures nuances and subtleties with impressive precision and clarity. This results in an extremely detailed sonic image with definition and presence, perfectly suited for the complex character of stringed instruments and percussive sources.
The M60 FET amplifier body is finished in a durable, lightly textured black powder coat adorned with the historic TELEFUNKEN diamond badge. The microphone's XLR connector shell complements the look with a matte black nickel plated finish engraved with the model and serial number. The TK6x capsules feature a bright nickel plated enclosure with a fine gold mesh pattern.

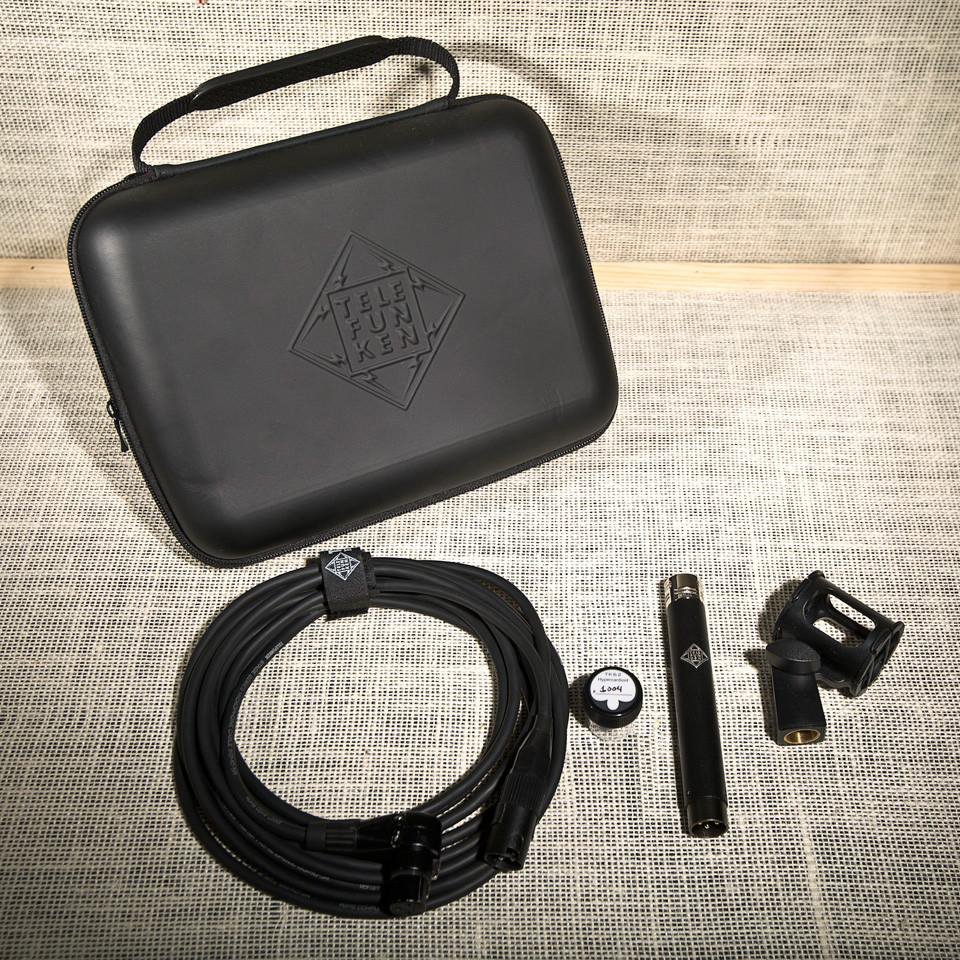

The M62 FET Hyper-Cardioid system ships complete with an SGMC-5R 5-meter XLR cable with right angle female connector, M761 elastic shock mount, and a foam windscreen, all packed in an FC61 zipper carrying case.
Type : Condenser Pressure Gradient
Capsule : TK62
Frequency Range : 20Hz / 20kHz
Polar Pattern : Hyper-Cardioid
Sensitivity : 8.6mV/PA +/-1db
THD at 1kHz at 1Pa : <0.10% 1kHZ at 1Pa
Output Impedance : -120 Ohm
Maximum SPL : 130db SPL (1%THD)
Self Noise : <19dB-A
Size : 5 1/2" (140mm) length x 13/16" (21mm) diameter
