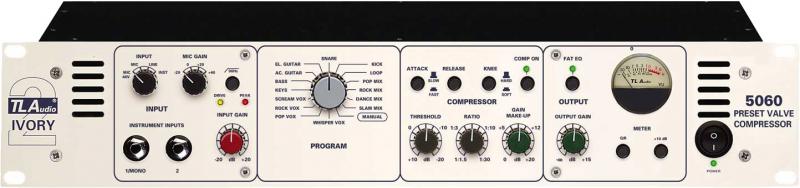

The TL Audio 5060 is the latest product to join the acclaimed Ivory 2 series. Using the same high quality discrete microphone preamp as other Ivory 2 products the 5060 also has stereo line level or stereo instrument inputs. The 5060 is equally versatile as a front-endtracking device or as the final stage mixdown or mastering compressor. One set of controls operates both the channels for quick and easy setup. The compressor section has 15 expertly programmed presets designed to work with a typical selection of vocal and instrumental sources as well as a manual mode for self adjustment of the compressor. The output section includes a Fat EQ'switch for adding some presenceor weightto your signal.

As with all the mono or stereo Ivory 2 units it is possible to fit the optional D0-2 converter card into the 5060 for premium quality 24-bit SPDIF analogue to digital conversion. This allows you to connect to your Hard Disc Recorder, Mixer or Soundcard in either an analogue or digital format.

The combination of flexibility, ease of use and the renowned warmth of the TL Audio valve circuit design makes the 5060 unbeatable for value and performance.

---

Features

Valve preamp stage with mic, line and front panel instrument inputs

Compressor with 15 presets and a manual mode with user adjustable controls

Hi-pass 90Hz filter on the input stage with Fat EQcontour at the output stage

VU metering of output level, output level +10dB and compressor gain reduction

One set of controls for mono or stereo use

Automatic linking for stereo signals

24-bit digital interfacing via the optional DO-2 digital output card

---

Specifications

Preamp: Input Gain +16 to +60dB (mic input), -20 to +20dB (line input)

Compressor: Threshold: +10 to 0dB, Ratio: 1:1.5 to 1:30, Attack: 0.5 or 5ms, Release: 0.2 or 1.5s, Gain Make Up: 0 to +20dB, Fat EQ +2dB @ 50Hz, -0.9dB @ 720Hz, +1.8dB @ 10kHz

Master Section Output Gain: -to +15dB

PSU: Internally adjustable for 230V 50Hz or 115V 60Hz operation

Typical Consumption: 30VA

Dimensions: W: 483 x H: 88 x D: 200mm (2U 19" rack mounting)

Shipping Weight 6kg

(The above specifications are subject to change without notice)
