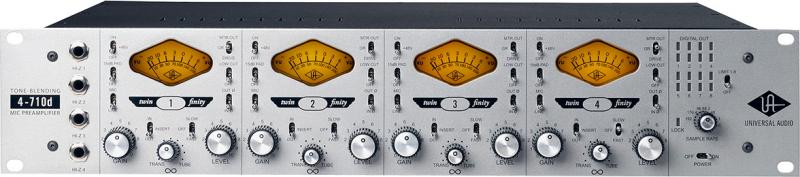

Universal Audio 4-710d Twin-Finity
Save 19.9%, MSRP $3369.00
Four-channel tone-blending "Twin-Finity" preamps and 1176-style compression with Built-In A/D Converters
The Universal Audio 4-710d is a boutique quality, four-channel microphone/line preamplifier with unique tube and solid-state tone blending capabilities - perfect for a wide range of microphone and instrument sources. This versatile multi-channel preamp offers selectable 1176-style compression circuitry on each channel, plus four additional line inputs feeding eight channels of pristine analog-to-digital conversion. Building upon UA's classic analog design approach, combined with smart modern features, the 4-710d is the most flexible preamp in the UA lineup.
At the core of the 4-710d are four channels of tone-blending "Twin-Finity" mic preamps with true-bypass 1176-style compression, including specially tuned "fast" and "slow" settings. Each of the four mic preamp channels allows for continuously variable phase-aligned tone, between a 100% tube and 100% solid-state signal path. Send and return jacks are available for external processing or signal access.
Four TEC Award-winning 710 Twin-Finity? microphone/line preamps, each featuring:Dual-path 285-volt Class-A tube and transimpedance solid-state preampsPhase-aligned tone-blending of tube and solid state circuits, creamy to crunchyNewly designed 1176-style compression circuit per preamp channelJFET Direct Input with 2.2M ultra Hi-Z impedance w/auto input overrideLarge backlit VU meters for flexible metering of input drive, gain level, and gain reductionBalanced send/return inserts (half-normalled)48V phantom power75 Hz low cut filterPolarity switchMonolithic balanced output stage
Eight channels of high quality 24-bit A/D conversion:Selectable sample rates up to 192 kHzDigital output via dual ADAT optical and AES/EBU DB-25 connectors8-channel soft limiter (switchable for all channels)Ultra-low jitter clock subsystemLED metering array with clip/hold indicators75 BNC work clock I/ODigital outputs anti-pop protection on power-up
April 1, 2020
Really shines for rich midrange content
Every preamp has it's place, or perhaps more accurately, provides you with one.
I had been overlooking this unit, using it mainly for it's ability to insert other preamps and be used as an 8 channel ADAT interface with great clocking. The reason I shied away is that it always sounded kind of small to me compared to other units. Read more
September 8, 2016
Great box and a central part of my 5.1 Post Audio Studio
I got this as part of a deal a few years ago and am still leaning on it as my go-to box. I track a lot of voiceover and ADR through it. Its digital output is synched perfectly to my HD OMNI via word clock. One of the most amazing features-- I actually have this wired into my rack to take full advantage- is its ability to mix external sources into the outputs. Read more
July 25, 2016
Vraiment surpris et content.
J'avais acheté un Twin Finity 710 au départ pour ajouter à ma collection, en espérant tirer profit du Tone Blending, à titre de "couteau suisse" qu'on utilise à toutes les sauces. J'ai une collection exhaustive de préamps et processeurs. Conquis, j'ai rapidement commandé la version à quatre canaux et limiter. Read more
January 26, 2016
Great sound, really versatile
Love this piece!
I was doing some production for a folk group and the option to blend between a transformer and a tube really gave me an array of color. Sounds really nice when you drive them too. Love the compression and am really happy with my purchase. Read more
