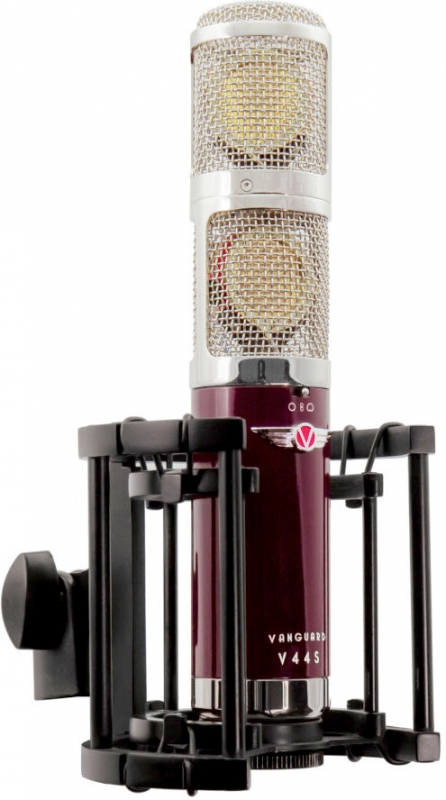

The V44S is a stereo large-diaphragm multi-pattern FET condenser microphone



Lovingly crafted by experts over 2 years, it is designed to be a versatile, reliable, professional tool in the vein of highly-sought-after vintage stereo condensers of yesteryear. With a pair of coincident twin custom-voiced multi-pattern capsules, you can utilitize X/Y, Mid-Side, Blumlein, and other less conventional stereo microphone techniques in a single microphone. With an all-new detented heavy-duty rotation mechanism, versatile splitter box, premium cryogenically-treated FET circuitry, and a VLSM shockmount, the V44S is the first and last stereo microphone you'll ever need to reach for.

PERFORMANCE
We designed the V44S with the character of classic stereo microphones in mind, while also utilizing modern technology & design to meet the demands of today's recording professionals. Our ultra-thin 3µm edge-terminated capsule diaphragms are extraordinarily sensitive, ensuring that every nuance and detail of the performance is faithfully captured.

Both custom-voiced capsules are independently switchable between cardioid, omnidirectional, and figure-8 pickup patterns, enabling X/Y, Mid-Side, and Blumlein stereo mic'ing within one microphone, as well as less conventional stereo techniques.

One of the biggest frustrations we've heard from users of stereo microphones is the flaws of current and past headbasket rotation assemblies. Too often, the current designs are fragile and prone to noisy operation, breakage, and signal loss. We designed a heavy-duty, punched-steel rotation mechanism which detents every 15 degrees for reliable, durable operation.

The included splitter box contains an additional phase-reversed top capsule output, which is perfect for less-than-ideal recording conditions such as concert taping. This allows mid-side recording with no additional mixer patching.

After hundreds of hours of listening and testing exhaustive design variations with world-class engineers, we can confidently say that this microphone will vastly exceed the performance of other stereo microphones in its price range, and rival the performance of stereo microphones costing several times more.

DESIGN
The VANGUARD V44S is very different from other microphones in its price range. It is designed and precision-built in limited quantities to "no-compromise" standards, with final assembly and 100% testing taking place here in Southern California.

We started with twin extra-large 34mm edge-terminated, gold-sputtered 3µm Mylar dual-capsule assemblies and custom-voiced them with a proprietary hand-tuning process, placing each capsule in an open-weave headbasket for a natural sound with low internal reflections. The top headbasket rotates up to 90 degrees, with detents every 15 degrees for repeatability of settings.

We then designed a transformerless solid-state circuit that matches the unique musical properties of our capsules and loaded it with premium-grade, over-spec components sourced from manufacturers around the world. We cryogenically treated critical components in the signal & power paths, including an ultra-high-grade FET.

Aesthetically, the precision-machined brass body is coated with our signature Pinot Noir, finished with a deep, lustrous gloss, and accented by polished nickel trim and a precision-cast Vanguard badge. Your V44S's serial number is laser-engraved on the lower rear of the microphone.

The V44S was designed by a team of experts with more than 65 years of experience and vetted by award-winning engineers and producers.

QUALITY
The V44S was designed in the USA, and undergoes final assembly in sunny Southern California. We perform 100% quality control - every single piece of your microphone kit undergoes a series of stringent audio and visual tests here in Southern California before being hand-packed.

Every part of the V44S was designed to be robust and reliable. Wherever possible, components were over-specced. The deep-cycle cryogenic treatment improves the lifespan and performance of critical electronic components. Brass, steel, aluminum, and zinc are part of the heavy-duty construction.

When you buy a V44S, you also get a VLSM Heavy-Duty Shockmount. We wanted to rethink the standard "spider-style" shockmount of old, and designed the VLSM with a few nifty features. First is the open front, which allows you to position the microphone as close to the source as necessary. Second, we install aerospace-grade suspension rings that won't break, sag, crack, or stretch over time. This shockmount was designed to fit any microphone with M22x1 threading, so you also can use it with a number of microphones from other manufacturers.

The V44S also comes with the our utility splitter box, which allows you to break out the 5-pin microphone cable into conventional 3-pin XLR. The splitter box contains a transformer-isolated phase-inverted top capsule output in addition to the standard top-capsule output, allowing for mid-side operation in less-than-ideal recording conditions with no patching at the mixer. An additional two standard XLR inputs allow you to use other microphones, such as the Vanguard V13, in the same conditions.

Finally, we included a windscreen for outdoor recording situations.

When not in use, your V44S should be stored in its padded pinewood box.

The aluminum combo-lock carrying case keeps your V44S microphone, pinewood box, cable, windscreen, and splitter box in one place.

ACCESSORIES
When you buy a V44S, you also get a VLSM Heavy-Duty Shockmount. We wanted to rethink the standard "spider-style" shockmount of old, and designed the VLSM with a few nifty features. First is the open front, which allows you to position the microphone as close to the source as necessary. Second, we install aerospace-grade suspension rings that won't break, sag, crack, or stretch over time. This shockmount was designed to fit any microphone with M22x1 threading, so you also can use it with a number of microphones from other manufacturers.

The V44S also comes with the our utility splitter box, which allows you to break out the 5-pin microphone cable into conventional 3-pin XLR. The splitter box contains a transformer-isolated phase-inverted top capsule output in addition to the standard top-capsule output, allowing for mid-side operation in less-than-ideal recording conditions with no patching at the mixer. An additional two standard XLR inputs allow you to use other microphones, such as the Vanguard V13, in the same conditions.

Finally, we included a windscreen for outdoor recording situations.

When not in use, your V44S should be stored in its padded pinewood box.

The aluminum combo-lock carrying case keeps your V44S microphone, pinewood box, cable, windscreen, and splitter box in one place.

Features

Capsule & Electronics
Twin custom-voiced, edge-terminated 34mm dual-capsule assembly with 3µm gold-sputtered Mylar diaphragms
3 independently selectable polar patterns per capsule
Electronically-balanced solid-state circuitry loaded with premium-grade components
Ultra-low-noise JFET design
Deep-cycle cryogenic treatment of critical signal & power path components
90º rotatable top capsule with 15º detents
Versatile splitter box for mobile & live recording conditions

Construction
Heavy-duty brass, aluminum, steel, and zinc construction
Robust punched-steel capsule rotation mechanism
Open-weave headbasket for low internal reflections and "open-air" voicing
Each V44S comes with its own laser-engraved serial number
Over-spec componentry
Deep-gloss Pinot Noir finish
Polished nickel trim
Precision-cast Vanguard badge
Final Assembly & 100% Quality Control in California, USA

Specifications

  • Transducer Type: Condenser
  • Capsule Size: 1.34 / 34mm (dual-capsule)
  • Diaphragm Size: 1.04 / 26.4mm
  • Capsule Diaphragms Thickness: 3µm
  • Electronics Type: Solid-state, electronically-balanced output
  • Output Impedance: 200
  • Max SPL: appx. 135dB
  • Frequency Response: 20Hz-20000Hz
  • Equivalent Noise Level:
  • Reviews

    5.0
    Archtop Studios
    Woodstock New Brunswick
    March 1, 2018
    Vanguard Audio Labs V44S Stereo FET Condenser
    What can I not say about this mic. The build quality is there and its looks and how it sounds. I like that it is a real stereo mic that you can have two singers singing into it and and it all comes up on one track. Vanguard has raised the bar on there mics and I own the tube mic also. Read more
