Waves LIVE eMotion for LV1
MPN #AIOCL
64 stereo channels, 44 buses, 16 preamps, 21.5" touch screen, 17 motorized faders, onboard processing, ultra-low latency, compact 38 lb. build
The Waves eMotion LV1 Classic is a groundbreaking live mixing console that brings the power and precision of Waves' award-winning technology into a compact, fully integrated hardware solution. Designed with input from live sound engineers, the LV1 Classic combines 64 stereo channels, 44 stereo buses, and 16 pristine Waves Signature Preamps into a streamlined form factor. It pairs a 21.5" multi-touch display with 17 motorized faders for fast, intuitive control, while its 32-bit float mix engine ensures pristine sound clarity and ultra-low latency. Whether mixing front-of-house, monitors, or broadcast, the LV1 Classic delivers studio-grade sonic performance in a format ready for the rigors of the road.
What sets the LV1 Classic apart is its unmatched processing depth and flexibility. It comes with 16 essential Waves processors onboard and supports seamless upgrades to over 160 additional plugins-making it one of the most powerful live sound consoles available. Features like fully customizable mixer modes, dual independent mixer windows, remote control via iPad apps, and expansive I/O scalability through Waves' SoundGrid network make this console a true powerhouse for modern live production. With support for immersive in-ear monitoring, auto-mixing with Dugan Speech, and effortless expandability via premium stageboxes and additional DSP servers, the eMotion LV1 Classic isn't just a mixer-it's a complete live sound ecosystem in a flight-ready package.
Caractéristiques
Fully Integrated Console: Combines hardware and software in one compact, powerful unit for live sound mixing.64 Stereo Channels, 44 Buses: Handles complex live mixes with ease, offering flexible routing and control.Waves Signature Preamps: Includes 16 high-end preamps for pristine audio capture and rich harmonic options.Quick-Access Interface: Large 21.5" touch screen and 17 motorized faders for fast, intuitive control.Built-In Award-Winning Processing: Includes 16 studio-quality Waves processors for EQ, dynamics, effects, and more.All Processors on All Channels: Use any plugin on any input, group, aux, or master channel with full flexibility.Expandable and Scalable: Add more I/O, DSP, stageboxes, or connect multiple consoles via SoundGrid.Remote Mixing from Anywhere: Control mix from FOH or stage with mobile and tablet apps.Compact and Portable: Lightweight design fits tight spaces and is travel-friendly for touring.Studio-Quality Mixing on Stage: Mix with creative freedom using studio-grade plugins and tools.Immersive In-Ear Mixing Upgrade: Optional eMo IEM plugin delivers rich, clear monitor mixes with no extra hardware.Auto-Mixing Upgrade: Dugan auto-mixing software handles multiple mics automatically and cleanly.Flexible Mixer Layout: Customize screens, controls, and workflows to suit your mixing style.Easy Recording & Playback: Record up to 128 tracks or play back stereo directly from a USB drive.Simple Networking: Connect multiple consoles and share I/O easily over Waves' SoundGrid network.
Spécifications
General Specifications:
Model: Waves eMotion LV1 Classic
Form Factor: Compact live mixing console
Weight: 38 lbs. (17.2 kg)
Dimensions: 22" (560 mm) x 15.8" (402 mm) x 22.1" (561 mm)
Construction: Flyable on commercial flights with proper casing
Audio Channels:
64 mono/stereo input channels
44 mono/stereo mix buses
8 group buses
24 aux buses
8 matrix buses
3 master buses
Cue bus
Mix Engine:
Double-precision 32-bit floating point
Sample rate support from 44.1 kHz to 96 kHz
Latency as low as 0.8 ms
Preamps and I/O:
16 Waves Signature digitally controlled mic/line preamps
12 analog line outputs
2 AES3 digital outputs
1 AES3 SRC digital input
Control Surface:
21.5" multi-touch screen with 1000 Nit brightness
16 motorized 100 mm Alps faders
1 master motorized fader
16 precision rotary encoders
1 master encoder
Integrated mini-displays for channel metering
Select, Mute, Solo keys per channel
16 layers with utility keys and tempo pad
16 user-customizable shortcut keys
2 additional customizable shortcut keys
Processing Capabilities:
Internal Waves SoundGrid DSP engine
8-slot plugin rack per input and mix channel
All processors available on all channels
16 Waves processors included with console
Included Plugins:
F6 Dynamic EQ
Waves Tune Real-Time
eMo Q4 Equalizer
eMo D5 Dynamics
eMo F4 Filter
GEQ 30-band Graphic EQ
X-FDBK Feedback Eliminator
PSE Mic Bleed Reduction
Renaissance Compressor
Renaissance Bass
Doubler
H-Delay
Renaissance Reverb
TrueVerb
Magma Tube Channel Strip
GTR3
Networking and Expansion:
Supports up to 14 SoundGrid-compatible I/O devices
Connects to Dante and MADI via SoundGrid bridges
4 SoundGrid switch ports (2 Ethercon + 2 RJ45)
Add up to 3 additional processing servers
Add up to 4 backup servers
Recording and Playback:
Records 16 tracks locally via USB
Records up to 128 tracks via remote computer
Stereo playback via USB
Software and UI Features:
Two independent Mixer windows
Multiple mixer modes for function-focused views
Custom mixing layouts and channel colors
Unicode multi-language support
Up to 1000 recallable scenes
Recall Safe and Scope Filters
8 Mute groups
16 Link DCAs with Spill function
System-wide patching
Delay alignment controls
Digital preamp control with V-Gain tracking
Remote Control Options:
MixTwin iPad app with full screen mirroring
MyFOH iPad app for level, pan, and send control
MyMon app for individual performer monitor mixes
Optional Software Upgrades:
eMo IEM plugin for immersive in-ear monitoring
Dugan Auto-Mixing for up to 64 microphones
Stagebox Expansion:

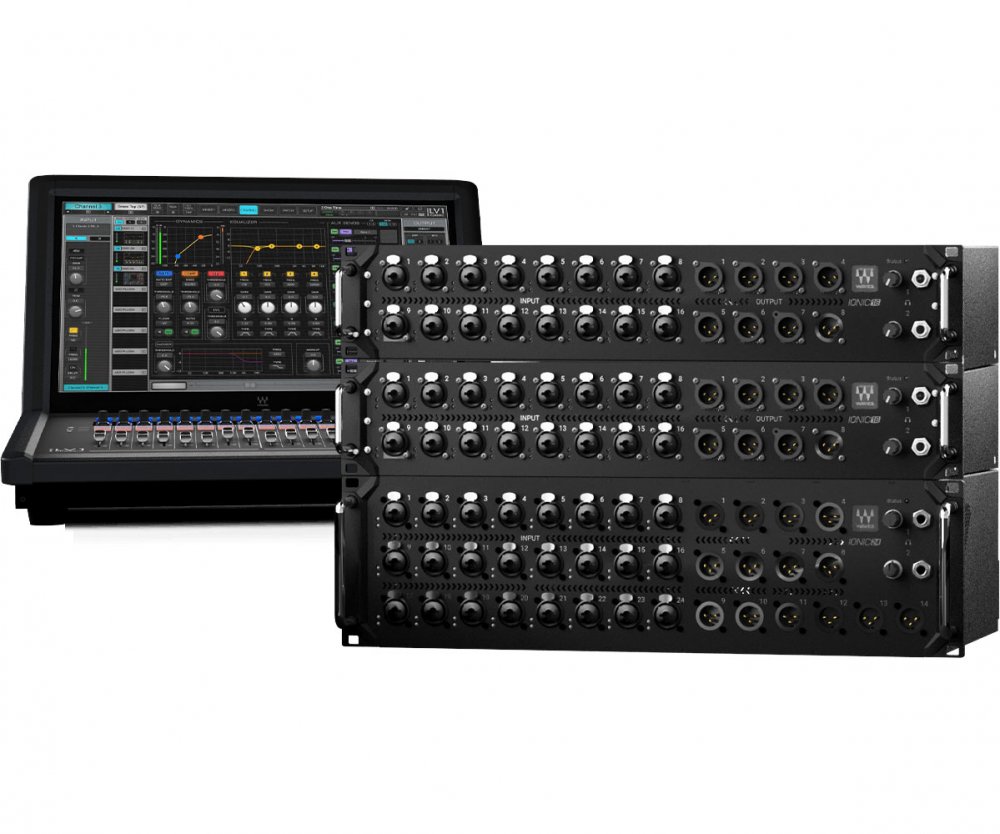

Compatible with Waves IONIC 16 and IONIC 24 stageboxes
Stageboxes feature Waves Signature Preamps
Portability:
Lightweight and compact design for travel
Suitable for deployment in space-constrained venues
Flight-ready dimensions and weight for commercial air transport
