Waves PAZ Analyzer

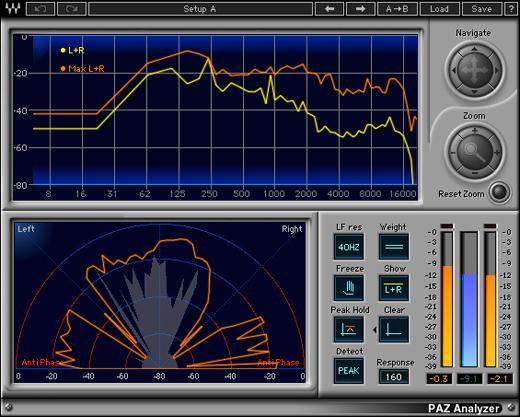

The PAZ Analyzer generates a comprehensive realtime visual representation of your audio's stereo positioning, frequency spread, and peak/RMS levels.

  • Diamond
  • Essentials
  • Forensics Package
  • Gold
  • Horizon
  • Live
  • Mercury
  • Platinum
  • Pro Show
  • SD7 Pro Show
  • Silver
  • Sound Design Suite
  • Features
  • Position, Frequency and Meter components
  • Real-time vector display with zoom
  • Peak or RMS frequency analysis modes
  • L/R peak and RMS displays, with individually re-settable peak hold values
  • Optional resolution in 10Hz steps for precise analysis below 250Hz
  • 52 or 68 band analysis
  • Save results as text file
  • Download Delivery
  • Specifications
  • LF Resolution 40Hz, 20Hz and 10Hz
  • Weight Un-weighted, dBA, dBB or dBC
  • Freeze Freezes the display
  • Show L and R independently, or L+R (summed)
  • Peak Hold On/Off
  • Clear Clears the peak hold
  • Detect Peak or RMS
  • Response 50ms to 5,000ms
  • Frequency Gain Graph -80dB to 0dB, 6Hz to 20,660Hz
  • Navigate Scrolls the screen when zoomed in
  • Zoom Horizontal and Vertical +/-
  • Reset Zoom
  • Phase Graph -80dB to 0dB, -90° to +90°
  • Output Meter L/R Peak Meter -40dB to 0dB with peak hold and clip indicators
  • Summed Loudness Meter (L + R -6dB) -40dB to 0dB
  • Reviews
    Price *
    Free shipping in Canada. Conditions
    Additional information
    For more information about the PAZ Analyzer, please visit the website of Waves
