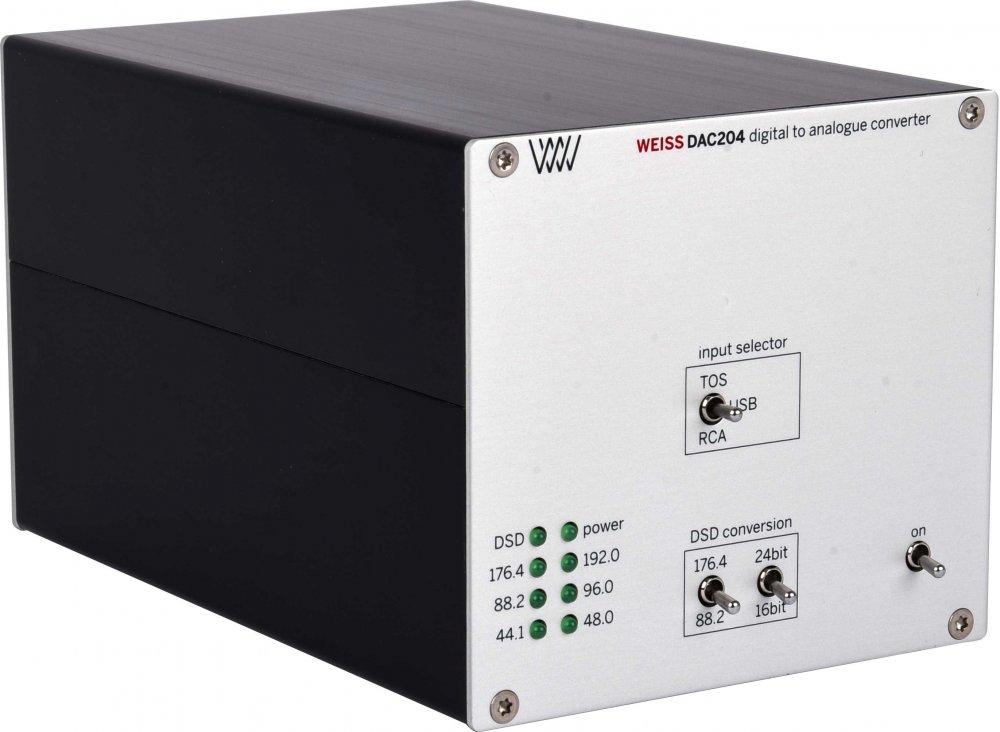

Weiss DAC 204
MPN #DAC204
USB, S/PDIF D/A Converter 24 Bit/384kHz/DSD and D/D Converter
Dare we call the DAC204 a Swiss army knife It is certainly the most versatile digital-to-analogue converter in Weiss Engineering?s product offering.
Use the DAC204 for easy switching between multiple units with digital outputs - including a computer or mobile with USB out - and enjoy the pristine and low-jitter conversion to analogue audio from the unit?s outputs. The DAC204 can also convert DSD audio to PCM and offers a digital output in the AES/EBU format.
Features
COVER ALL YOUR BASES
The DAC204 is a multi-format digital-to-analogue and digital-to-digital converter. Its many input and output options make it equally useful for use in a professional mixing or mastering studio as for an audiophile-grade listening room.
It employs no less than four oversampling sigma-delta D/A converters per channel, operated in parallel for enhanced signal-to-noise performance.
DIGITAL ACCEPTED HERE
The DAC204 accepts incoming digital audio streams straight from any USB-equipped computer, tablet, or mobile phone. It can also receive S/PDIF and AES/EBU audio via its S/PDIF or Toslink connectors.
OUTGOING AUDIO
The DAC204 converts the incoming digital streams to analogue audio, which simultaneously appears on its balanced XLR connectors and unbalanced RCA connectors.
It can also perform digital-to-digital conversion and output digital audio in AES/EBU or S/PDIF formats through the corresponding connectors and a BNC output connector.
Should the incoming audio be in DSD format, the DAC204 can convert that to PCM.
STAY CONNECTED
The DAC204 can be permanently connected to multiple digital units, and the user can easily switch between them with the front-mounted Input Selector switch.
PRODUCT COMPARISON
The DAC204 is a relatively affordable option to Weiss Engineering?s higher-grade units. It has a reduced feature set but offers conversion quality far above competing products in the same price bracket.
It does not have the on-board digital processing capabilities of the DAC501 or the HELIOS. Nor does it include a headphone output or remote control.
Specifications
DIGITAL INPUTS
The DAC204 has a total of three digital stereo inputs:
USBTwo AES/EBU or S/PDIF on Toslink or RCA connectors.
Accepted formats: PCM 44.1kHz up to 384 kHz, DSD 64x / 128x.
ANALOG OUTPUTS
Line out unbalanced on RCA connector.Line out balanced on XLR connector.

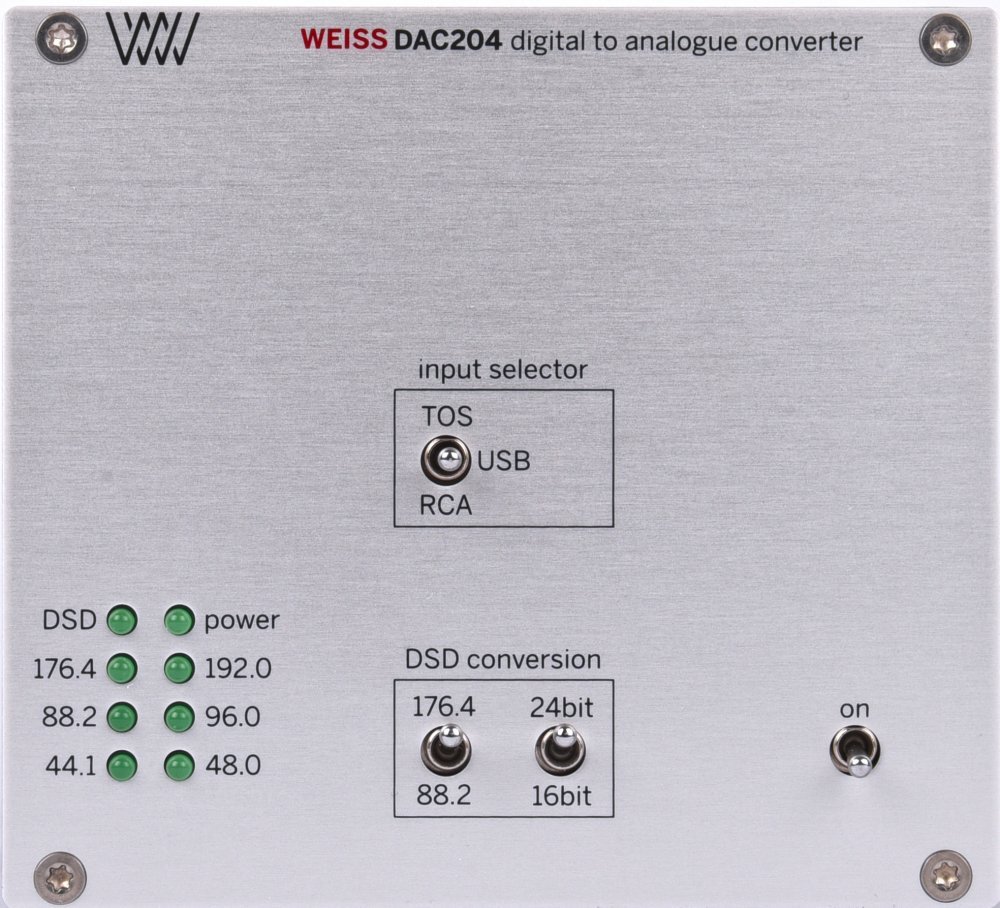

FRONT PANEL CONTROLS
An Input Selector switch, to select the active input (USB, Toslink, or RCA).Two switches for DSD to PCM conversion settings.Power on/off switch.

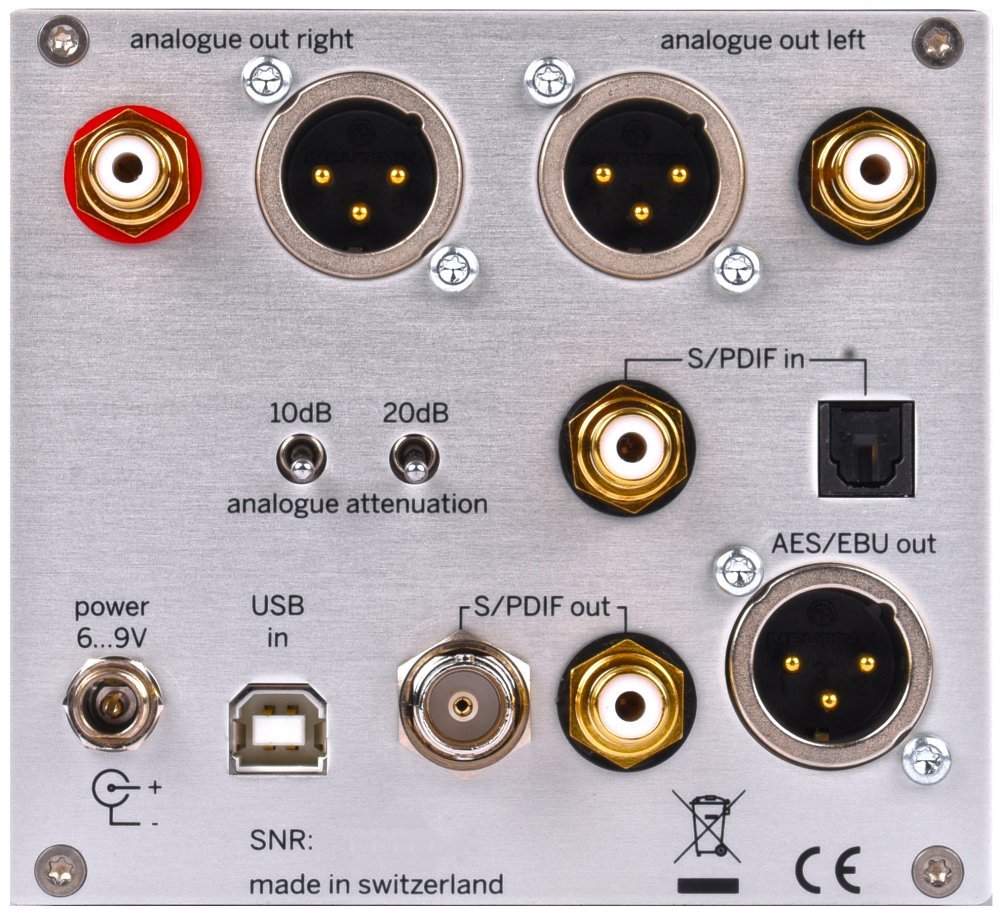

BACK PANEL ELEMENTS
Digital inputs on USB, RCA, and Toslink connectors.Analog outputs on XLR and RCA connectors.Digital outputs (AES/EBU) on stereo XLR, RCA, and BNC connectors.Two toggle switches for output level setting.External power supply connector.
DIMENSIONS
DAC204
Depth: 16.5 cm / 6.5 inchesWidth: 10.5 cm / 4.2 inchesHeight: 9.5 cm / 3.8 inches
POWER SUPPLY
An external power supply is included with the unit. All sensitive voltages have their own linear regulators. The result is an analog output free of ?digital noise? and channel crosstalk.
