Weiss DAC 205

MPN #DAC205

$3480.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

Professional D/A converter with AES/EBU (S/PDIF) inputs and extremely efficient Jitter attenuation

Mechanics
The DAC205 is housed in a silver anodized aluminum frame.

Power Supply
Supplied with medical grade power supply. Optional power supply from our PSU101 discrete reference power supply.

Synchronization
Extremely efficient Jitter attenuation is applied.

Digital Inputs
There are one RCA socket, and one Toslink input connectors.

Analog Outputs
Connect your preamplifier to the output connectors of the DAC205. Use either the symmetrical (balanced) lines (XLR) or the asymmetrical (unbalanced) lines (RCA). It is also possible to use both outputs simultaneously. DAC205 and DAC204 use the same d/a module. DAC204 adds USB input for d/a function and digital output capability.

Front panel controls

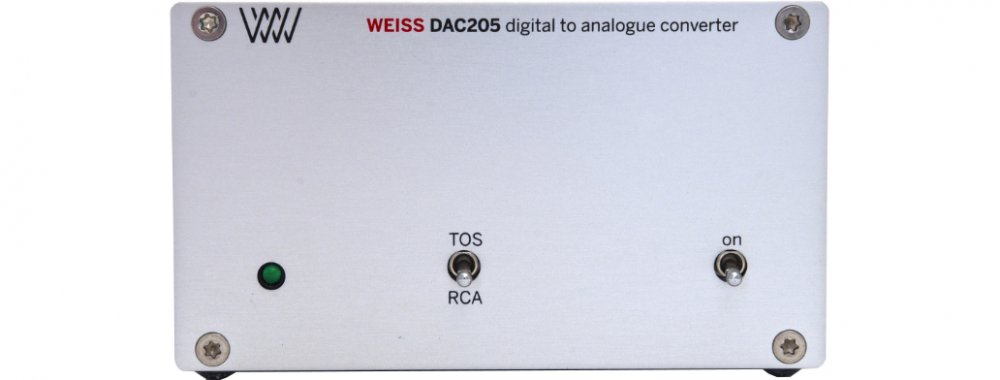

There is a green LED for power on indicator. A switch to select Toslink/SPDIF or RCA input. A power switch handles the power on/off for the external power supply input.

Back panel elements
There is a power inlet for the external power supply. Two toggle switches for 4 output level settings. One RCA and one Toslink input connectors and analog outputs on XLR and RCA convectors.

Jitter suppression
Several signal reclocking schemes are combined for a high jitter attenuation.

Main Feature
The DAC205 is Oversampling sigma delta D/A converters are used. Four D/A Converters per audio channel are operated in parallel for enhanced signal to noise performance.

Digital Inputs
There are two AES/EBU (S/PDIF) inputs on RCA and Toslink (optical) connectors. The sampling frequencies supported are 44.1, 48, 88.2, 96, 176.4 and 192kHz.

Analog Outputs
The outputs are balanced on XLR connectors and unbalanced on RCA connectors. The XLR outputs have a 6dB higher level than the RCA outputs. The XLR outputs (XLR pin1 and pin3) must not be shorted to ground. i.e. there is no servo circuitry implemented.

Output Level
Two switches allow to set 4 different output levels at 10dB steps.

Features

Inputs: There are two AES/EBU (S/PDIF) in-puts on RCA and Toslink (optical) connectors. The sampling frequencies supported are 44.1, 48, 88.2, 96, 176.4 or 192 kHz.

Outputs: The outputs are balanced on XLR connectors and unbalanced on RCA connectors. The XLR outputs have a 6dB higher level than the RCA outputs. The XLR outputs (XLR pin 2 or pin 3) must not be shorted to ground, i.e. there is no servo circuitry imple mented.

Output Level: Two switches allow to set 4 different output levels at 10dB steps.

Sampling Rates, Word - length: 44.1, 48,88.2, 96, 176.4, 192 kHz at up to 24 Bits are supported.

Jitter suppression: Several signal reclocking schemes are combined for a high jitter attenuation.

Converters: Oversampling sigma delta D/A converters are used. Four D/A Converters per audio channel are operated in parallel for enhanced signal to noise performance.

Power Supply: An external power supply is used. The required voltage is between 6V and 9V.

Front-panel elements:

A power on/off switch with LED.

An input selection switch.

Back-panel elements:

Analog outputs on XLR and RCA connectors.

Digital inputs (one RCA and one Toslink connector).

External power supply connector.

Two toggle switches for output level setting.

Specifications

Power

External power supply, requirement is 6 to 9V

1050mA at 6V, 700mA at 9V

Size

Depth: 16,5 cm

Width: 10,5 cm

Height: 6.5cm

Available Color

Silver

Spurious components (including harmonics)

At 0dBFS input level, maximum output level, 1kHz, all components at less than -120dBr

At 0dBFS input level, maximum output level, 4kHz, all components at less than -115dBr

Crosstalk

Better than 120dB, 20Hz-20kHz

Digital Input

(1) RCA connector

(2) Toslink connector

Word-length up to 24 Bits

Supported sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Analog Outputs

(1) RCA connector

(1) XLR connector

Frequency Responses

Fs=44.1kHz, 0Hz-20kHz:within+/-0.25dB

Fs=88.2kHz, 0Hz-20kHz:within+/-0.25dB

Fs=88.2kHz, 0Hz-40kHz:within+/-0.8dB

Fs=176.4kHz, 0Hz-20kHz:within+/-0.25dB

Fs=176.4kHz, 0Hz-40kHz:within+/-0.8dB

Fs=176.4kHz, 0Hz-80kHz:within+/-2.5dB

Total Harmonic Distortion plus Noise (THD+N)

-116dBr (0.00016%) at -3dBFS

-125dBr (0.000056%) at -40dBFS

-125dBr(0.000056%) at -70dBFS

Synchronization

Supported sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz

XLR Output Levels

0dBFS sinewave input

7.5Vrms, +19.7dBu

2.3Vrms, +9.7dBu

0.75Vrms, -0.3dBu

0.23Vrms, -10.3dBu

RCA Output Levels

0dBFS sinewave input

3.75Vrms, +13.7dBu

1.15Vrms, +3.7dBu

0.375Vrms, -6.3dBu

0.115Vrms, -16.3dBu

Linearity

At 0dBFS to -120dBFS input level: less than ffl0.4dB deviation from ideal
