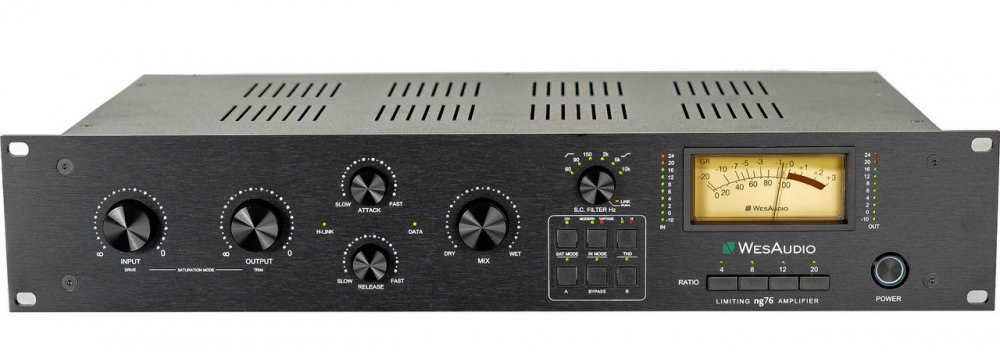

WesAudio ng76 Fet
MPN #ng76
Fully analog FET compressor with 24dBu of headroom and digital recall
Next generation FET compressor with digital recall and automation
FET compressors have been an essential tool in recording studios for over 50 years. Its distinctive sound and reliability have made it a go-to for producers and engineers around the world. The 76-style FET compressor has left its mark on countless hit records which has helped to establish its reputation as a reliable and versatile tool in the recording technology. We have improved this design, creating a whole new level of versatility with seamless DAW integration - We present ng76 - fully analog FET compressor with digital recall.
Features
100% analog FET compressor with 24dBu of headroom2 x mono-channel devices can be linked together through dedicated softwareClassic lightning speed compression style based on WesAudio Beta76 designFlexible DAW/Live plug-in control for instant recallMIX knob for parallel compressionCarnhill Transformers (input and output)Saturation mode - Special saturation / clipping mode based FET circuitAll ratio combinations including ALL BUTTON MODE!Modern and Vintage modes to support two 1176 revisions (F & G)Two independent side chain EQ circuitsTHD - total harmonic distortion with LOW and HIGH settings based on the FET circuit
Specifications
Attack time: 20 us - 800 us
Release time: 50 ms - 1100 ms
Compression ratio: 4:1; 8:1; 12:1; 20:1; all button mode and all combinations True Bypass
SC High Pass filter: 60,90,150Hz
SC High Shelf filter: 2KHz, 5KHz, 10kHz
Output impedance: 50 ohm
Frequency response: 20Hz to 20kHz (+/- 1dB)
Signal to noise ratio SNR: SNR >83dB
Max signal level: +24dBu
THD+N MIN: 0.2%
Noise floor: -95dBu
Power consumption: 8W
Dimensions: 88x483x235mm
Weight: 6 kg

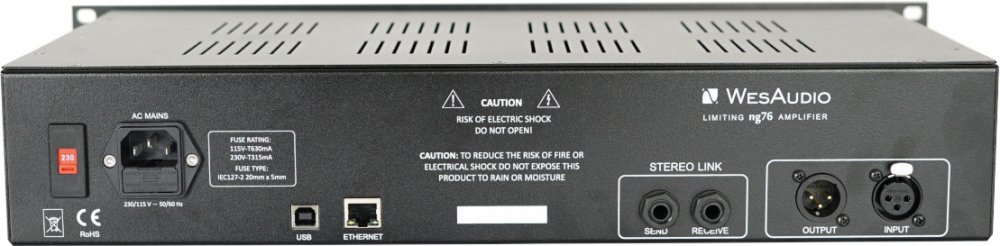

Balanced output and input:
Case Rack: 2U
