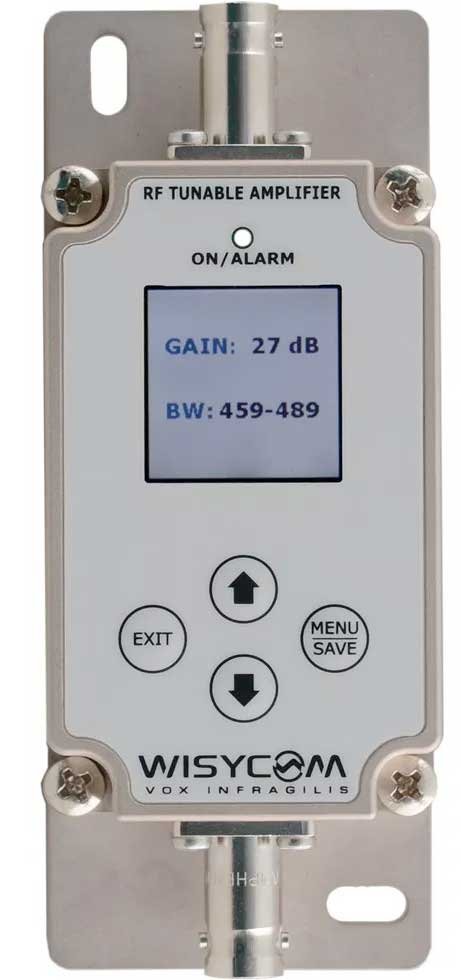

Wisycom BFA - BNC connector, Filter 1

$919.00

Save 10%, MSRP $1021.00
Free shipping in Canada. Conditions

BFA is a wideband active amplifier with remote controlled filters. BFA integrates a unique bank of filters along with a low noise amplifier.



Filters and gain can be easily setup locally thru a 4 key navigation buttons and a TFT display or remotely with a data connection on the same RF coaxial cable.
Using the latest Wisycom filter technology, BFA gives a full control of RF zones and allows to build flexible and remote controllable antenna systems.

Features

  • Huge reception band: 410-1300 MHz
  • Remote controllable thru coax cable
  • RF gain from -12 to +27 dBu (1 dB step)
  • Easy configuration thru a TFT display
  • Tunable filter for interference control
  • Antenna off for RF zone disabling
  • Fixed band saw filter
  • Pass thru DC selectable for device cascading
  • 3 High Pass & 3 Low Pass filters
  • Waterproof with gasket sealing
  • Specifications

    Frequency ranges: 410 ÷ 1300 MHz
    Filter range:
  • Tunable: 410 ÷ 730 MHz (UHF), 40MHz of BW
  • Fixed: 940 ÷ 960 MHz or 1240 ÷ 1260MHz
  • Selectable band pass filter: HP 410/470/510 MHz, LP 600/700/810 MHz (other see filter option)
  • Connector: N or BNC
    Impedance: 50
    Booster Gain:
  • -12 ÷ 27 dB typical (1 dB step selection)
  • 0.8 dB attenuation (bypassed) and RF OFF function
  • Booster Gain flatness: ± 1 dB, in the whole working window
    Display: TFT - transflective (176 x 176 pixels, RGB)
    Power supply: +12 V, 100mA
    Weight: 250 g
